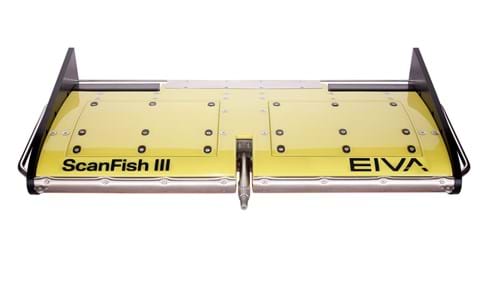

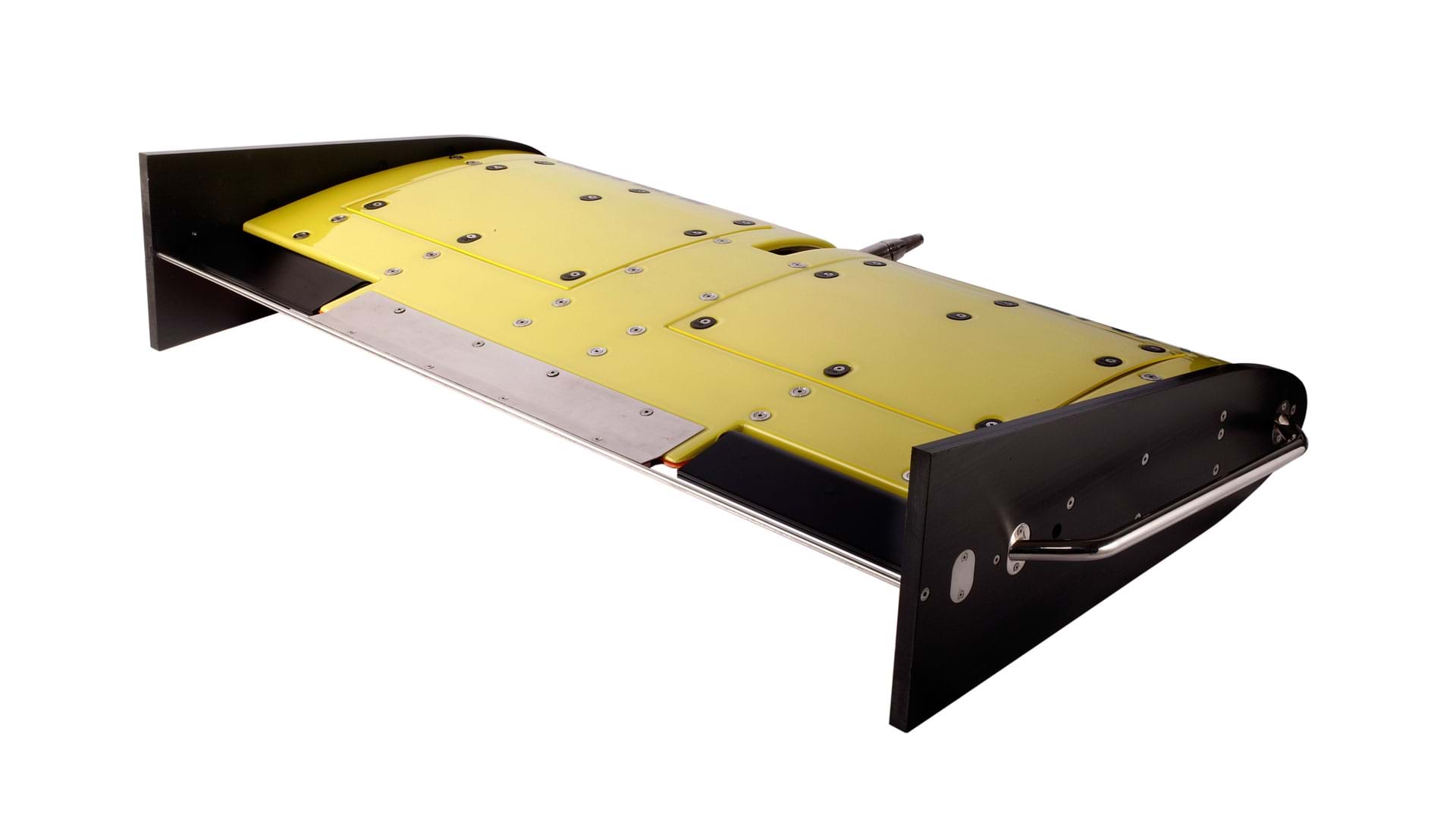

ScanFish Rocio

Supplier:
EIVA
Product no :
0100111

Multi-purpose ROTV for oceanographic surveys

The EIVA ScanFish Rocio is a multi-purpose ROTV solution covering a wide variety of oceanographic survey disciplines. It has a high payload, allowing you to fit several different pieces of equipment.

In other words, this versatile platform will meet your specific needs and streamline your survey operations, saving you time and money by combining all survey tasks in one flexible solution.

Please note: The webshop price is excluding shipping fee. An EIVA employee will contact you when we receive your request to finalise all details.

You already have products in your My EIVA basket

This product cannot be added to your basket as you already have products in your My EIVA basket.

111,490.00excl VAT, excl shipping fee
Get in touch
Delivery time: To be confirmed upon order

Key features

  • Cutting a long survey story short: What you get

    Cutting a long survey story short: What you get

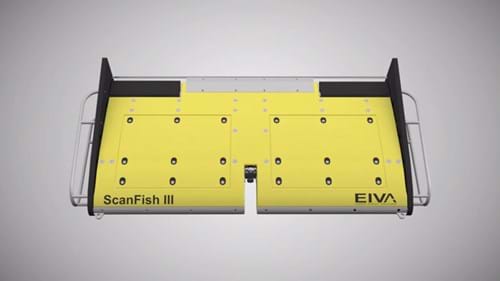

    ScanFish Rocio is a multi-purpose ROTV for oceanographic surveys.

    Learn more

    Cutting a long survey story short: What you get

    ScanFish Rocio is a multi-purpose ROTV for oceanographic surveys allowing you to combine all survey tasks in one flexible solution

    A multi-platform covering all your needs
    ... through a high payload allowing you to fit numerous types of survey equipment

    Easily adjusted operation pattern
    ... through the combination of three different operation modes

    Profiling of the entire water column
    ... through the possibility of choosing an adjustable V-curved undulation path

    More time-efficient surveys
    ... through underway acquisition and continuous processing of real-time data

    Monitoring and complete control
    ... through the user-friendly ScanFish III Flight software

    A long service life
    ... through quality material and easily replaceable wear parts

    Reduced risk of damages
    ... through robust design and an intelligent anti-collision feature


    Case study

    How the ScanFish ROTV solution can increase data coverage and efficiency of data acquisition during waste water monitoring surveys

    The City of San Diego looked to the ScanFish Rocio model in EIVA’s ScanFish ROTV product line as a means of increasing data coverage and quality while at the same time decreasing vessel time.

    Read the full case study


  • Adaptable operation pattern

    Adaptable operation pattern

    ScanFish Rocio's pattern in the water column is easily adjusted to ensure well-founded results of the survey task at hand.

    See videos

    Adaptable operation pattern

    The ROTV has three operation modes and an intelligent anti-collision feature

    Its pattern is therefore easily adjusted to ensure well-founded results of the survey task at hand.

    The undulation operation mode allows for profiling of the water column in a V-curved path at a steady velocity and thus even data acquisition.

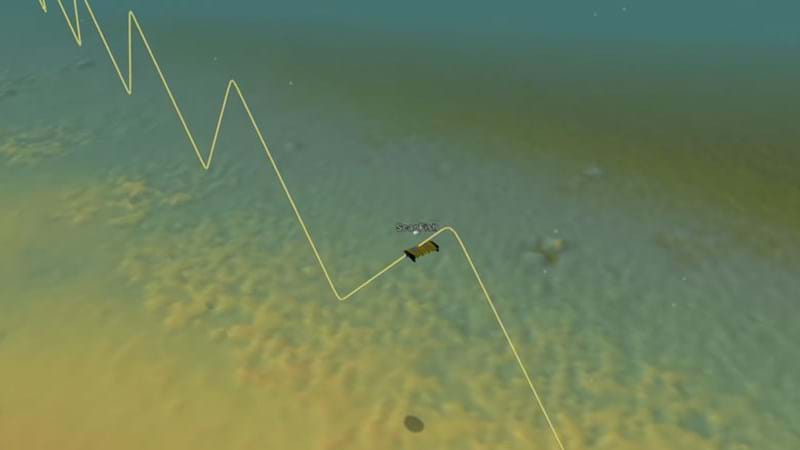

    Undulation mode of the ScanFish Rocio ROTV

    Undulation mode of the ScanFish Rocio ROTV

    Adding to this the possibility of enabling either terrain-following or fixed depth mode, you are in complete control of the position of the vehicle and can at all times adjust it to fit your needs.

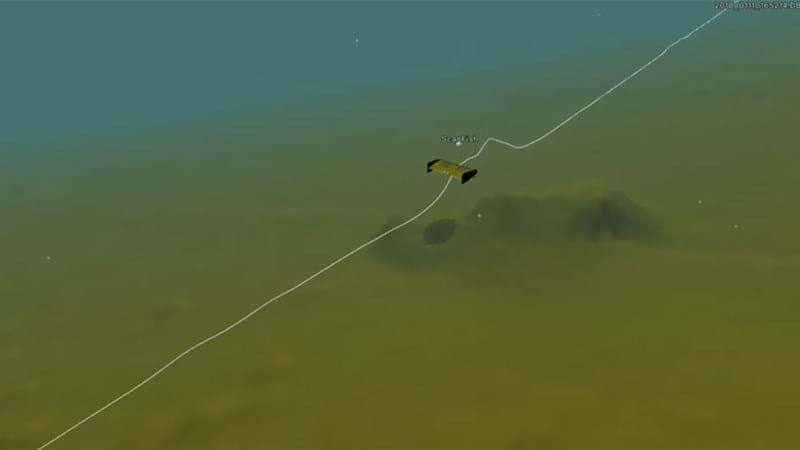

    Terrain-following mode of the ScanFish Rocio ROTV

    The ScanFish Rocio ROTV can be set to automatically follow the seabed in the ScanFish Flight software

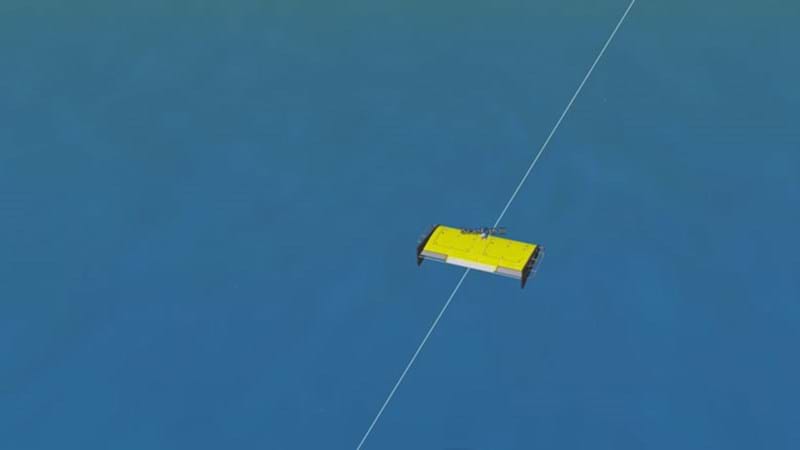

    Fixed depth operation mode of the ScanFish Rocio ROTV

    It is also possible to set the ScanFish ROTV to operate at a fixed height from the seabed via the ScanFish Flight software

  • Components and optional extras

    Components and optional extras

    The ScanFish Rocio standard package combined with the optional extras constitute a turn-key solution.

    Get all details

    Components and optional extras of the ScanFish Rocio package

    The ScanFish Rocio standard package combined with the optional extras constitute a turn-key solution.

    ScanFish Rocio is available with a wide range of standard components and optional extras that are required to constitute a turn-key solution. From topside unit to subsea cable termination, we offer you all the necessary components for an optimal solution for any oceanographic survey.

    Components

    EIVA ScanFish Rocio
    Including altimeter, motion and depth sensors

    Payload connectors, 6 subcons (RS232/422/485/analog/digital)

    Prepared for 6 internal payload compartments

    Multiplexer – payload data available as virtual COM ports

    Subsea cable termination
    Stainless steel tow termination point for mounting on coax cable

    Deck cable
    30 m

    ScanFish - Power & communications topside unit
    2U rack unit 19” containing power supply and communications, depth: 35 cm, weight: 7 kg

    Case
    Heat-treated, water-resistant plywood case for transport and long-term storage, 158 kg, B195xD104xH84 cm

    EIVA ScanFish III Flight control and monitor software
    Data output: cable counter, basic ROTV status (NaviPac format), depth and altimeter (NaviScan format)
    Requires minimum (with standard components): dual core Intel, 4 GB RAM, 100 GB 7200rpm HDD, Windows 7 Pro

    Optional extras

    3D steering
    Hardware solution which introduces horizontal movement control capabilities

    EIVA NaviPac/NaviEdit software
    Navigation information and positioning calculations for advanced survey planning

    EIVA NaviModel software
    Data modelling, visualisation and reporting

    Pinger
    RJE International, Inc. ULB-362B, excl tracking

    USBL
    Positioning System    EdgeTech ORE BATS

    ROTV cradle
    For deck mounting, incl tarpaulin

    EIVA OceanEnviroTM winch system

    PC

    Monitor

    Tow cable
    Choose from a variety of faired cable options to further reduce drag of your ROTV system

  • User-friendly control and monitoring software solution

    User-friendly control and monitoring software solution

    All ScanFish models come with the ScanFish Flight software, which is an easy-to-use software system allowing for control and monitoring of the ROTV.

    See it in action

    User-friendly control and monitoring software solution

    All ScanFish models come with the ScanFish Flight software, which is an easy-to-use software system allowing for control and monitoring of the ROTV.

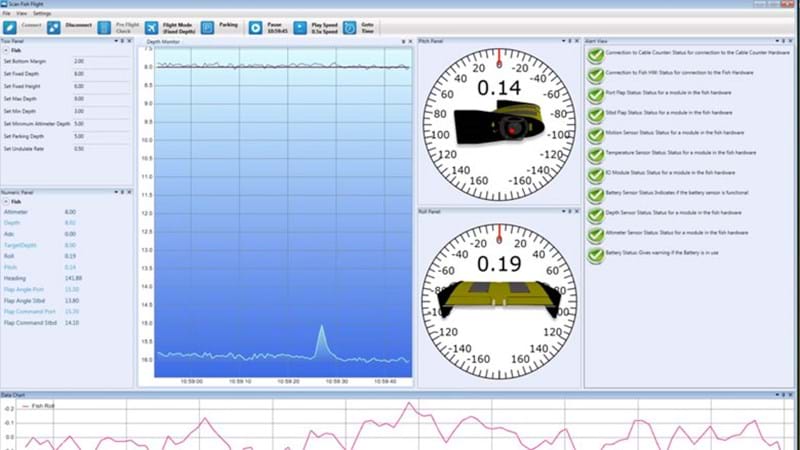

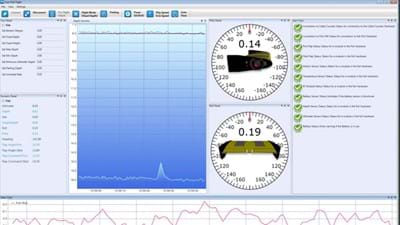

    Controlling the ROTV's movements in ScanFish III Fligh software

    Controlling the ROTV's movements in ScanFish III Flight software

    Only a minimum of training is required to prepare the crew to operate the ROTV, which means you will be ready to set sail within a short period of time. Moreover, there is no risk of wasting time on difficulties resulting from a complicated software user interface.

    Via the intuitive interface of ScanFish Flight, you are in complete control of the position of the ROTV by defining its height compared to the seabed. At the same time, you can monitor its position in the water, and an alert panel will warn you of any irregularities.

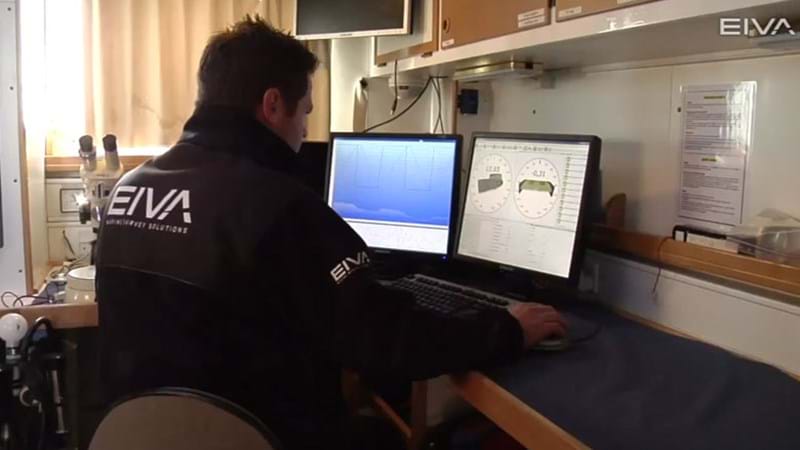

    ScanFish III Flight software in action

    ScanFish III Flight in action

    On-site calibration

    A pre-flight feature allows for testing and calibration of the ScanFish ROTV on-site prior to deployment, promising you the highest possible performance and data quality.

    Recording of flight data

    Acquired ROTV data can be analysed by means of a flight recording feature. It enables you to play back all flights and, for example, quickly locate the cause of any irregularities, thus enhancing the quality of your results and saving survey time.

    Automatic control of winch

    ScanFish Flight can be set up to control the winch towing the ScanFish ROTV, thereby ensuring an optimal cable length adjusted to the movements of the ROTV. This is especially relevant for the ScanFish Konia and ScanFish Rocio models.

  • Robust product with a long service life

    Robust product with a long service life

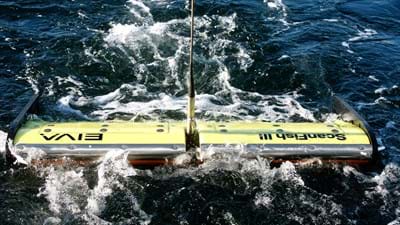

    The practical design of the ScanFish models makes them so robust that they can be deployed in rough weather.

    Learn more

    Robust product with a long service life

    Quality materials and easily replaced wear parts characterise the ScanFish range and contribute to a high ROI through a long service life

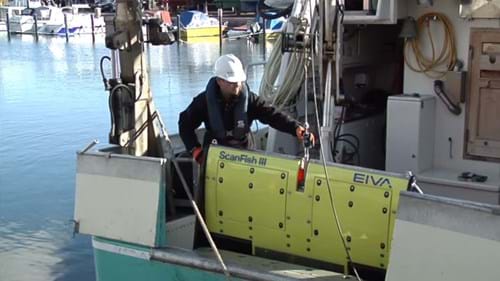

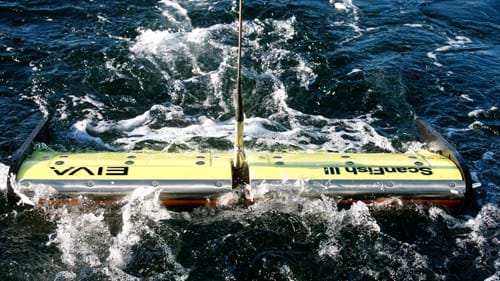

    The practical design of the ScanFish models makes them so robust that they can be deployed in rough weather. This saves time as the risk of downtime is vastly reduced. Two side plates with bars, which also function as handles, protect the body and facilitate handling, thus reducing the risks posed to the ROTV in the water and ensuring the safety of the crew during deployment and recovery.

  • Operator courses: repair, maintenance and practical training

    Operator courses: repair, maintenance and practical training

    EIVA hosts hardware operator courses delivering you the skills and knowledge you need to ensure you get the most out of you ScanFish ROTV.

    Learn more

    Combining hands-on practice with expert guidance and advice.

    EIVA hosts ScanFish operator courses designed to deliver participants the skills and knowledge to ensure they get the most out of their EIVA equipment.

    Under guidance from our expert engineers, these operator training courses deepen your knowledge and understanding of the ScanFish ROTV, improve your practical operator skills and enhance your technical abilities to service and maintain your ScanFish. Featuring classroom work, ​technical workshops covering hardware repair and maintenance, as well as practical training at sea, EIVA ScanFish operator courses provide a comprehensive platform for expanding your competences.

    If you’re interested in a ScanFish operator training course, reach out to let the EIVA team know. We will update you on upcoming hardware operator courses sailing your way.

  • Avoid obstacles more smoothly than ever

    Avoid obstacles more smoothly than ever

    This autopilot flight mode uses your vessel’s echo sounder data as an early warning system to avoid obstacles while keeping sensors stable.

    See it in action

    Vessel-Aided Terrain Follow mode

    Avoid obstacles more smoothly than ever through automated real-time calculations – this flight mode uses your vessel’s echo sounder data as an early warning system to avoid obstacles while keeping sensors stable.

    Controlling the ROTV's movements in ScanFish III Fligh software

    Video showing the ScanFish Vessel-Aided Terrain Follow mode in action, making the ScanFish avoid steep obstacles on the seabed more smoothly than it would have if it were using only the ScanFish altimeter sensor for obstacle avoidance – thereby achieving stability for optimal sensor performance

    The ScanFish Vessel-Aided Terrain Follow mode optimises your vertical runlines based on a DTM (online and/or pre-surveyed). The main advantages are…

    It ensures smooth obstacle avoidance, so your data collection isn’t disturbed by any sudden movements of the ROTV, which could otherwise occur if there is a large, steep obstacle, such as a boulder. This is because the altimeter sensor onboard the ScanFish would register the obstacle when closer to it, causing the ScanFish to move quickly out of the way to avoid it. On the other hand, with the Vessel-Aided Terrain Follow mode, the ScanFish can react ahead of time thanks to an early warning from the DTM, and therefore you have the option to make it do avoid obstacles more smoothly over time.

    You minimise risks to your ROTV by not only reliably predicting obstacles and avoiding them (as the ScanFish ROTV already does) but also customising how you avoid them, so your ScanFish ROTV’s vertical steering is tailored to your specific ROTV configuration (with this new mode, you can customise the area in which obstacles are avoided and the slope with which the ROTV avoids them.

    ScanFish and NaviSuite software in action

    The area highlighted in yellow is the corridor in which objects are considered relevant obstacles to be avoided using the Vessel-Aided Terrain Follow mode – and the two yellow spheres below the ScanFish model show the correction to the vertical route

    Stay safe with a failsafe

    This new steering mode is doubly designed to avoid any harm to your ScanFish. The EIVA team has equipped it with a failsafe function for the unlikely case of a malfunction in the setup causing your ScanFish to receive erroneous data from the synthetic altimeter calculated by NaviPac. An error in the synthetic altimeter can occur for example if you are using a pre-surveyed DTM which is outdated, as a new obstacle has appeared since then. In such a case, the priority will always be given to the minimum height registered by the ROTV altimeter mounted on your ScanFish.

    Easy integration with your ScanFish ROTV

    This automated steering mode is available for all ScanFish systems. In addition to your vessel and any model of ScanFish ROTV, this steering mode uses the following components…

    • Multi-beam echo sounder on the vessel which is towing the ScanFish (optional as you can alternatively use pre-surveyed DTMs):
      • Acquires seabed data to create a real-time DTM
    • NaviSuite Kuda ProEIVA’s hydrographic survey software solution (alternatively, if using a pre-surveyed DTM, you can use NaviPac Pro or NaviPac Single User):
      • Collects multi-beam echo sounder data and creates a DTM in real time – or displays a historical DTM
      • Calculates your ROTV’s optimal vertical route based on the DTM and your settings for obstacle avoidance
      • Inputs synthetic altimeter values to your ScanFish Flight software so you follow this route

Specifications

ROTV DIMENSIONS
Length
0.90 m
Width
1.80 m
Height
0.26 m
Weight air/water
75/0 kg
PERFORMANCE
Depth rating
Max 400 m
Operational depth
Up to 400 m – Depends on ScanFish configuration, operation speed and winch configuration – Use of automatic operation modes requires automatic winch control
Undulation range
Without winch control: 100 m span – With winch control: 0-400 m (full depth)
Towing speed
4-10 kt
Dive/climb speed
0-2 m/sec
Anti-collision climb
3 m/s = 45° at 6 kt
Vertical position precision
0.2 m
Roll precision
0.5°
Max slope, terrain-following mode
20°
Payload
50 kg – depending on equipment volume
Bandwidth
Up to 7 Mbit/s with 1,000 m cable
EIVA ScanFish III Flight bandwidth usage
50 Kbit/s
