Navigation and positioning

NaviPac provides positioning and navigation features for surface and/or subsea vehicles. It comes in four variants:

  • NaviPac Pro, the variant you see here
  • NaviPac Single User, which offers all the features of NaviPac Pro, limited to a single network/remote client and a single subsea object
  • NaviPac Lite, which is tailored to vessel-based surveys with a single beam echo sounder
  • NaviPac Tug, which is dedicated to the tug boat during anchor handling operations, rig moves and similar jobs

With NaviPac Pro, you get the most elaborate variant of the three and can thus benefit from the entire range of features offered by NaviPac for surveys carried out with multi-beam echo sounders, side-scan sonars and/or lasers.

excl VAT, excl shipping fee
Get in touch
Delivery time: A few hours

For subscription licences, you will get your purchased licence by email. For permanent licences, you will get a soft licence via email until you receive a physical dongle, which is sent once payment is received. For all orders paid by invoice, order processing (and thus estimated delivery time) will be initiated when EIVA has validated your details.

Key features and benefits

  • General visualisation

    General visualisation

    NaviModel and NaviPac share the same 3D engine, and therefore the same powerful 3D visualisation features. Data can be visualised in 2D, 3D, side view or by time.

    Learn more

    General visualisation features

    NaviModel and NaviPac share the same 3D engine, and therefore the same powerful 3D visualisation features. Data can be visualised in 2D, 3D, side view or by time.

    3D seabed terrain

    Seabed terrain can be visualised in a 3D environment.

    3D seabed terrain

    Multiple Map Views

    Multiple Map Views are available.  Each individual Map View window can be configured separately to display only the information required.

    Background Maps

    Background Web Map Service (WMS) maps can be displayed.

    Background Maps

    Import 3D models

    3D models can be imported into NaviModel (drag and drop into the Map View window).

    Import 3D models

    Link 3D models to live objects

    3D models can be linked to any live objects (Vessel, ROV, Scanfish etc).

    Link 3D models to live objects

    2D, 3D and side-view displays

    2D, 3D or Side views allows the user to quickly change the view facilitating better data interpretation.

    3D, 2D and side-view displays

    Visibility Slider

    Visibility slider allows users to compare different DTM’s quickly.  This enables comparison over time or between different data processing methods.

    Visibility slider

    Control colours, lights, details

    DTM light and palette settings can be changed at any time.

    Control colours, lights, details

    Profile views

    The following profile views are available:

    • Cross Profile
    • Long Profile
    • Quick Profile
    • X & Y Axis Profile
    • View Profile
    Profile views

    Create fly-through videos

    Fly-through videos can be created for project or promotional presentations.

    Create fly-through videos
  • Navigation and routes

    Navigation and routes

    NaviPac is an integrated navigation and data acquisition software solution that includes surface and subsea navigation, route and waypoint planning, live tracking and piloting.

    Learn more

    Navigation and routes features

    NaviPac is an integrated navigation and data acquisition software solution that includes surface and subsea navigation, route and waypoint planning, live tracking and piloting.

    Live position of multiple objects

    NaviPac Helmsman’s Display 4 (based on the same core as NaviModel) supports display of vehicle data (main vessel, ROV, ROTV, remotes etc) based on the NaviPac data feed. The data can be shown graphically in multiple map views.

    Live position of multiple objects

    AIS tracks

    All variants of NaviPac supports integration with AIS receivers. The data is read into NaviPac and can be shown in a dedicated AIS window and overlaid in the HMD. We perform an even read and utilise vessel dimension information.

    AIS tracks

    Display north-up, heading-up, route-up

    Each Map View can be designed and controlled individually when it comes to content, overlays and layout. Map Views can be 2D, 3D or side-views, and orientation can be user defined, north-up, vehicle up or line up.

    Display north-up, heading-up, route-up

    Manual runline drawing

    NaviPac supports a series of runline and waypoint formats including our own RLX/WPT format, ad generic ASCII readers. You can also draw lines and points directly in the Map View.

    Manual runline drawing

    Manual waypoint drawing

    NaviPac supports a series of runline and waypoint formats including our own RLX/WPT format, ad generic ASCII readers. You can also draw lines and points directly in the Map View.

    Manual waypoint drawing

    Various runline patterns (parallel, cross, star)

    You can inherit multiple lines based on the base line defined, such as parallel or cross lines to get an optimal route plan.

    Various runline patterns (parallel, cross, star)

    Vehicle control panel for multiple vehicle runlines and display DOL

    Assignment of lines and waypoints are handled through the dedicated Vehicle Control view, as you may control multiple vehicles simultaneously. Each controlled vehicle will be available as distance offline indicator (DOL/DCC) and various runline information (along line, target ETA etc.).

    Vehicle control panel for multiple vehicle runlines and display DOL

    Auto-coverage runlines based on sonar

    HMD 4 includes a tool for automated runline generation for MBE site surveys. Initially the surveyor defines the first runline, and then HMD will the continuously calculate the outer limit for the line based on coverage and density requirements, and thus automatically calculate the next line. This tool is very suitable e.g., for vessel mounted solution for NaviSuite Kuda or for ASV/USV operations.

    Auto-coverage runlines based on sonar

    Automatic run-in for next runline

    When using the auto-coverage tool you may also introduce the automatic run-in. The system will be based on vessel turn capabilities and calculate the shortest route to the next line.

    Automatic run-in for next runline

    Distance to waypoint

    Waypoints are handled in a similar manner to runlines, as assignment of the waypoint is done in the Vehicle Control View. Hereafter, an artificial runline is created from the vehicle to the point and NaviPac monitors the range/bearing to the destination. and can a,.o. feed that into autopilots and DP systems.

    Distance to waypoint

    Multi-object live range/bearing

    In the HMD you may pair any live vehicle (e.g. Vessel and ROV) and monitor the range/bearings between them for online display as live data and range information on Map Views.

    Multi-object live range/bearing

    Auto-pilot (NMEA) control

    When using runlines and waypoints you may connect NaviPac to autopilot systems using e.g., standard NMEA formats and pass cross-track error and destination waypoints on to the equipment.

    Auto-pilot (NMEA) control

    DataUnits

    NaviPac 4.2 supports use of other data units in addition to metric. The unit is selected in the project settings and all definition fields are then assumed to be in the selected data unit.
    HMD will follow the selected data unit, but you may, by using a simple keystroke, toggle between metric and data unit if required.
    Data recording will still be metric to guarantee data integrity, but data outputs can be selected freely.

    DataUnits
  • Sensor interfacing and recording

    Sensor interfacing and recording

    Many different sensors can be interfaced and integrated in both NaviScan and NaviPac.

    Learn more

    Sensor interfacing and recording features

    Many different sensors can be interfaced and integrated in both NaviScan and NaviPac.

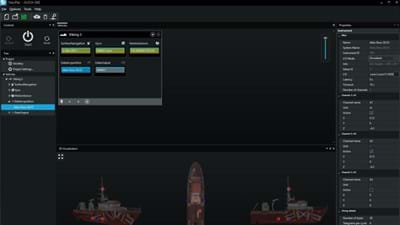

    Surface positioning and motion (GPS, Gyro, IMU)

    Setting up an entire vessel based project in NaviPac is easy performed using intuitive graphical definition tools. The video covers basic project definition, geodetics and vessel navigation setup.

    Surface positioning and motion (GPS, Gyro, IMU)

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    Setting up remote and subsea vehicles is done in a similar manner to the main vessel – easy and intuitive. Adding instruments, positioning sources (transponders, INS, LBL etx) and defining weighting and Kalman filter settings is possible.

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    SBE - single beam echo sounder

    Single beam echo sounders and other single source data suppliers can easily be interfaced in NaviPac, either via standard drivers or enhanced user-configurable drivers. Data will be available for display in both Helmsman’s Display and DataMon. Single source data can be shown as points clouds in the HMD – and you can automatically derive DTMs out of it.

    SBE single beam echo sounders
  • Sensor processing

    Sensor processing

    NaviEdit can be used to recalculate data very quickly and where our sensor processing takes place. Here we change offsets, C-O’s, mounting angles, apply tide, apply SVP, de-spike sensors, improve object positioning, Kalman filtering, remove swell etc.

    Learn more

    Sensor processing features

    NaviEdit can be used to recalculate data very quickly and where our sensor processing takes place. Here we change offsets, C-O’s, mounting angles, apply tide, apply SVP, de-spike sensors, improve object positioning, Kalman filtering, remove swell etc.

    Surface positioning and motion (GPS, Gyro, IMU)

    NaviEdit Header Editor allows the user to check the vessel setup.

    NaviEdit Data Editor allows the user to view and QC sensor data via a series of graphical displays.

    Surface positioning and motion (GPS, Gyro, IMU)

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    NaviEdit Header Editor allows the user to check an ROV setup.

    NaviEdit Data Editor allows the user to view and QC sensor data via a series of graphical displays.

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)
  • Point clouds

    Point clouds

    We can create point clouds from sonar and laser systems or from historical XYZ files. Within NaviModel, there are many ways to visualise, edit and optimise point data.

    Learn more

    Point cloud features

    We can create point clouds from sonar and laser systems or from historical XYZ files. Within NaviModel, there are many ways to visualise, edit and optimise point data.

    Import XYZ files

    XYZ files can be imported as DTMs, Point Clouds, or TIN Models.

    Import XYZ files

    Point clouds with RGB and Intensity

    By default, point clouds can be visualised as a solid colour or as a depth palette. However, if source files contain RGB or Intensity values, we can choose to colour the point cloud with this information instead.

    Point clouds with RGB and Intensity

    Manual cleaning

    A selection window or a polygon can be used to manually clean point clouds.

    Manual cleaning

    Import LAS files and display as RGB or Intensity

    LAS files can be imported as DTMs or as point clouds.

    Point clouds can be displayed as one solid colour, as RGB values or as Intensity values.

    Point Cloud Registration (Quickstitch)

    If point clouds are misaligned, we can use Point Cloud Registration to align them. We accomplish this by first digitising common features, and then performing a least-squared adjustment that moves one point cloud to another.

    Point Cloud Registration (Quickstitch)

    Large Point Clouds

    Large Point Cloud Viewer supports Point Clouds of virtually unlimited size.

    Large Point Clouds
  • Engineering/Construction Design

    Engineering/Construction Design

    Within NaviModel, we can design trench or rock-placement profiles or import existing engineering drawings from various sources (AutoCAD).

    Learn more

    Engineering/Construction Design features

    Within NaviModel, we can design trench or rock-placement profiles or import existing engineering drawings from various sources (AutoCAD).

    Find Rocks

    This tool analyses DTMs to identify rock events.

    Find rocks

    Trench design

    In NaviModel theoretical trench profiles can be designed and visualised inside a 3D environment.

    If available AutoCAD engineering drawings can also be used.

    Trench design

    Rock-placement design

    In NaviModel theoretical rock-placement profiles can be designed and visualised inside a 3D environment.

    If available AutoCAD engineering drawings can also be used.

    Rock-placement design
  • Live subsea construction

    Live subsea construction

    NaviSuite Uca is a configurable and integrated software solution for dredging, excavation, exclamation and similar – supporting bucket, clamshell and suction dredgers.

    Learn more

    Live subsea construction features

    NaviSuite Uca is a configurable and integrated software solution for dredging, excavation, exclamation and similar – supporting bucket, clamshell and suction dredgers.

    Material removal from DTM (dredging) - bucket

    NaviSuite Uca supports several solutions for boom/stick excavation using both bucket and clamshell. The solution can e.g. be based on Trimble, eTrack or custom sensors for positioning each moving component.

    Material removal from DTM (dredging) - bucket

    Material removal from DTM (dredging) - wire clamshell

    NaviSuite Uca supports various wirecrane solutions (e.g. Henngstler, Trimble and Liebherr) for excavation. DataMon interfaces the cable counters and will, in a calibrated manner, use the information to position clamshell and opening angle of the clam.

    Material removal from DTM (dredging) - clamshell

    Material addition to DTM (rock placement)

    NaviSuite Uca supports rock and material placement for both bucket and clamshell solutions. The system uses semi-automatic methods, as the operator presses a button and uses a foot-pedal to mark where material is placed. Uca will then add the corresponding material to the model based on a cone figure.

    Material addition to DTM (rock placement)

    Reporting

    During an operation, NaviSuite Uca gives fast and reliable reports on the progress based on both live colour coding of the terrain and volume reporting. The result can be brought into NaviModel to make a final report project and use this as documentation and handout, as illustrated here where the entire operation was performed in one process without any second passes.

    Reporting
  • Line and track tools

    Line and track tools

    We have a large range of tools to create, modify, graph and export lines that are digitised within NaviModel. Digitised lines are multipurpose and are used both online and offline. Some examples of digitised line usage include controlling pipelines and seabed marker positions, creating boundaries, engineering designs and runlines.

    Learn more

    Line and track tool features

    We have a large range of tools to create, modify, graph and export lines that are digitised within NaviModel. Digitised lines are multipurpose and are used both online and offline.

    Modify lines

    Lines can be modified in many different ways.

    Line smooth

    If required, the entire length of the line can be smoothed in XYZ.

    Line smooth

    Local smooth

    Local smooth tool allows you to concentrate on small line sections that require remedial action.

    Local smooth

    Convert waypoints to lines

    Waypoints can be converted to lines via the ASCii Importer.

    Convert waypoints to lines

    Compare lines

    Whilst we can always compare lines visually in the Map View window, sometimes it is better to create graphs for comparison.

    Compare lines
  • Eventing

    Eventing

    The many eventing features include auto-calculation of event types and an easy-to-use event tablet view.

    Learn more

    Eventing features

    The many eventing features include auto-calculation of event types and an easy-to-use event tablet view.

    Configurable event types, hierarchy, and properties

    Client and company specific event collections can be tailored to the activity undertaken.

    During EIVA Days Denmark 2018, we presented a major expansion to the functionality of camera based scanning.

    Configurable event types, hierarchy and properties

    Create events

    Events can be created quickly and are automatically placed onto a DTM.

    Tablet for fast event creation

    Using the eventing tablet view allows for quicker event creation. With the eventing tablet, you can quickly add all events, or customise which events to add with just a few steps.

    Tablet for fast event creation

    Create freespan and burial events

    Pipe and seabed markers are used to create freespan and burial events.

    This means that events and seabed markers always tie-in.

    Create freespan and burial events

    Recalculate events

    Events can be recalculated at any time.

    Recalculate events

    Export events

    User configurable templates can be created to export events in the format required.

    Export events

    Export nearest image and videos

    Images and videos can be exported for each event or for selected events.

    Export nearest image and videos

    Create pipetracker gap events

    Pipetracker gap events are created from continuous sections of rejected pipetracker data.

    Create pipetracker gap events
  • Videos and images

    Videos and images

    Video and still images that contain time stamps can be combined with other data sources in NaviModel.

    Learn more

    Videos and images features

    Video and still images that contain time stamps can be combined with other data sources in NaviModel.

    Drape images on digitised pipe

    Video images can be wrapped around an existing pipe or digitised line in the Map View window.

    Drape images on digitised pipe

    Play and control video

    Digital video acquired in external systems can be played and controlled inside NaviModel.

    Play and control video

    Synchronise video with track

    In NaviModel the track contains the date and time and must be synchronised with the video time to enable videos to play.

    Normally the video time and track time are recorded in the same time zone. However sometimes this is not the case and we need the option to change the video / track time so that video will play.

    Synchronise video with track

    Adjust video hue, brightness, contrast and gamma levels

    Hue, brightness, contrast and gamma levels can be adjusted to improve badly lit videos.

    Adjust video hue, brightness, contrast and gamma levels

    Display video images (Waterfall)

    Video images can be displayed as a vertical waterfall.

    Display video images (Waterfall)
  • Optional extra services and special offers

    Optional extra services and special offers

    EIVA offers a number of services for our NaviSuite software users.

    Learn more

    Optional extra services and special offers

    Get the most out of your software

    EIVA offers a number of services for our NaviSuite software users. These include:

    Also, we have a number of special offers:

Product comparison



NaviPac Lite

NaviPac Tug

NaviPac Single User NaviPac Pro
Interfacing



Surface navigation

Max 2 Max 2 x x

Gyro

Max 1 Max 1 x x
Motion sensor Max 1 Max 1 x x
DVL     x x
Underwater positioning: USBL, LBL and INS     1 object x
Remote positioning: GPS, remote systems   x 1 object x
AIS x x x x
Echo sounder etc. x x x x
Pipe and cable tracker     x x
Magnetometer     x x
Bathy sensor     x x
Annotation x x x x
Data output Max 1 x x x
GPS time synchronisation     x x
ATTU interfacing and time synchronisation x x x x
Multi-beam echo sounder, laser and sonar integration via NaviScan     x x
LiDAR navigation     x x
2D seismic streamer and tail buoy option       x
Rig move and anchor handling options       x

Calibration
Position fix x x x x
Gyro x x x x
Motion sensor x x x x
Remote gyro     x x
USBL     x x
DVL     x x

Display and tools
3D and 2D Helmsman's Display x x x x
Remote Helmsman's Display   Max 1   x
Real-time DTM (multi-beam echo sounder)      x x
Real-time data cleaning (multi-beam echo sounder)      x x
Real-time DTM (single beam echo sounder)  x   x x
Survey planning  x   x x
Runline usage x   x x
Barge lines       x
Great-circle/rhumb lines     x x
Line overlength       x
Enhanced data designer (DataMon) x x x x
Geodetic calculator x x x x
User-defined input x x x x
User-defined output     x x
Telemetry   x x x
Eventing x   x x
Distance shooting     x x
Collision detection   x x x
UNESCO depth calculations     x x
User-configurable alarm monitoring x x x x
Built-in simulator x   x x
Remote monitor       x
Remote master control       x

Maps
Geocoded images x x x x
Webserver interface (eg Bing) x   x x
ACAD etc x x x x
Vector drawings x x x x
WMS maps x x x x

Data recordings
Survey data recording x   x x
Black box recording x x x x
User-configurable data recordings x x x x
Multi-beam echo sounder, sonar and laser recording via NaviScan     x x
UKOOA seismic data (P2/94)       x

New features introduced with NaviPac 4
Comparison of DTMs     x x
Point cloud and multi-beam echo sounder data cleaning (spike shooting, histogram)     x x
Volume calculation     x x
Rock dump and trench design     x x
Live video viewing and recording     x x
Automatic runline coverage assist and run-in calculation     x x
Real-time point clouds x   x x
