Advanced 3D pipeline & cable route inspection software

The NaviSuite Nardoa is a cutting-edge, completely integrated 3D software solution for acquisition and processing of data during subsea pipeline and cable route inspections.

This proven, off-the-shelf software bundle allows you to save man-hours and money while delivering high-quality, thorough and comprehensive inspection results to your customers.

It encompasses the following software products – and can be upgraded with our NaviSuite Deep Learning option for high-performance, automatic data processing with both classification and segmentation of images and videos during subsea pipeline inspections.

  • NaviPac Pro Navigation & positioning
    Comprehensive ROV and vessel navigation information and positioning calculation.
  • NaviScanSonar data acquisition – The gateway to 3D
    Real-time visualisation of sonar and LiDAR data acquisition and eventing, enabling on-the-fly QC.
  • NaviEdit ProInspection data editing – Fixing all errors
    Editing of overall survey settings, raw sensor data and geodetic settings.
  • NaviModel Producer / 3D pipe option3D terrain modelling – Pipeline inspection in 3D
    Advanced automatic cleaning and digitisation of terrain and pipe or cable in a 3D environment, and registration of objects of interest (eventing).
  • NaviPlotChart production – Finishing the paperwork
    Easy creation of inspection charts, providing extensive overview of results
excl VAT, excl shipping fee
Get in touch
Delivery time: A few hours

For subscription licences, you will get your purchased licence by email. For permanent licences, you will get a soft licence via email until you receive a physical dongle, which is sent once payment is received. For all orders paid by invoice, order processing (and thus estimated delivery time) will be initiated when EIVA has validated your details.

Key benefits

  • Extensive inspection results

    Extensive inspection results

    NaviSuite Nardoa is the ideal solution if you have end-clients with high expectations.

    Learn more

    Extensive inspection results

    NaviSuite Nardoa is the ideal solution if you have end-clients with high expectations

    The software allows you to deliver high-quality inspection reports shortly after the inspection vessel arrives at port, as a paper report combining raw data and 3D models or displayed in a free 3D viewer.

    When we say ‘high-quality’...

    ... it covers highly accurate, extensive and thorough results that are easily comprehended, a key element being the possibility of 3D visualisation. In sum, your clients will get a sound decision-making basis in the work that follows the delivery of the inspection results.

  • Efficient workflow

    Efficient workflow

    You are ensured a fast and flexible workflow and inspection results of the highest quality.

    Learn more

    Efficient workflow

    You are ensured a fast and flexible workflow and inspection results of the highest quality, saving you time and money.

    Through the possibility of near-real-time data processing, you can produce preliminary reports and thereby carry out on-the-fly data quality control. This lets you know straight away if there is a need for recapturing and virtually eliminates the risk of insufficient or flawed data.

    Comprehensive tool applied throughout the inspection

    The software is applied throughout the inspection process, offering you a comprehensive and advanced tool, from video data providing an integrated view and eventing both during data acquisition and processing, to manual or automatic data cleaning and generation of digital models of seabed and pipe or cable in a 3D environment.

    Utilising raw data

    The NaviSuite Nardoa solution makes use of raw data throughout the workflow, offering you complete traceability and eliminating errors due to data conversion. This means that you can instantly compensate for data inconsistencies and sensor inaccuracies without having to step back in the process and you can export the data to any relevant third-party software.

  • References

    References

    NaviSuite Nardoa is used by subsea inspection specialists throughout the world.

    Learn about some of them

    NaviSuite Nardoa references

    DOF Subsea

    'By means of the S-CAN* feature, we have reduced the time spent on cleaning by more than 25 percent, and we obtain a far better overall result.'

    Lead Data Processor Per Norvald Boge

    Stattnet

    Norway's national main grid owner and operator

    'Two distinct advantages of NaviModel are that it is a good and comprehensible presentation tool and handles large data sets well.'

    Øystein Pettersen, Marine Operations

    CT Offshore

    'We use the S-CAN* feature on a daily basis when working with cable route inspection. It reduces the amount of manual work vastly, and we achieve a much better end result.'

    Senior Dataprocessor Thore Nellemann

    *S-CAN has since been replaced by the EIVA cleaning feature that comes free as part of NaviModel Producer, EC-3D.

  • General visualisation

    General visualisation

    NaviModel and NaviPac share the same 3D engine, and therefore the same powerful 3D visualisation features. Data can be visualised in 2D, 3D, side view or by time.

    Learn more

    General visualisation features

    NaviModel and NaviPac share the same 3D engine, and therefore the same powerful 3D visualisation features. Data can be visualised in 2D, 3D, side view or by time.

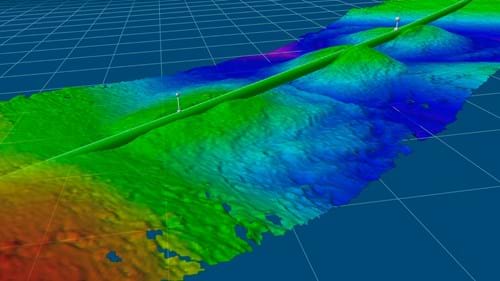

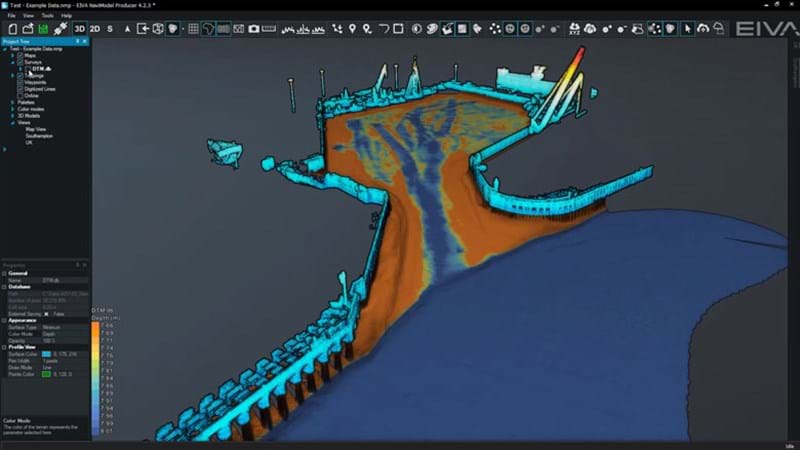

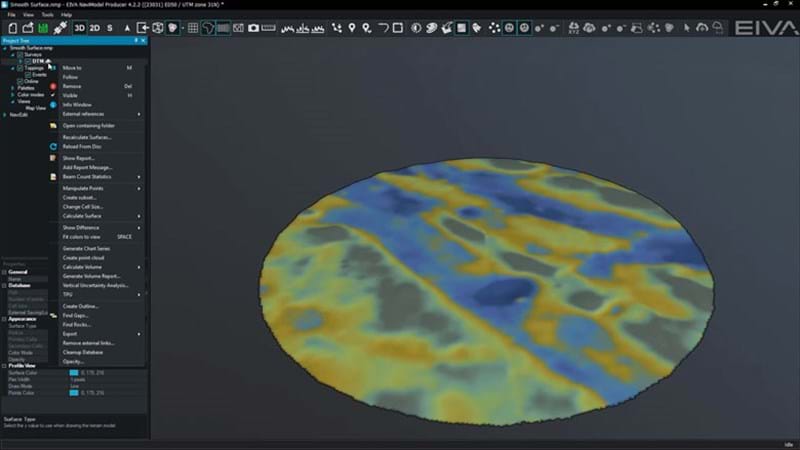

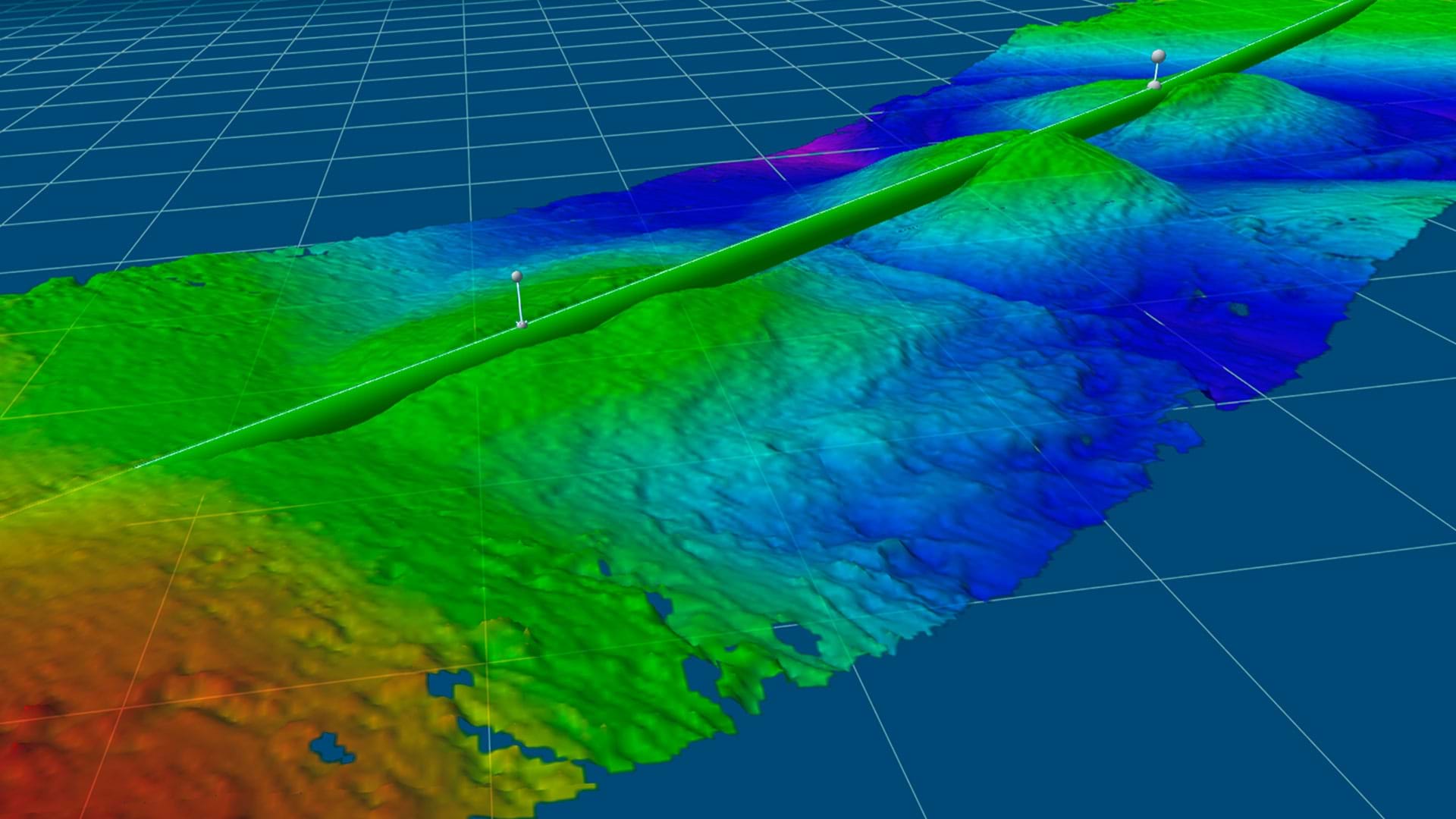

    3D seabed terrain

    Seabed terrain can be visualised in a 3D environment.

    3D seabed terrain

    Multiple Map Views

    Multiple Map Views are available.  Each individual Map View window can be configured separately to display only the information required.

    Background Maps

    Background Web Map Service (WMS) maps can be displayed.

    Background Maps

    Import 3D models

    3D models can be imported into NaviModel (drag and drop into the Map View window).

    Import 3D models

    Link 3D models to live objects

    3D models can be linked to any live objects (Vessel, ROV, Scanfish etc).

    Link 3D models to live objects

    2D, 3D and side-view displays

    2D, 3D or Side views allows the user to quickly change the view facilitating better data interpretation.

    3D, 2D and side-view displays

    Visibility Slider

    Visibility slider allows users to compare different DTM’s quickly.  This enables comparison over time or between different data processing methods.

    Visibility slider

    Control colours, lights, details

    DTM light and palette settings can be changed at any time.

    Control colours, lights, details

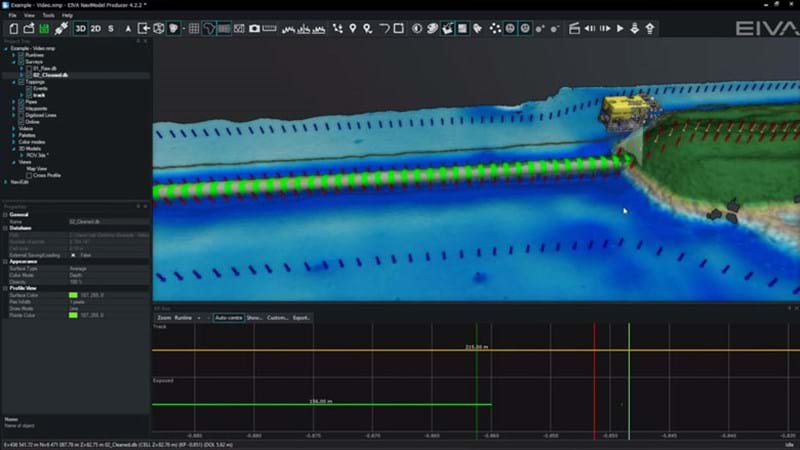

    Profile views

    The following profile views are available:

    • Cross Profile
    • Long Profile
    • Quick Profile
    • X & Y Axis Profile
    • View Profile
    Profile views

    Create fly-through videos

    Fly-through videos can be created for project or promotional presentations.

    Create fly-through videos
  • Navigation and routes

    Navigation and routes

    NaviPac is an integrated navigation and data acquisition software solution that includes surface and subsea navigation, route and waypoint planning, live tracking and piloting.

    Learn more

    Navigation and routes features

    NaviPac is an integrated navigation and data acquisition software solution that includes surface and subsea navigation, route and waypoint planning, live tracking and piloting.

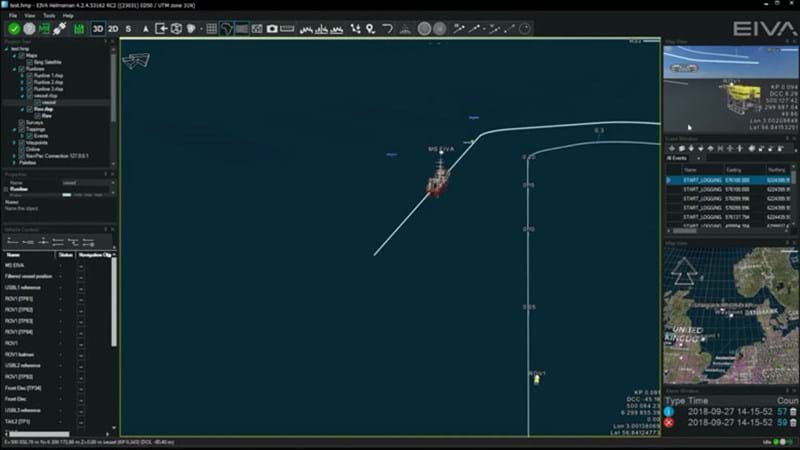

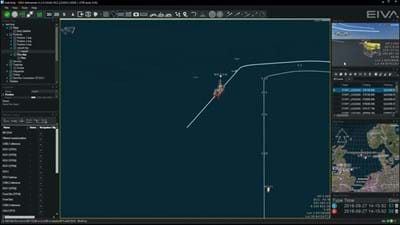

    Live position of multiple objects

    NaviPac Helmsman’s Display 4 (based on the same core as NaviModel) supports display of vehicle data (main vessel, ROV, ROTV, remotes etc) based on the NaviPac data feed. The data can be shown graphically in multiple map views.

    Live position of multiple objects

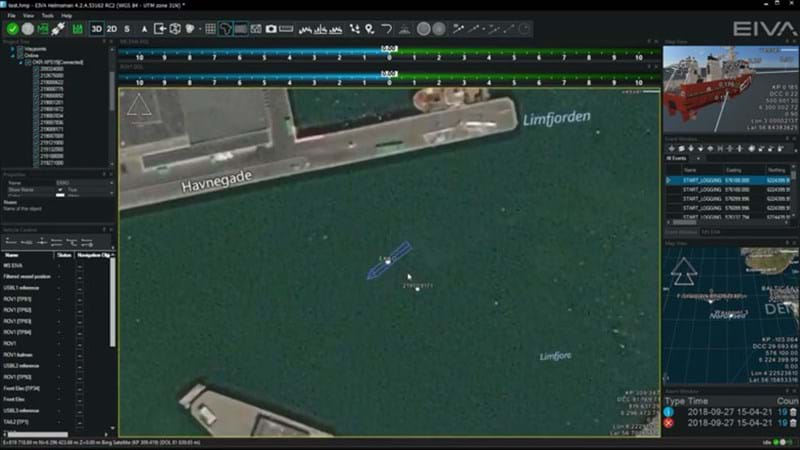

    AIS tracks

    All variants of NaviPac supports integration with AIS receivers. The data is read into NaviPac and can be shown in a dedicated AIS window and overlaid in the HMD. We perform an even read and utilise vessel dimension information.

    AIS tracks

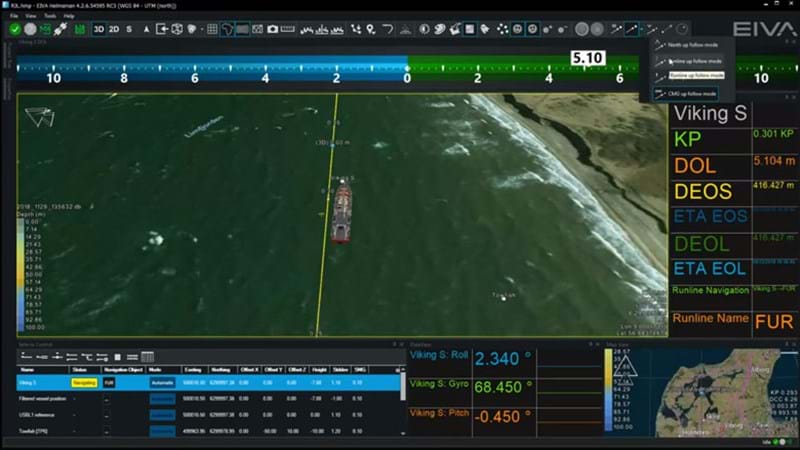

    Display north-up, heading-up, route-up

    Each Map View can be designed and controlled individually when it comes to content, overlays and layout. Map Views can be 2D, 3D or side-views, and orientation can be user defined, north-up, vehicle up or line up.

    Display north-up, heading-up, route-up

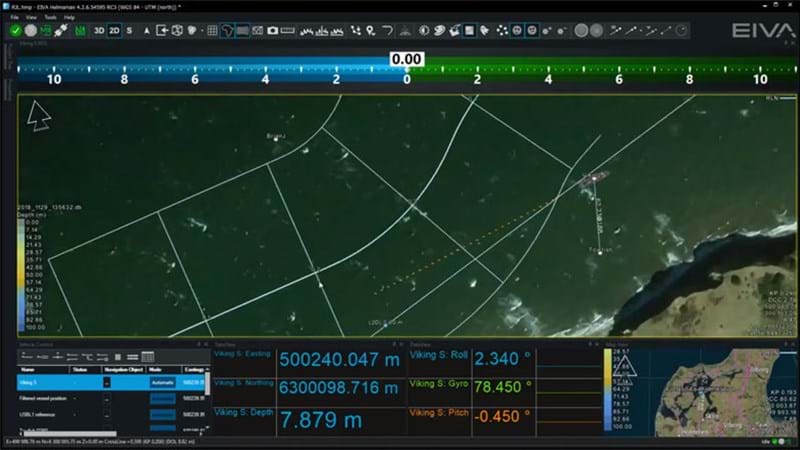

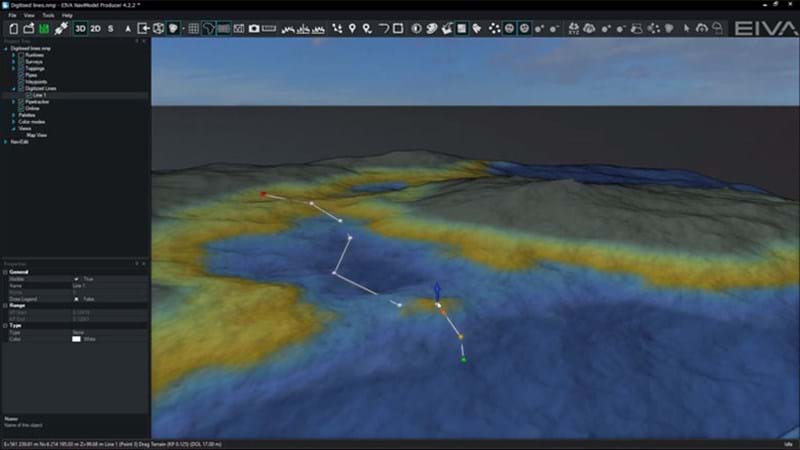

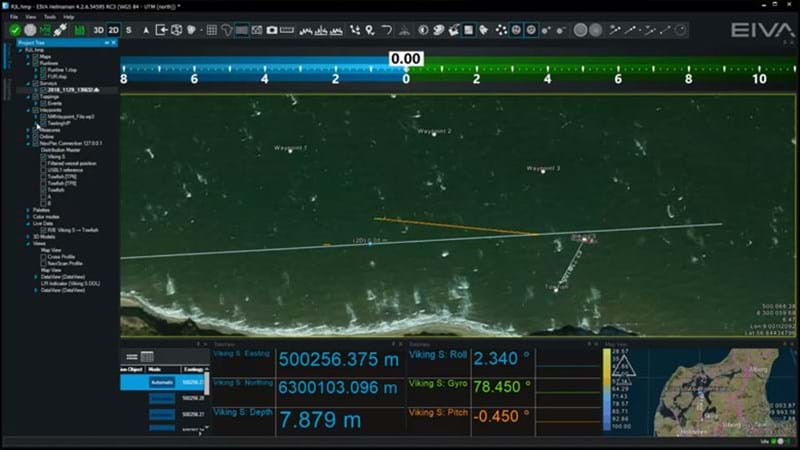

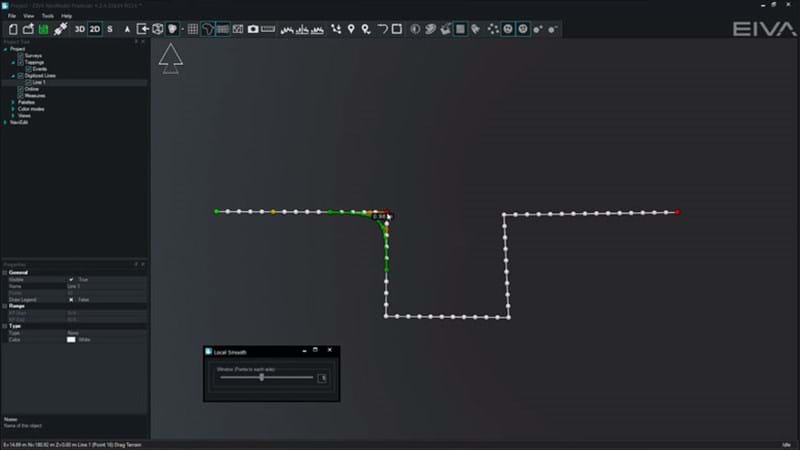

    Manual waypoint drawing

    NaviPac supports a series of runline and waypoint formats including our own RLX/WPT format, ad generic ASCII readers. You can also draw lines and points directly in the Map View.

    Manual waypoint drawing

    Various runline patterns (parallel, cross, star)

    You can inherit multiple lines based on the base line defined, such as parallel or cross lines to get an optimal route plan.

    Various runline patterns (parallel, cross, star)

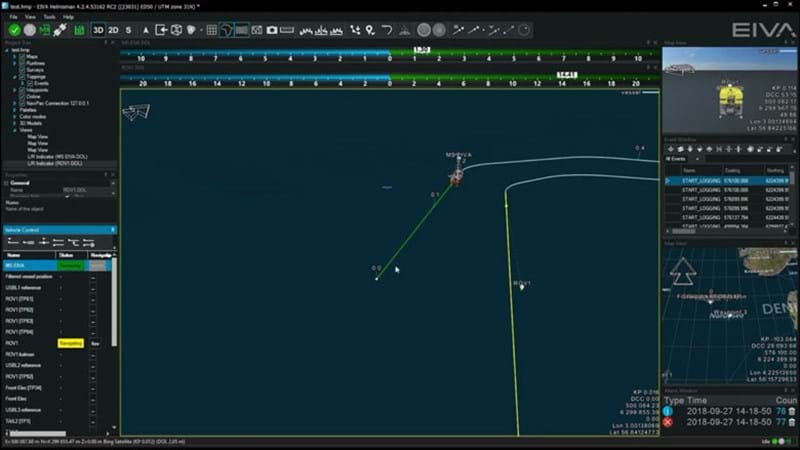

    Vehicle control panel for multiple vehicle runlines and display DOL

    Assignment of lines and waypoints are handled through the dedicated Vehicle Control view, as you may control multiple vehicles simultaneously. Each controlled vehicle will be available as distance offline indicator (DOL/DCC) and various runline information (along line, target ETA etc.).

    Vehicle control panel for multiple vehicle runlines and display DOL

    Auto-coverage runlines based on sonar

    HMD 4 includes a tool for automated runline generation for MBE site surveys. Initially the surveyor defines the first runline, and then HMD will the continuously calculate the outer limit for the line based on coverage and density requirements, and thus automatically calculate the next line. This tool is very suitable e.g., for vessel mounted solution for NaviSuite Kuda or for ASV/USV operations.

    Auto-coverage runlines based on sonar

    Automatic run-in for next runline

    When using the auto-coverage tool you may also introduce the automatic run-in. The system will be based on vessel turn capabilities and calculate the shortest route to the next line.

    Automatic run-in for next runline

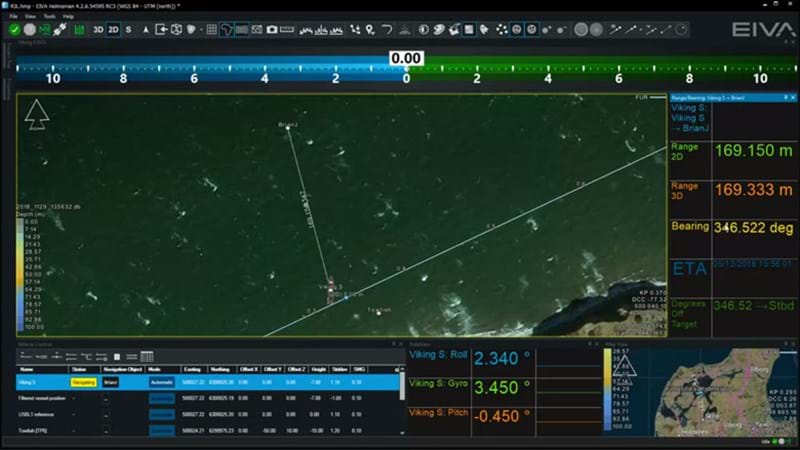

    Distance to waypoint

    Waypoints are handled in a similar manner to runlines, as assignment of the waypoint is done in the Vehicle Control View. Hereafter, an artificial runline is created from the vehicle to the point and NaviPac monitors the range/bearing to the destination. and can a,.o. feed that into autopilots and DP systems.

    Distance to waypoint

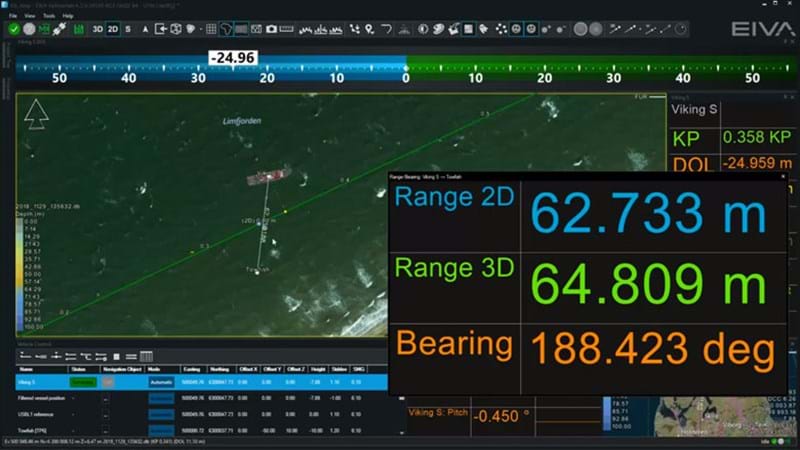

    Multi-object live range/bearing

    In the HMD you may pair any live vehicle (e.g. Vessel and ROV) and monitor the range/bearings between them for online display as live data and range information on Map Views.

    Multi-object live range/bearing

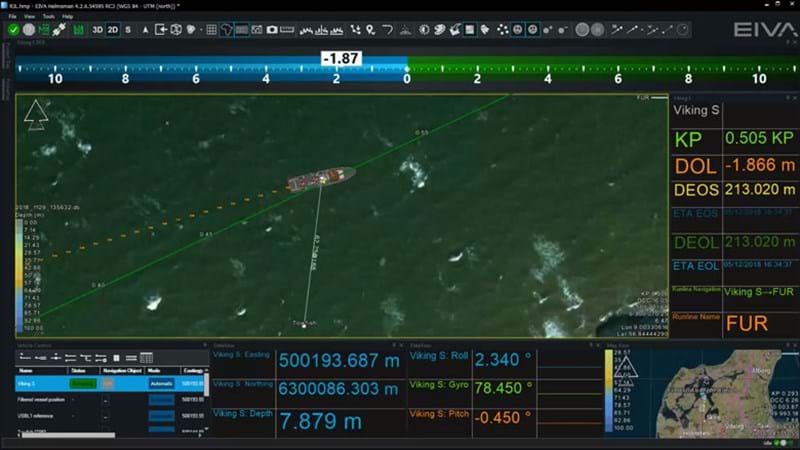

    Auto-pilot (NMEA) control

    When using runlines and waypoints you may connect NaviPac to autopilot systems using e.g., standard NMEA formats and pass cross-track error and destination waypoints on to the equipment.

    Auto-pilot (NMEA) control

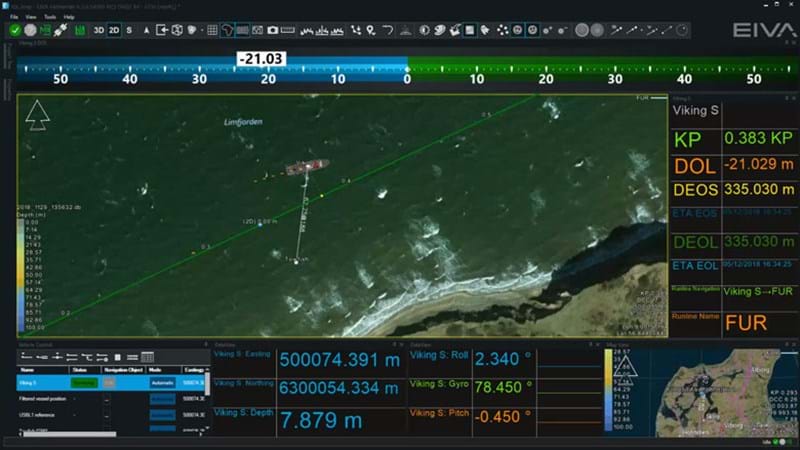

    DataUnits

    NaviPac 4.2 supports use of other data units in addition to metric. The unit is selected in the project settings and all definition fields are then assumed to be in the selected data unit.
    HMD will follow the selected data unit, but you may, by using a simple keystroke, toggle between metric and data unit if required.
    Data recording will still be metric to guarantee data integrity, but data outputs can be selected freely.

    DataUnits
  • Sensor interfacing and recording

    Sensor interfacing and recording

    Many different sensors can be interfaced and integrated in both NaviScan and NaviPac.

    Learn more

    Sensor interfacing and recording features

    Many different sensors can be interfaced and integrated in both NaviScan and NaviPac.

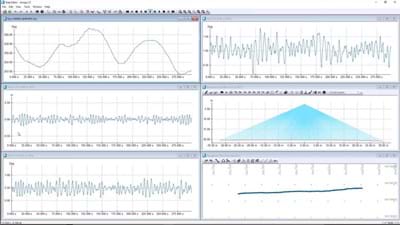

    Surface positioning and motion (GPS, Gyro, IMU)

    Setting up an entire vessel based project in NaviPac is easy performed using intuitive graphical definition tools. The video covers basic project definition, geodetics and vessel navigation setup.

    Surface positioning and motion (GPS, Gyro, IMU)

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    Setting up remote and subsea vehicles is done in a similar manner to the main vessel – easy and intuitive. Adding instruments, positioning sources (transponders, INS, LBL etx) and defining weighting and Kalman filter settings is possible.

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

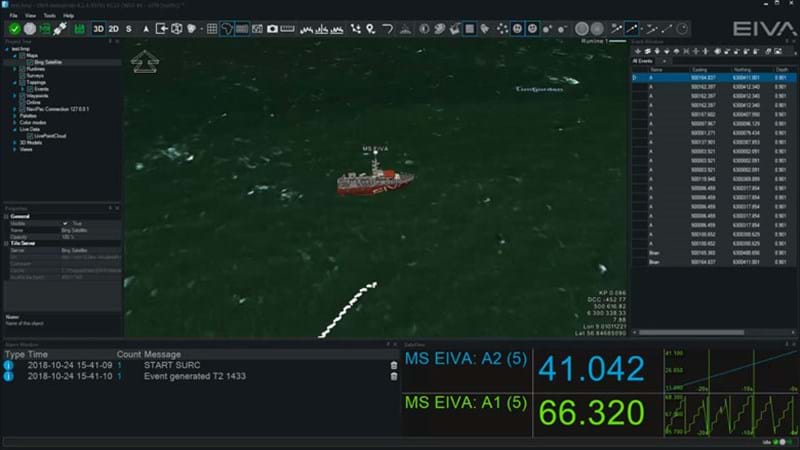

    SBE - single beam echo sounder

    Single beam echo sounders and other single source data suppliers can easily be interfaced in NaviPac, either via standard drivers or enhanced user-configurable drivers. Data will be available for display in both Helmsman’s Display and DataMon. Single source data can be shown as points clouds in the HMD – and you can automatically derive DTMs out of it.

    SBE single beam echo sounders

    FLS - forward looking sonar (wedge and mosaic)

    NaviScan supports a series of forward looking sonars such as eg. Tritech, Didson and Norbit. The data will be interfaced and recorded in NaviScan and made available for display in HMD as both stand-alone wedge display and 3D wedge display in the Map views.

    FLS forward looking sonar (wedge and mosaic)

    MBE multi-beam echo sounder (soundings and DTM)

    Multi-beam echo sounder, laser and sidescan will be interfaced and recorded in NaviScan. Display and quality control is easily done in HMD by using raw point clouds, terrain models or data profiles. Using multiple windows allows for QC by looking at data density, model standard deviation etc. Built in semi-automatic cleaning tool enables instant delivery or preliminary DTM.

    MBE multi-beam echosounder (soundings and DTM)

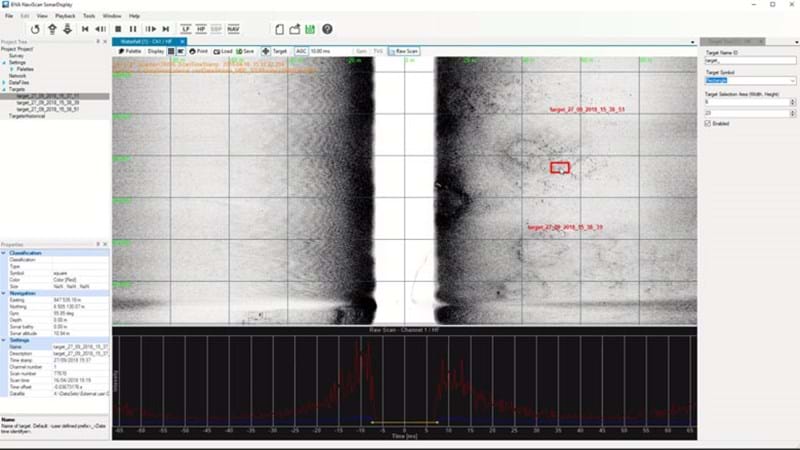

    SSS sidescan sonar

    Sidescan data is interfaced in NaviScan and recorded in the SBD data format. The data can be shown both in real-time and in replay in special waterfall data display. This data display will also enable target markings (eventing) and image management.

    SSS sidescan sonar
  • Sensor processing

    Sensor processing

    NaviEdit can be used to recalculate data very quickly and where our sensor processing takes place. Here we change offsets, C-O’s, mounting angles, apply tide, apply SVP, de-spike sensors, improve object positioning, Kalman filtering, remove swell etc.

    Learn more

    Sensor processing features

    NaviEdit can be used to recalculate data very quickly and where our sensor processing takes place. Here we change offsets, C-O’s, mounting angles, apply tide, apply SVP, de-spike sensors, improve object positioning, Kalman filtering, remove swell etc.

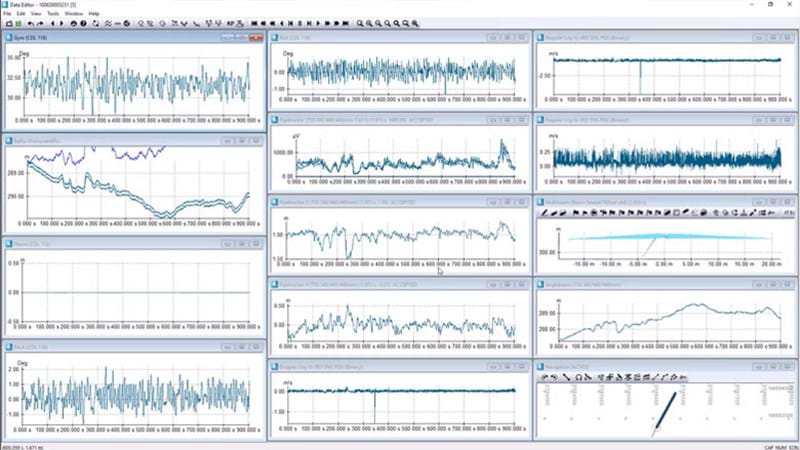

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    NaviEdit Header Editor allows the user to check an ROV setup.

    NaviEdit Data Editor allows the user to view and QC sensor data via a series of graphical displays.

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

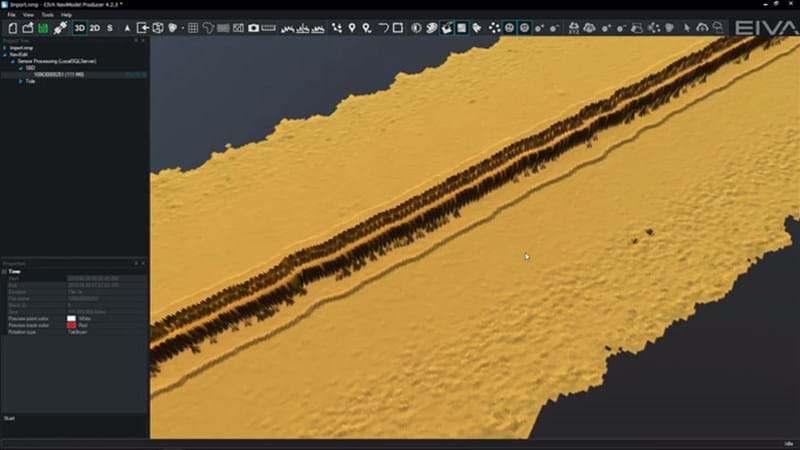

    MBE multibeam echosounder (NaviEdit to NaviModel)

    Data that is stored in NaviEdit can be imported into NaviModel.

    MBE - multibeam echosounder (NaviEdit to NaviModel)

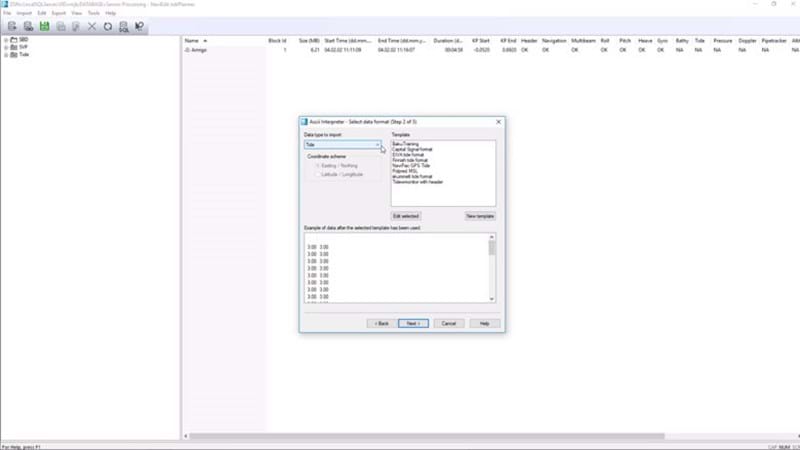

    Tide corrections

    Predicted or observed tides can be imported into NaviEdit using user-defined import templates.

    Tide corrections

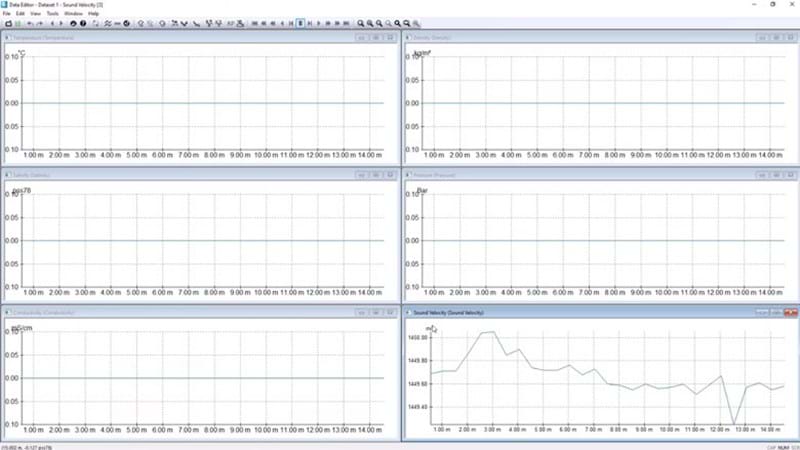

    SVP corrections

    CTD or SVP can be imported into NaviEdit using user-defined import templates.

    SVP corrections

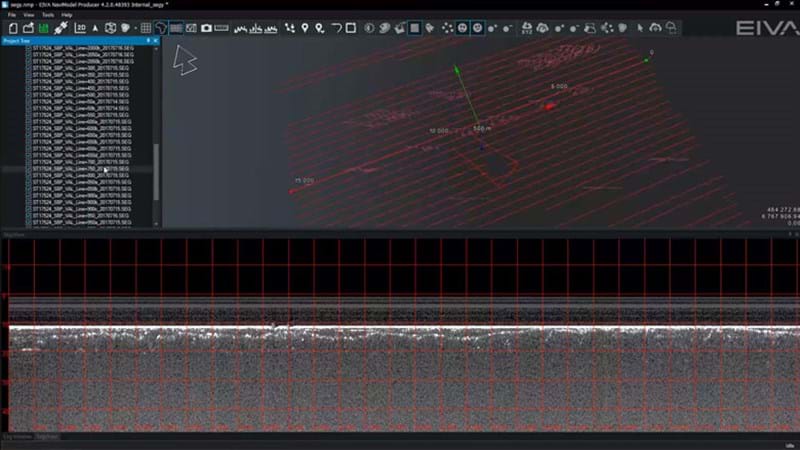

    SBP sub-bottom profiler

    You are able to work with several SEG-Y files in NaviModel at the same time. When NaviModel is loading the sub-bottom profiling data, the software extracts a rough track that is then taken through a two-step process of extracting a point every 100 metres, and then refined to 3 metres.

    SBP sub-bottom profiler

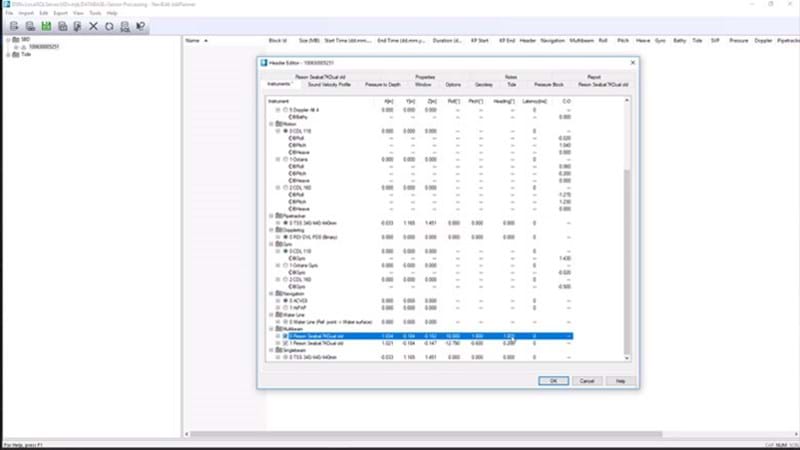

    Change offsets, C-O's and mounting angles

    Sometimes incorrect measured offsets, C-O’s or mounting angles are entered into the online acquisition system. NaviEdit Header Editor allows us to correct these errors.

    Change offsets, C-O's and mounting angles

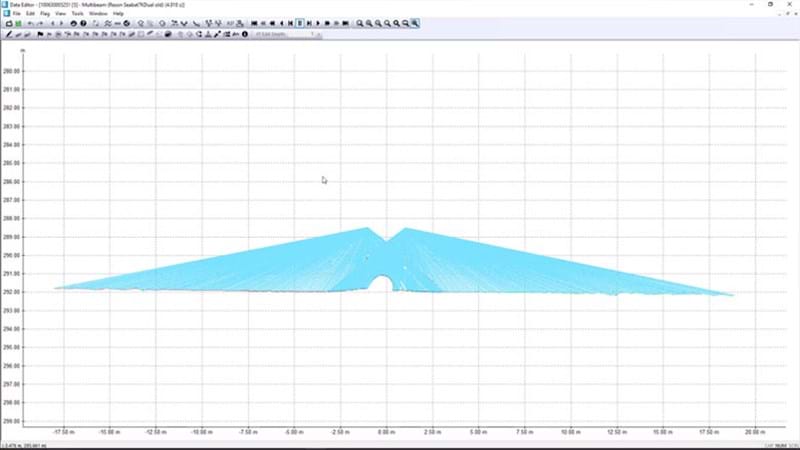

    Raybending corrections

    Sometimes Sound Velocity values are incorrect and we need a tool to perform a local correction. In NaviEdit Data Editor we can visualise the Sound Velocity corrections before we apply them.

    Raybending corrections

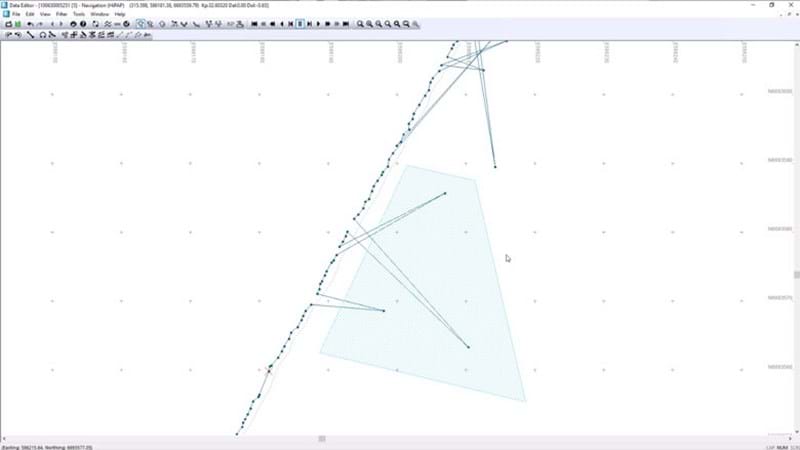

    Sensor editing (import and manual editing)

    Sensor editing takes place in NaviEdit Data Editor.  If required, we can run the following actions:

    • De-spike
    • Interpolate
    • Delete
    • Translate
    • Scale
    • Rotate
    • Smooth
    Sensor editing (import and manual editing)
  • Sonar cleaning

    Sonar cleaning

    Point data derived from sonar or laser systems can be cleaned, QC’d and edited using a plethora of manual or automatic tools. Cleaning operations can be applied multiple times to a complete data set or user-defined areas. For each cleaning operation, quality flags are assigned to every data point, so you never lose access to the original raw data.

    Learn more

    Sonar cleaning features

    Point data derived from sonar or laser systems can be cleaned, QC’d and edited using a plethora of manual or automatic tools. Cleaning operations can be applied multiple times to a complete data set or user-defined areas.

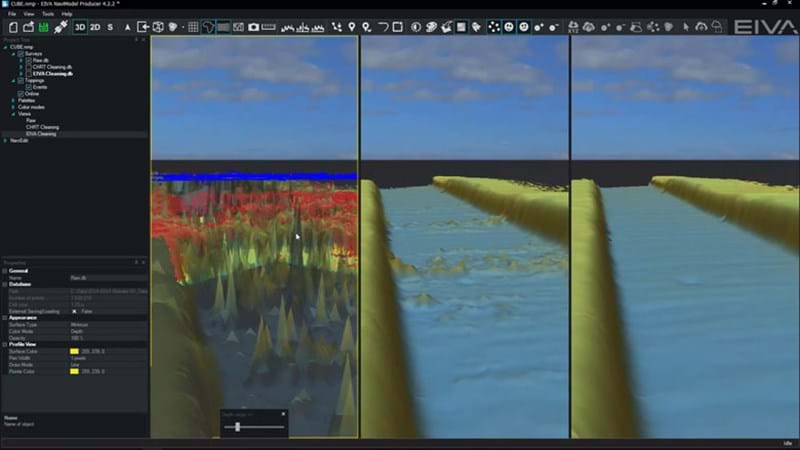

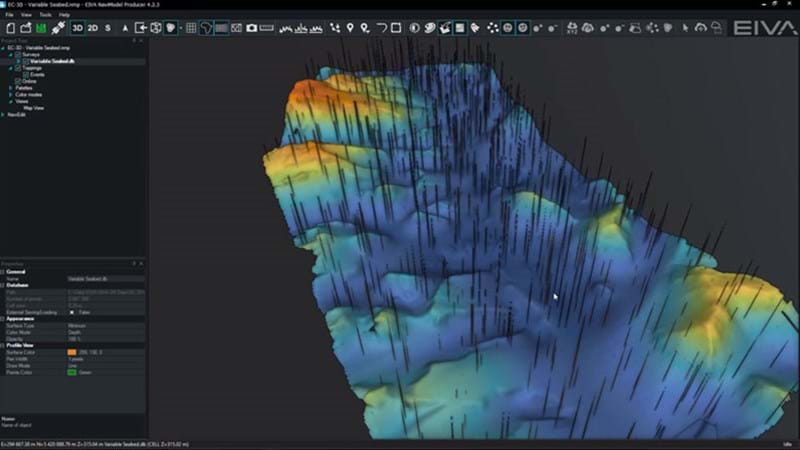

    EC-3D DTM


    EC-3D supports several cleaning methods and is efficient at cleaning both 3D and 2D data.

    It can be used to clean seabed DTMs.

    EC-3D DTM

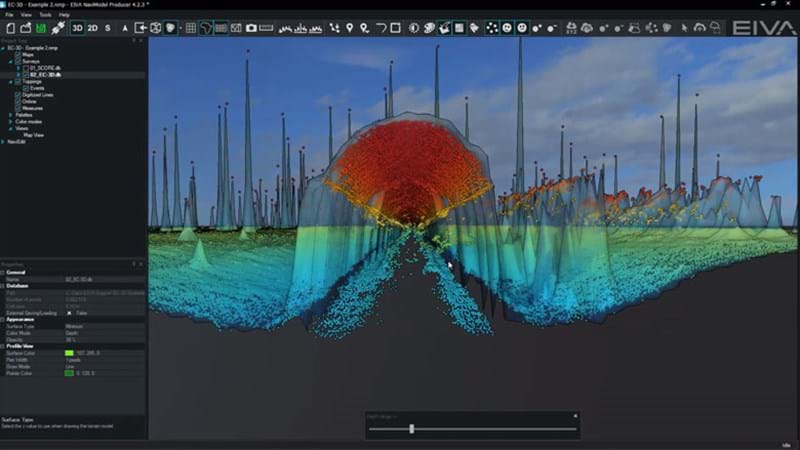

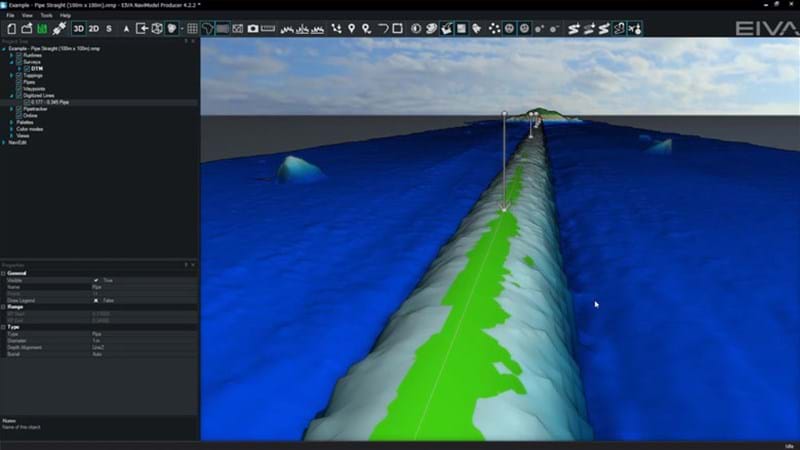

    EC-3D Pipeline

    EC-3D can be used to clean pipeline DTMs.

    EC-3D Pipeline

    EC-3D automated point cloud cleaning

    EC-3D can be used to clean point clouds.

    EC-3D can be used to clean point clouds.

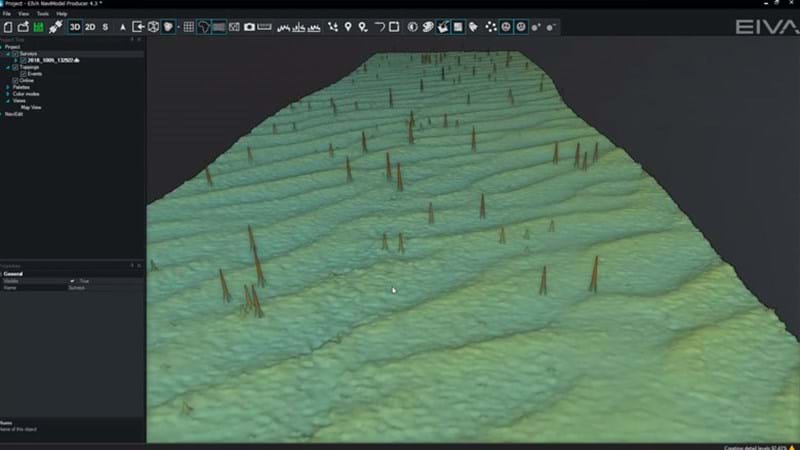

    EC-3D Automated

    EC-3D can be used to automatically clean point clouds or DTMs.

    EC-3D Automated

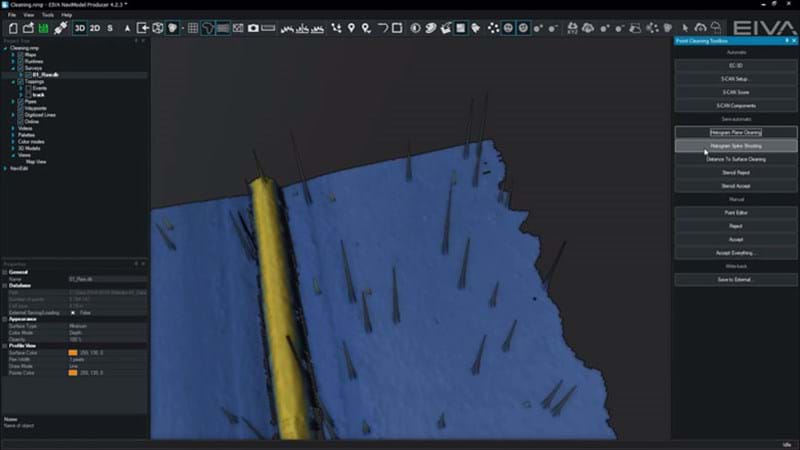

    Histogram Spike Shooting

    Histogram Spike Shooting can be used to reject or accept DTM points.

    Points are selected if they are inside a circle.

    Histogram automatically sets the rejection thresholds (can be manually over-ruled).

    Histogram Spike Shooting

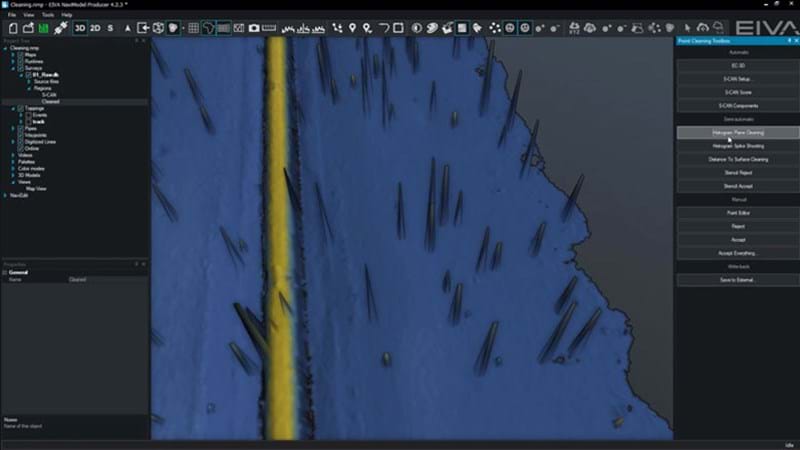

    Histogram Plane Cleaning

    Histogram Plane Cleaning tool can be used to reject or accept DTM points.

    Points are selected if they are inside a corridor, polygon or an existing boundary.

    Histogram automatically sets the rejection thresholds (can be manually over-ruled).

    Histogram Plane Cleaning

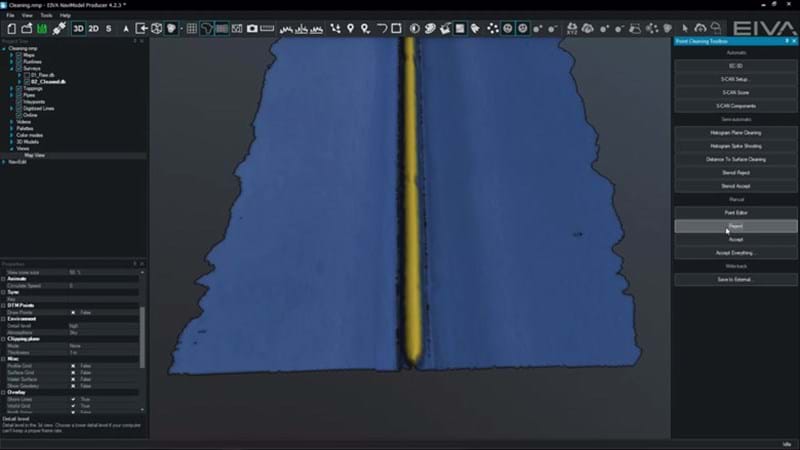

    Reject & Accept Points

    These tools can be used to reject or accept DTM points.

    Points are selected if they are inside a corridor, polygon or an existing boundary.

    Reject & Accept Points

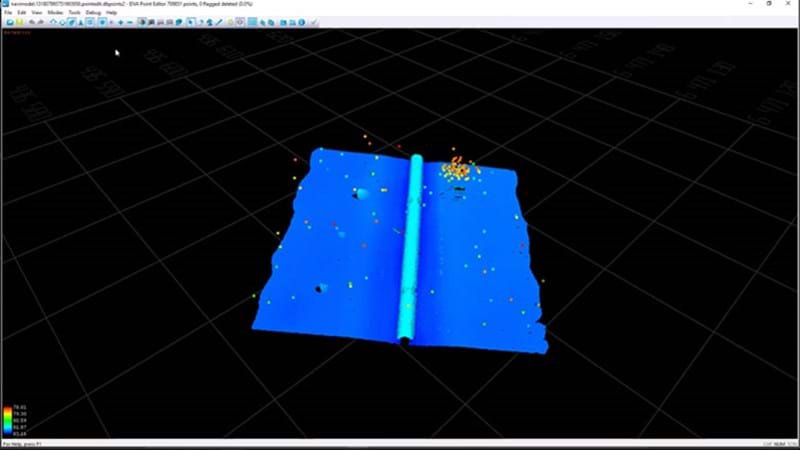

    Point Editor

    Point Editor can be used to manually reject or accept DTM points using an eraser (square select) or a region (polygon select). This tool will soon be replaced with a newer version within NaviModel.

    Point Editor
  • Point clouds

    Point clouds

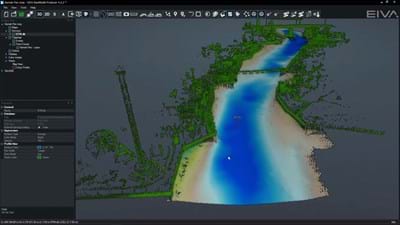

    We can create point clouds from sonar and laser systems or from historical XYZ files. Within NaviModel, there are many ways to visualise, edit and optimise point data.

    Learn more

    Point cloud features

    We can create point clouds from sonar and laser systems or from historical XYZ files. Within NaviModel, there are many ways to visualise, edit and optimise point data.

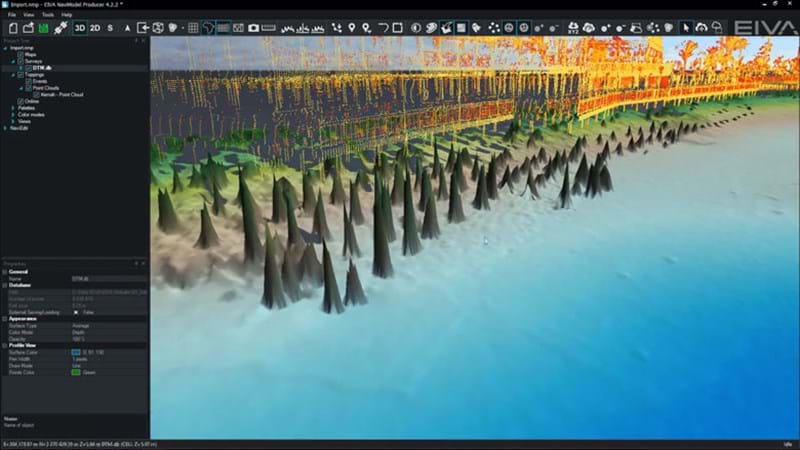

    Import XYZ files

    XYZ files can be imported as DTMs, Point Clouds, or TIN Models.

    Import XYZ files

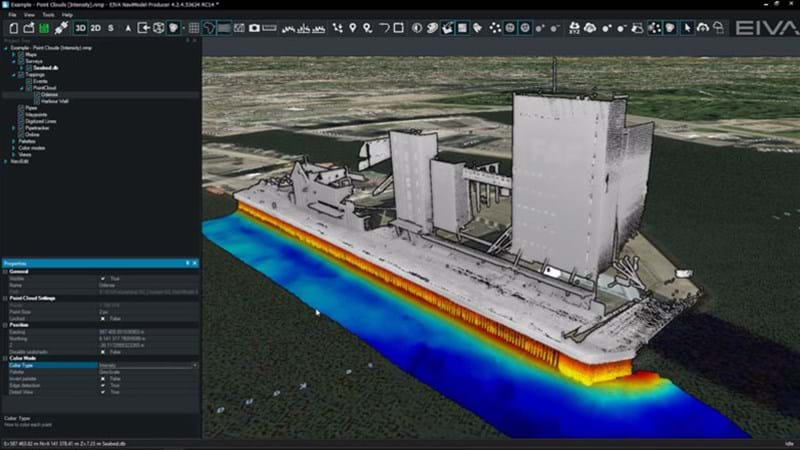

    Point clouds with RGB and Intensity

    By default, point clouds can be visualised as a solid colour or as a depth palette. However, if source files contain RGB or Intensity values, we can choose to colour the point cloud with this information instead.

    Point clouds with RGB and Intensity

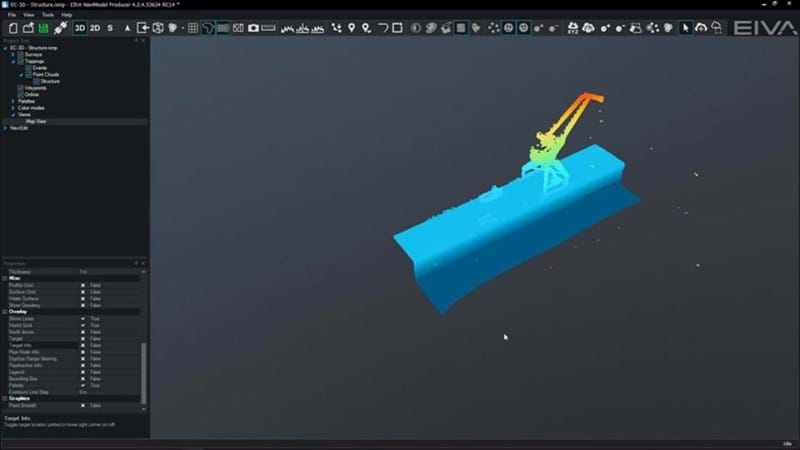

    EC-3D automated point cloud cleaning

    EC-3D can be used to clean point clouds.

    EC-3D can be used to clean point clouds.

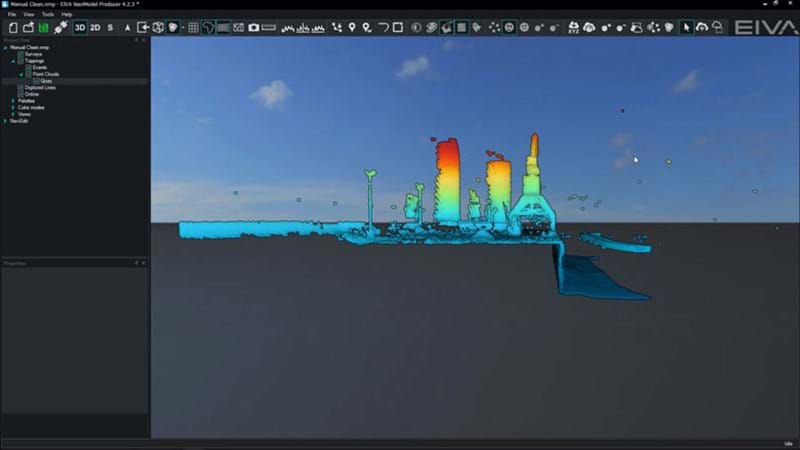

    Manual cleaning

    A selection window or a polygon can be used to manually clean point clouds.

    Manual cleaning

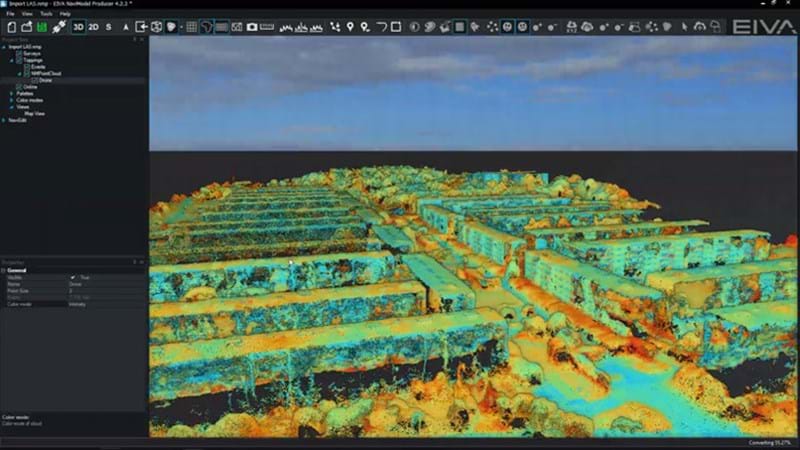

    Import LAS files and display as RGB or Intensity

    LAS files can be imported as DTMs or as point clouds.

    Point clouds can be displayed as one solid colour, as RGB values or as Intensity values.

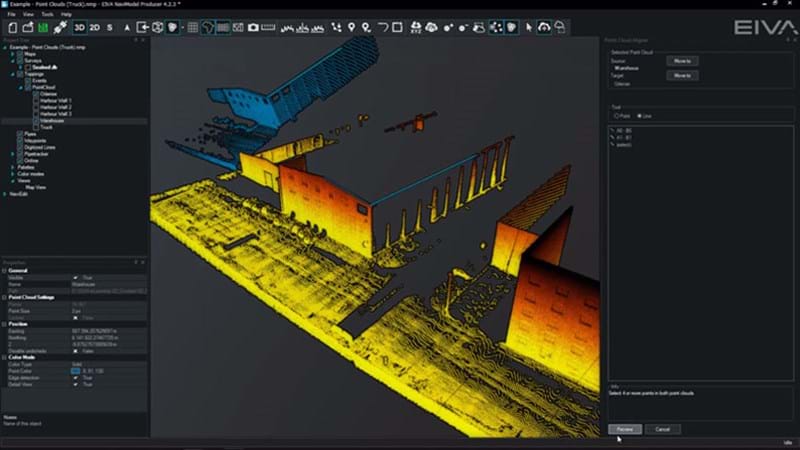

    Point Cloud Registration (Quickstitch)

    If point clouds are misaligned, we can use Point Cloud Registration to align them. We accomplish this by first digitising common features, and then performing a least-squared adjustment that moves one point cloud to another.

    Point Cloud Registration (Quickstitch)

    Large Point Clouds

    Large Point Cloud Viewer supports Point Clouds of virtually unlimited size.

    Large Point Clouds
  • DTM tools

    DTM tools

    In NaviSuite Digital Terrain Models (DTMs) can be generated, manipulated, and edited with the help of various tools.

    Learn more

    DTM features

    In NaviSuite Digital Terrain Models (DTMs) can be generated, manipulated, and edited with the help of various tools.

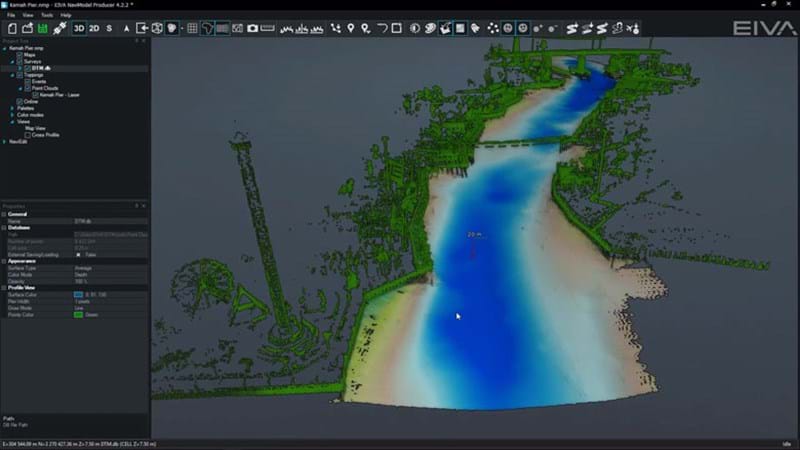

    Create DTM surface from points (sonar & laser)

    DTM surfaces and Point Clouds can be generated at any time from either sonar or laser data.

    Create DTM surface from points (sonar & laser)

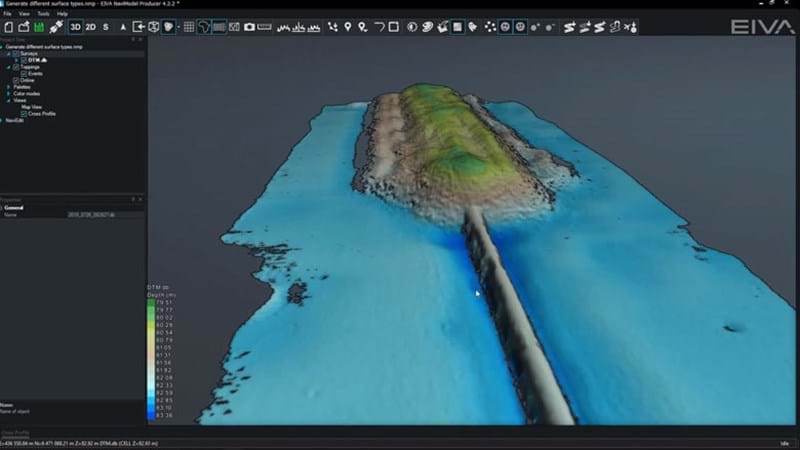

    Create different DTM surfaces (mean, max, min, etc) and colour modes

    Different surface types are generated upon data import and can be accessed at any time.

    Light and Palette settings

    DTM light and palette settings can be changed at any time.

    Light and Palette settings

    Visibility Slider

    Visibility slider allows users to compare different DTMs quickly.

    This enables comparison over time or between different data processing methods.

    Visibility slider

    Difference models

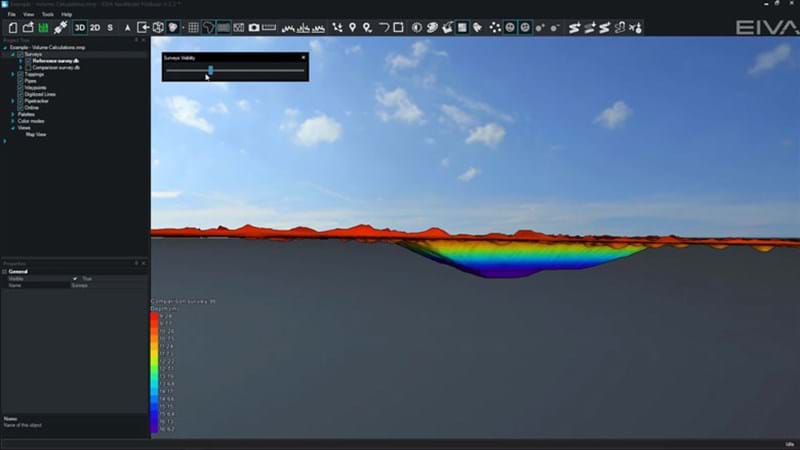

    DTMs can be created from the differences between two other existing models.

    Difference models

    Volume calculation

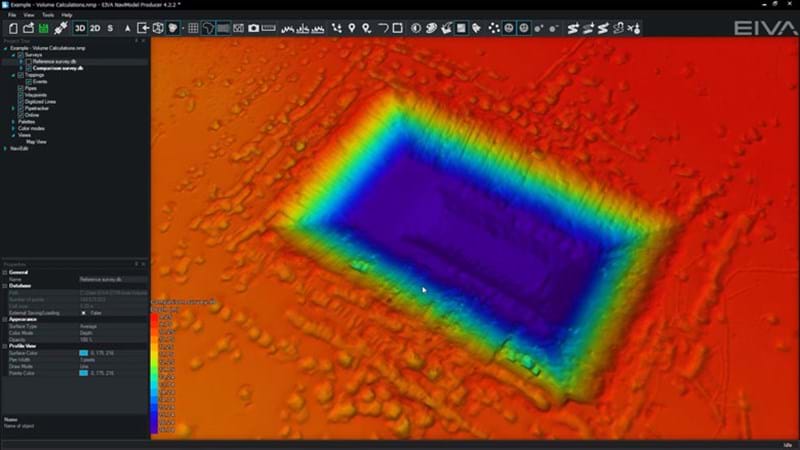

    A volume calculation is the difference between a reference surface and a comparison surface.

    Surfaces can be from a DTM or a TIN model.

    Volume calculations can take place between the following models:

    • DTM vs. DTM
    • TIN vs. TIN
    • DTM vs. TIN
    Volume calculation

    Density surface

    Density colour mode can be enabled to QC how many points are in each DTM cell.

    Density surface

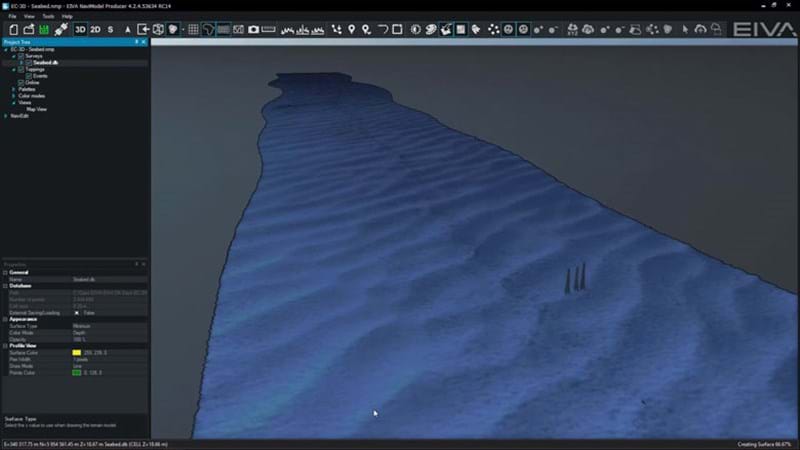

    Custom surface

    It is possible to create custom surfaces based upon hard-coded variables or user-configurable equations.

    Custom surface

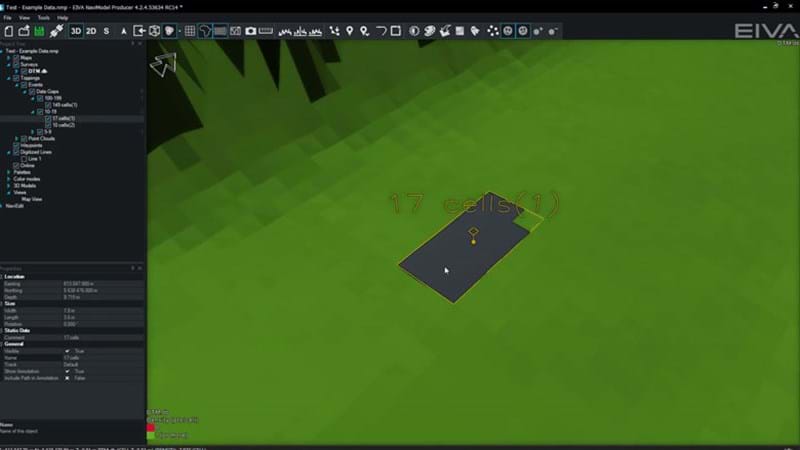

    Automatic gap detection

    This tool analyses DTMs to identify areas which have no coverage (i.e. contain gaps).

    Automatic gap detection

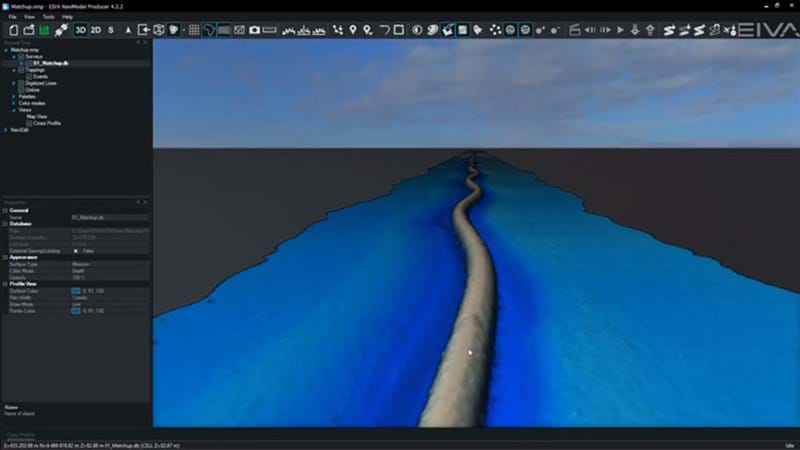

    Matchup

    Matchup tool can be used to correct for DTM artefacts caused by incorrect ROV XYZ position.

    Points are moved based upon differences between two existing lines (source and destination).

    Points are moved perpendicular to the destination line.

    Matchup

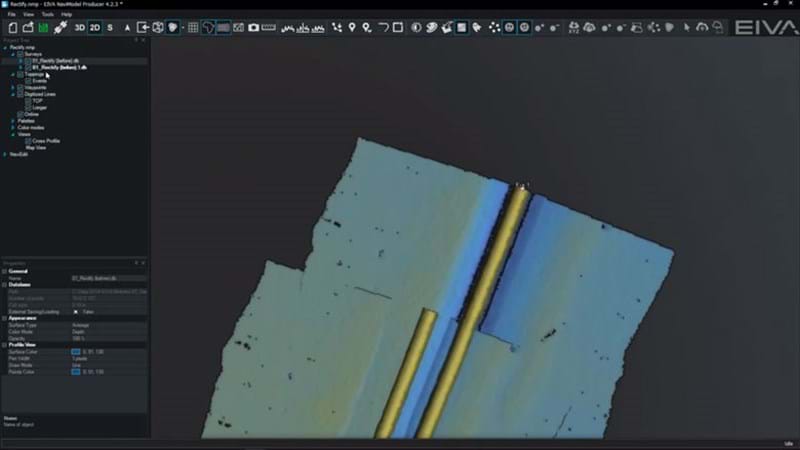

    Rectify

    Rectify tool can be used to correct for DTM artefacts caused by incorrect ROV XYZ position.

    Points are moved based upon differences between two existing lines (source and destination).

    Points are moved perpendicular and along length to the destination line.

    Rectify

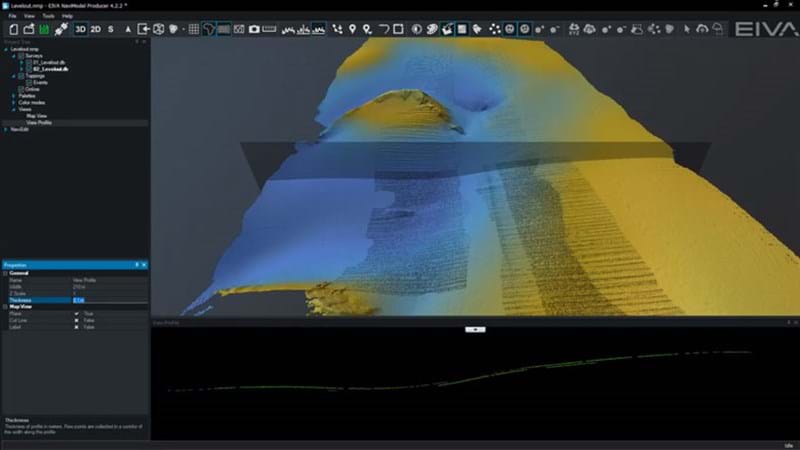

    Level out

    Level out tool can be used to correct for small depth differences between surveys.

    Level-out

    Smooth surface

    Smooth surface tool smooths a DTM surface by an absolute distance or by the number of DTM cells.

    Smooth surface

    CUBE

    Combined Uncertainty and Bathymetric Estimator (CUBE) tool is available in NaviModel and is implemented alongside our other cleaning approaches.

    CUBE

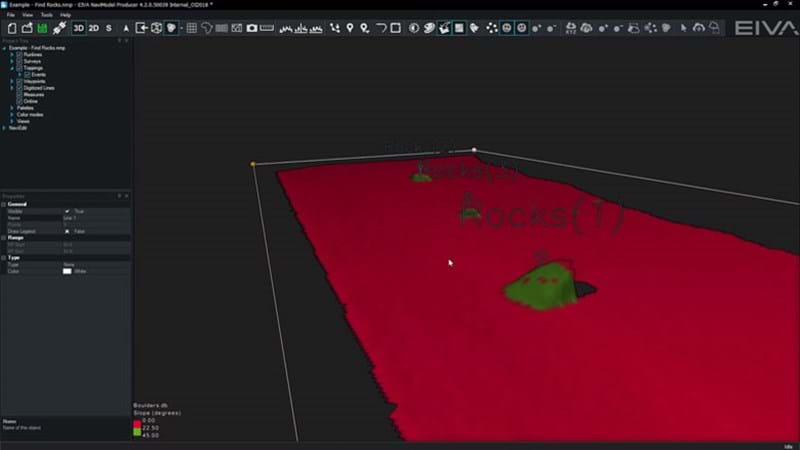

    Find Rocks

    This tool analyses DTMs to identify rock events.

    Find rocks
  • Engineering/Construction Design

    Engineering/Construction Design

    Within NaviModel, we can design trench or rock-placement profiles or import existing engineering drawings from various sources (AutoCAD).

    Learn more

    Engineering/Construction Design features

    Within NaviModel, we can design trench or rock-placement profiles or import existing engineering drawings from various sources (AutoCAD).

    Find Rocks

    This tool analyses DTMs to identify rock events.

    Find rocks

    Trench design

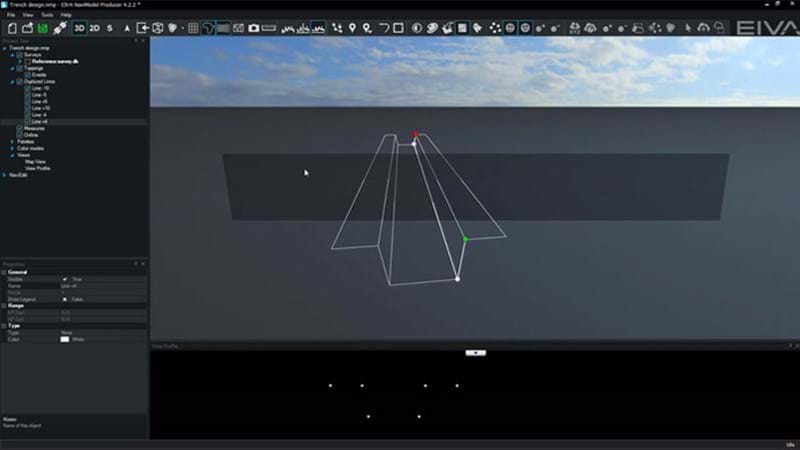

    In NaviModel theoretical trench profiles can be designed and visualised inside a 3D environment.

    If available AutoCAD engineering drawings can also be used.

    Trench design

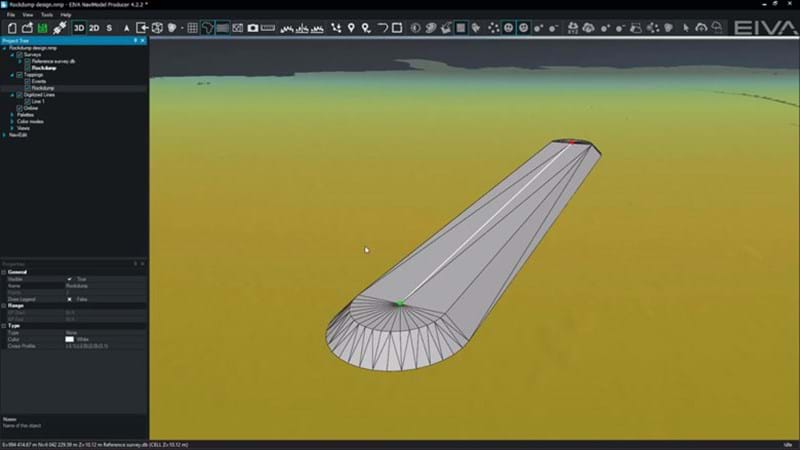

    Rock-placement design

    In NaviModel theoretical rock-placement profiles can be designed and visualised inside a 3D environment.

    If available AutoCAD engineering drawings can also be used.

    Rock-placement design
  • Live subsea construction

    Live subsea construction

    NaviSuite Uca is a configurable and integrated software solution for dredging, excavation, exclamation and similar – supporting bucket, clamshell and suction dredgers.

    Learn more

    Live subsea construction features

    NaviSuite Uca is a configurable and integrated software solution for dredging, excavation, exclamation and similar – supporting bucket, clamshell and suction dredgers.

    Material removal from DTM (dredging) - bucket

    NaviSuite Uca supports several solutions for boom/stick excavation using both bucket and clamshell. The solution can e.g. be based on Trimble, eTrack or custom sensors for positioning each moving component.

    Material removal from DTM (dredging) - bucket

    Material removal from DTM (dredging) - wire clamshell

    NaviSuite Uca supports various wirecrane solutions (e.g. Henngstler, Trimble and Liebherr) for excavation. DataMon interfaces the cable counters and will, in a calibrated manner, use the information to position clamshell and opening angle of the clam.

    Material removal from DTM (dredging) - clamshell

    Material addition to DTM (rock placement)

    NaviSuite Uca supports rock and material placement for both bucket and clamshell solutions. The system uses semi-automatic methods, as the operator presses a button and uses a foot-pedal to mark where material is placed. Uca will then add the corresponding material to the model based on a cone figure.

    Material addition to DTM (rock placement)

    Reporting

    During an operation, NaviSuite Uca gives fast and reliable reports on the progress based on both live colour coding of the terrain and volume reporting. The result can be brought into NaviModel to make a final report project and use this as documentation and handout, as illustrated here where the entire operation was performed in one process without any second passes.

    Reporting
  • Line and track tools

    Line and track tools

    We have a large range of tools to create, modify, graph and export lines that are digitised within NaviModel. Digitised lines are multipurpose and are used both online and offline. Some examples of digitised line usage include controlling pipelines and seabed marker positions, creating boundaries, engineering designs and runlines.

    Learn more

    Line and track tool features

    We have a large range of tools to create, modify, graph and export lines that are digitised within NaviModel. Digitised lines are multipurpose and are used both online and offline.

    Modify lines

    Lines can be modified in many different ways.

    Line smooth

    If required, the entire length of the line can be smoothed in XYZ.

    Line smooth

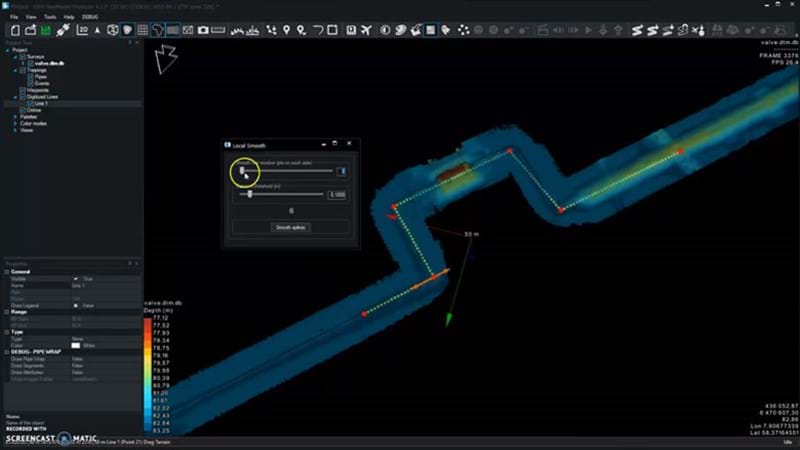

    Local smooth

    Local smooth tool allows you to concentrate on small line sections that require remedial action.

    Local smooth

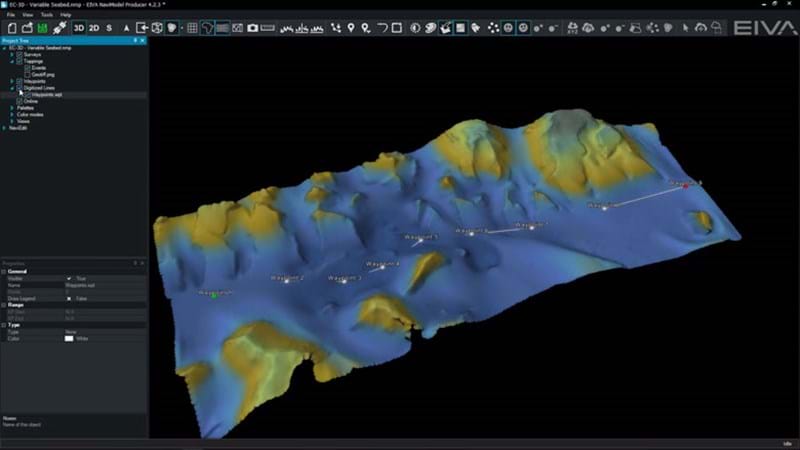

    Convert waypoints to lines

    Waypoints can be converted to lines via the ASCii Importer.

    Convert waypoints to lines

    Compare lines

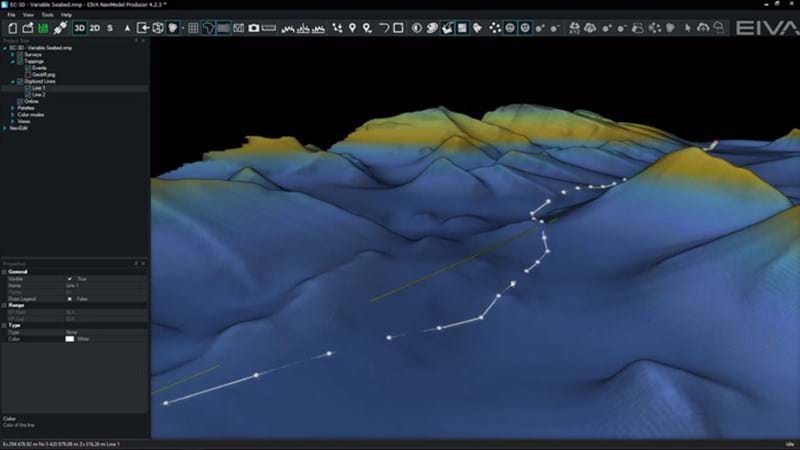

    Whilst we can always compare lines visually in the Map View window, sometimes it is better to create graphs for comparison.

    Compare lines
  • Automatic processing

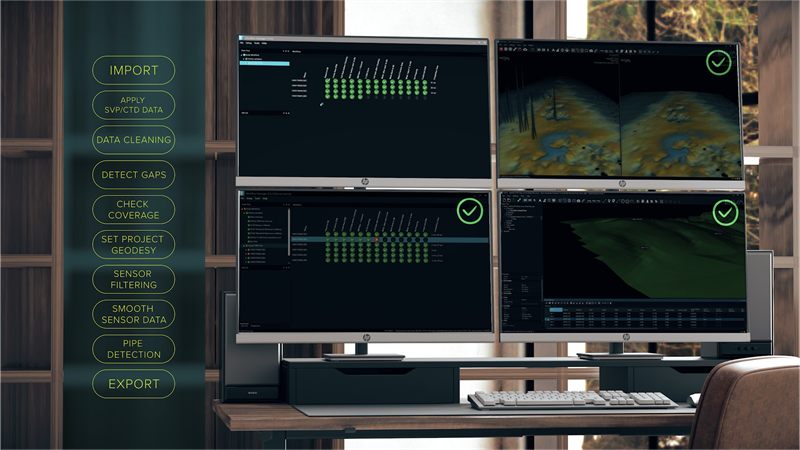

    Automatic processing

    The NaviSuite Workflow Manager tool is designed to enable a previously unseen degree of automatic data processing of massive amounts of subsea sensor data.

    Learn more

    Automatic processing features

    The NaviSuite Workflow Manager tool is designed to enable a previously unseen degree of automatic data processing of massive amounts of subsea sensor data.

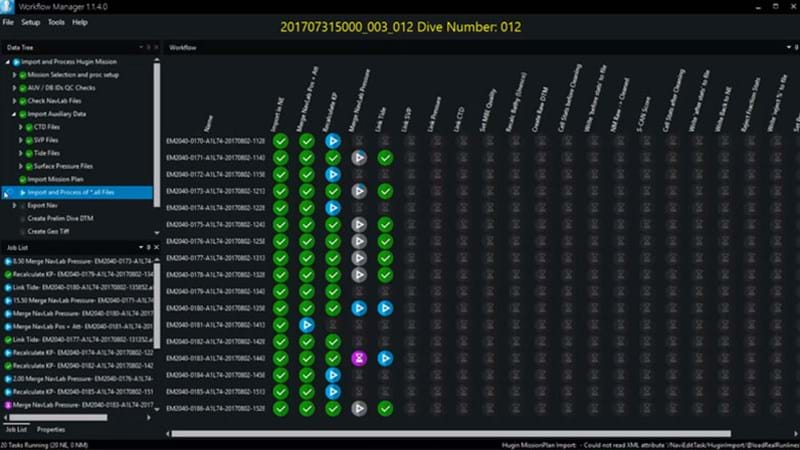

    AUV processing workflow

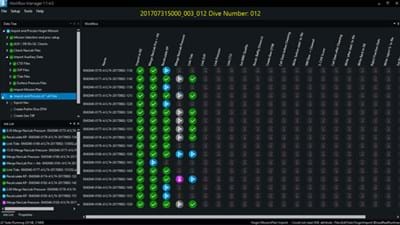

    The first version of the Workflow Manager utilises NaviEdit and NaviModel for a traditional survey data set processing of data from AUV dive. As soon as the data is available, it is automatically loaded into the flow and processed by cleaning data, merging reprocessed AUV track, building DTMs and making sanity checks. This is typically done using the Server version.

    AUV processing workflow

    NaviSuite Kuda processing workflow

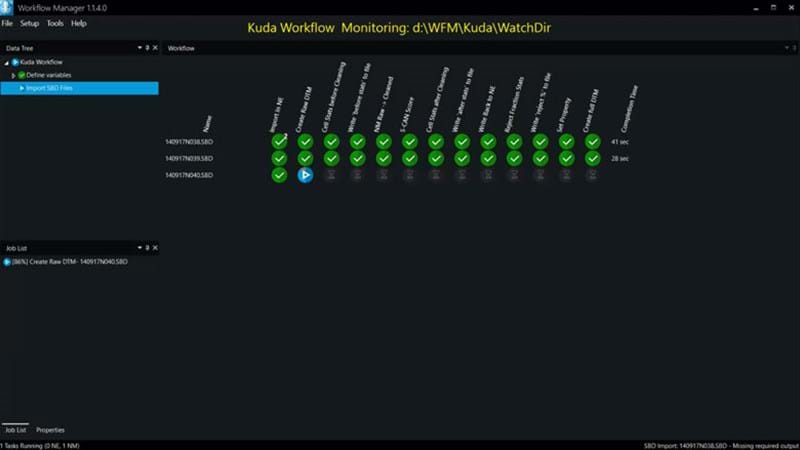

    The Workflow Manager desktop version is very well suited for NaviSuite Kuda operations where each file will be processed right after recording, thus enabling reporting and quality control as you go. The Desktop version runs one task at the time – but it is more than fast enough to cope with survey speed.

    NaviSuite Kuda processing workflow

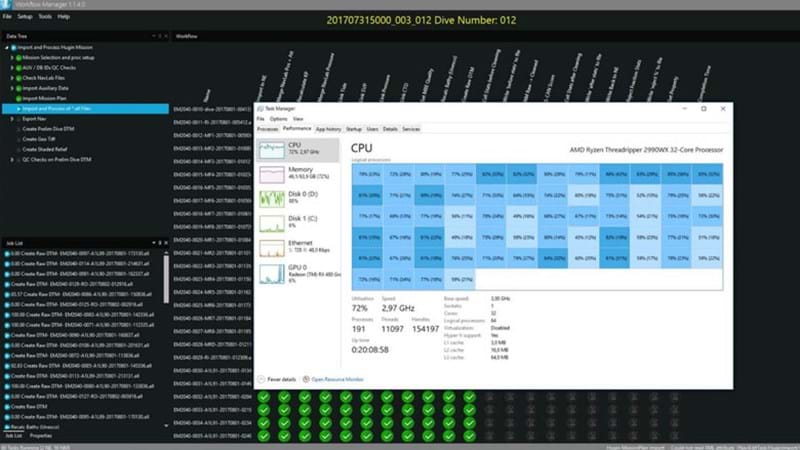

    Execute multiple parallel NaviEdit, NaviModel and 3rd party commands

    The more CPU (cores), memory and disk speed you have – the better you utilise the workflow engine. The optimal solution is running a bit fewer processes than the number of cores.

    Execute multiple parallel NaviEdit, NaviModel and 3rd party commands
  • Eventing

    Eventing

    The many eventing features include auto-calculation of event types and an easy-to-use event tablet view.

    Learn more

    Eventing features

    The many eventing features include auto-calculation of event types and an easy-to-use event tablet view.

    Configurable event types, hierarchy, and properties

    Client and company specific event collections can be tailored to the activity undertaken.

    During EIVA Days Denmark 2018, we presented a major expansion to the functionality of camera based scanning.

    Configurable event types, hierarchy and properties

    Create events

    Events can be created quickly and are automatically placed onto a DTM.

    Tablet for fast event creation

    Using the eventing tablet view allows for quicker event creation. With the eventing tablet, you can quickly add all events, or customise which events to add with just a few steps.

    Tablet for fast event creation

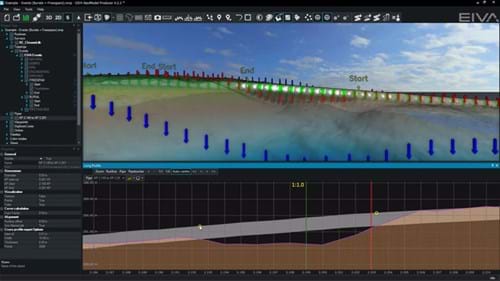

    Create freespan and burial events

    Pipe and seabed markers are used to create freespan and burial events.

    This means that events and seabed markers always tie-in.

    Create freespan and burial events

    Recalculate events

    Events can be recalculated at any time.

    Recalculate events

    Export events

    User configurable templates can be created to export events in the format required.

    Export events

    Export nearest image and videos

    Images and videos can be exported for each event or for selected events.

    Export nearest image and videos

    Create pipetracker gap events

    Pipetracker gap events are created from continuous sections of rejected pipetracker data.

    Create pipetracker gap events
  • Videos and images

    Videos and images

    Video and still images that contain time stamps can be combined with other data sources in NaviModel.

    Learn more

    Videos and images features

    Video and still images that contain time stamps can be combined with other data sources in NaviModel.

    Drape images on digitised pipe

    Video images can be wrapped around an existing pipe or digitised line in the Map View window.

    Drape images on digitised pipe

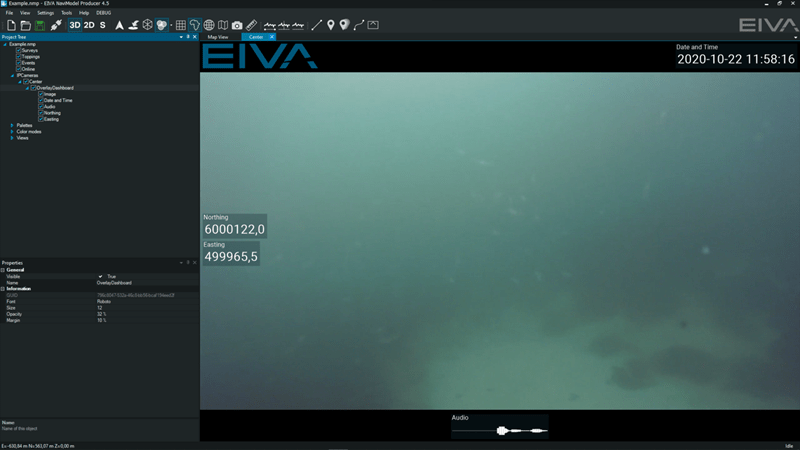

    Play and control video

    Digital video acquired in external systems can be played and controlled inside NaviModel.

    Play and control video

    Synchronise video with track

    In NaviModel the track contains the date and time and must be synchronised with the video time to enable videos to play.

    Normally the video time and track time are recorded in the same time zone. However sometimes this is not the case and we need the option to change the video / track time so that video will play.

    Synchronise video with track

    Adjust video hue, brightness, contrast and gamma levels

    Hue, brightness, contrast and gamma levels can be adjusted to improve badly lit videos.

    Adjust video hue, brightness, contrast and gamma levels

    Display video images (Waterfall)

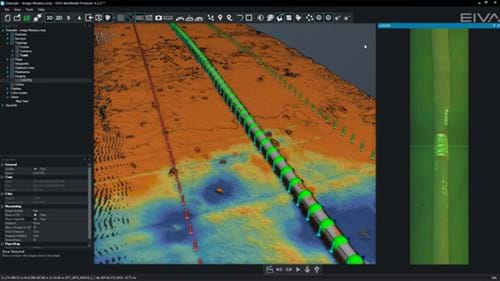

    Video images can be displayed as a vertical waterfall.

    Display video images (Waterfall)
  • Pipeline tools

    Pipeline tools

    We have a great selection of manual and automatic tools, enabling users to quickly and easily identify the pipeline geometry from its surrounding environment. Pipe and seabed markers can be placed onto DTM surfaces or through data points.

    Learn more

    Pipeline tool features

    We have a great selection of manual and automatic tools, enabling users to quickly and easily identify the pipeline geometry from its surrounding environment. Pipe and seabed markers can be placed onto DTM surfaces or through data points.

    Digitisation of pipe

    Pipeline XYZ position can be manually detected by digitising the pipe marker.

    Digitisation of pipe

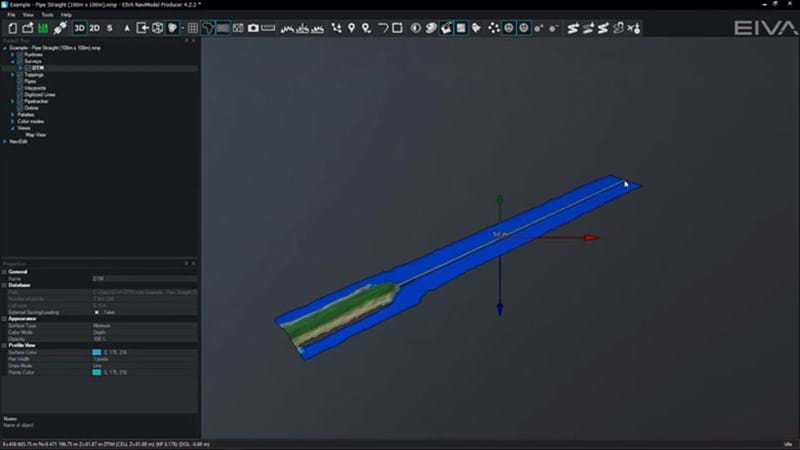

    Automatically detect pipe position

    Pipeline XYZ position can be automatically detected.

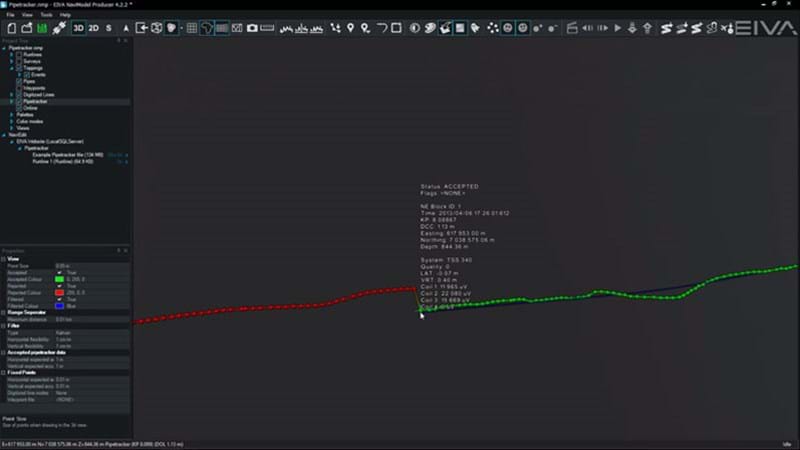

    Pipe-tracker integration and pipe-tracker statistical tools

    The following pipetracker systems are supported:

    • Teledyne
    • Innovatum
    • Orion

    Pipetracker systems assign quality flags to each pipetracker record.  In NaviEdit the system flags can be used to de-spike pipetracker data.

    In NaviModel the raw and result pipetracker data can be visualised.

    Pipetracker data can be flagged as accepted or rejected in NaviModel over-ruling NaviEdit quality flags.
    Pipe-tracker integration and pipe-tracker statistical tools

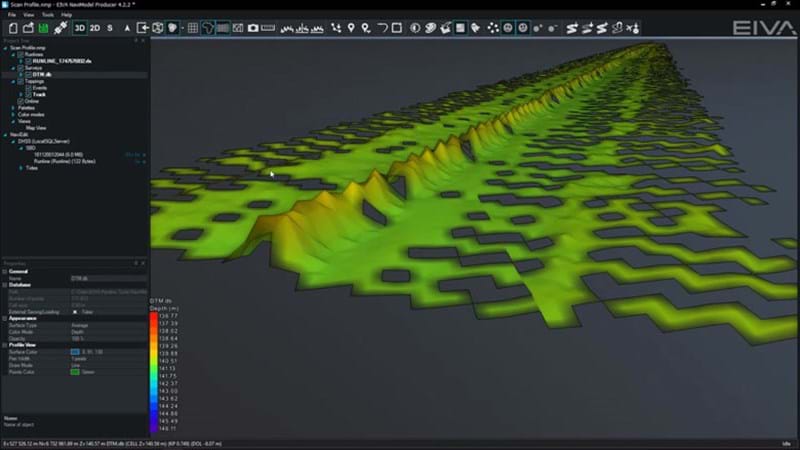

    Scan-based pipe location

    Scan Profile scans contain data points from matching port (red) and starboard (green) systems.

    Scan profiles are normally created from acquired Dual Head Scanning Sonar (DHSS) data.

    Once created, Scan Profiles can be used by the Profile Analyser.

    Scan-based pipe location

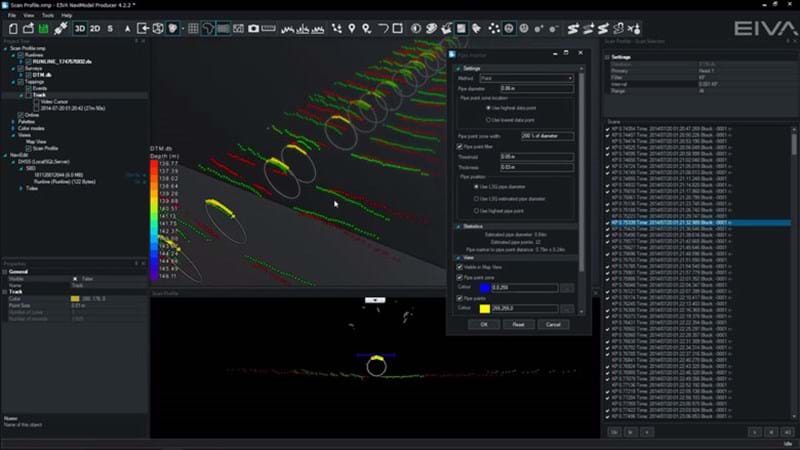

    Profile Analyser

    Profile Analyser can be used on Scan Profiles or Slice Profiles.

    Profile Analyser places pipe and seabed markers through data points.

    Profile Analyser can create the following markers:

    • Pipe marker
    • Seabed markers
    • Trench markers
    Profile Analyser

    KP Axis view

    KP Axis can be used to view and QC events.

    KP Axis view

    Automatic freespan detection

    Pipe and seabed markers are used to create freespan and burial events.

    This means that events and seabed markers always tie-in.

    Automatic freespan detection
  • Optional extra services and special offers

    Optional extra services and special offers

    EIVA offers a number of services for our NaviSuite software users.

    Learn more

    Optional extra services and special offers

    Get the most out of your software

    EIVA offers a number of services for our NaviSuite software users. These include:

    Also, we have a number of special offers:

What's included

NaviPac
Navigation & positioning

NaviScan
Sonar data acquisition – The gateway to 3D

NaviEdit
Inspection data editing – Fixing all errors

Sensor interfacing & ASCII recording Multi-beam echo sounder (MBE), laser and side-scan sonar interfacing Survey data management
System integration Pipe and cable tracker integration Microsoft SQL server-based: local and server
Data distribution Real-time 3D QC Data replay and control
Line planning Coverage monitoring including real-time digital terrain modelling (DTM) and noise filtering On-the-fly sensor data editing
Positioning control Data recording Configurable Kalman filter
Steering support via charts, CAD drawings, geocoded images etc   Sensor fusion – combining all sensors from GPS antenna to bottom of the sea
Distributed monitoring and control   Data migration (processed GPS, GPS tide, INS, delayed heave, CTD, SVP etc)
3D quality control (QC)   UNESCO depth calculation
Online eventing   Data exporting
Video display and recording   Automated data processing using Work Flow Manager
Video/digital video recorder (DVR) control
Remote monitoring & control


NaviModel / 3D pipe option
3D terrain modelling – Pipeline inspection in 3D

NaviPlot
Chart production – Finishing the paperwork

ATTU (optional extra)
Accurate Time-Tagging Unit

Digital terrain visualisation, analysis, modelling and editing in a 3D environment Chart layout Time-tagging accuracy better than 50 μSec
Unlimited model size based on level of detail (LOD) technology KP alignment sheets Distributed interfacing
Terrain data cleaning (plane cleaning, 3D point edit and statistical methods) Along-route chart series management Time server (NTP) capacity
Automated cleaning (EC-3D) Reporting
Video and still-image integration Plotting
Manual and assisted eventing ACAD reporting
Automated video eventing using NaviSuite Deep Learning ECDIS exporting via SevenCs
Chart definition tools
Volume calculation
Reporting
GIS integration
Automated data processing using Work Flow Manager
