Sonar, sensor and laser data acquisition

NaviScan acquires data from all major pipe/cable trackers and sonars on the market, including multibeam echo sounders, scanning and profiling sonars and conventional side-scan sonars. Features include:

  • Laser/LiDAR, side-scan and multi-beam acquisition
  • Real-time sensor monitoring
  • Sensor-compensated real-time digital terrain model
  • Sonar coverage display
  • Sonar waterfall display

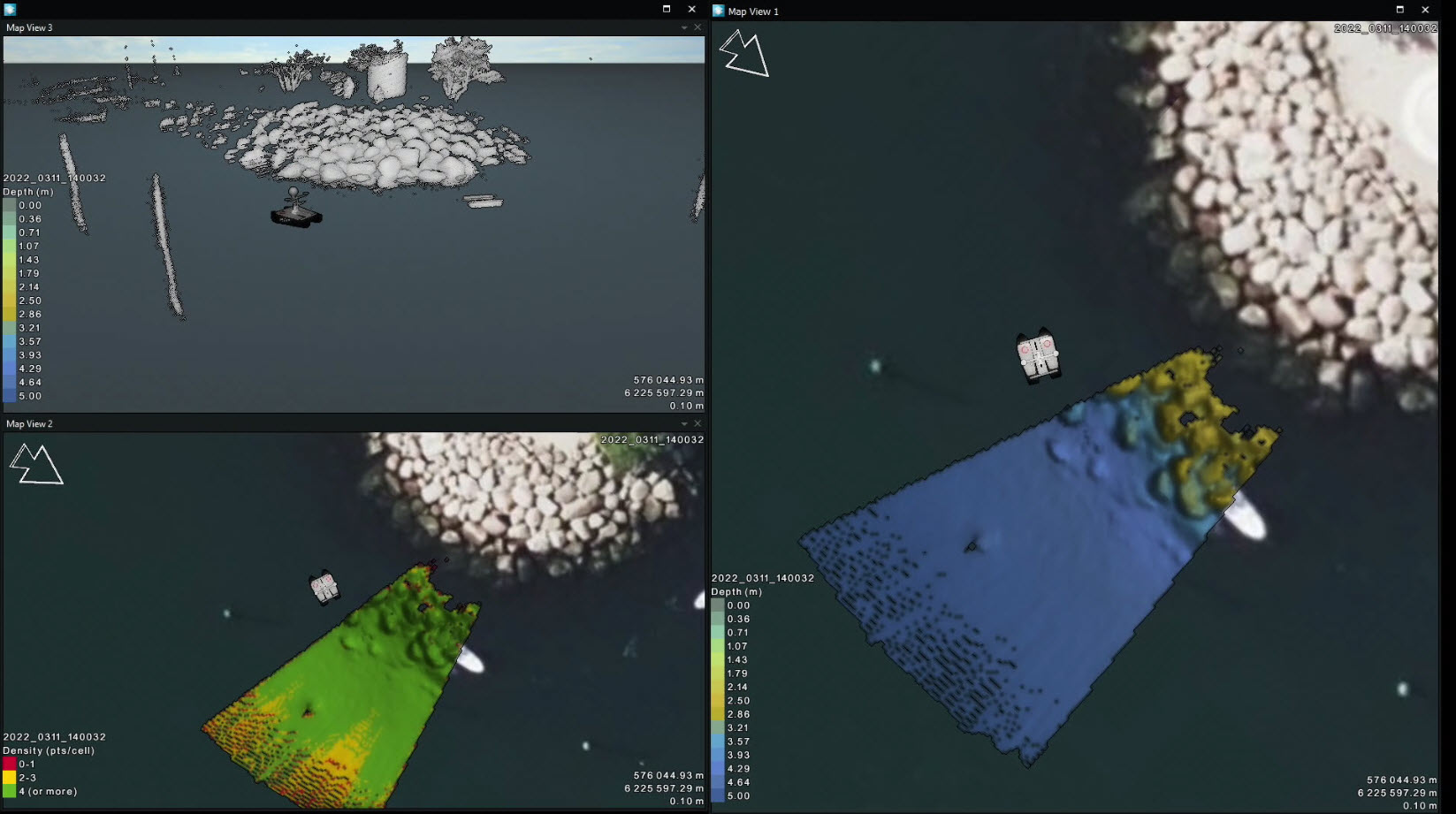

  • 2D and 3D real-time display

You already have products in your My EIVA basket

This product cannot be added to your basket as you already have products in your My EIVA basket.

excl VAT, excl shipping fee
Get in touch
Delivery time:   A few minutes

As soon as your details are validated, you will receive a licence activation key for any purchased subscriptions by email and with any purchased permanent licence a physical dongle will be shipped to you.

Key features and benefits

  • Sensor interfacing and recording

    Sensor interfacing and recording

    Many different sensors can be interfaced and integrated in both NaviScan and NaviPac.

    Learn more

    Sensor interfacing and recording features

    Many different sensors can be interfaced and integrated in both NaviScan and NaviPac.

    Surface positioning and motion (GPS, Gyro, IMU)

    Setting up an entire vessel based project in NaviPac is easy performed using intuitive graphical definition tools. The video covers basic project definition, geodetics and vessel navigation setup.

    Surface positioning and motion (GPS, Gyro, IMU)

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    Setting up remote and subsea vehicles is done in a similar manner to the main vessel – easy and intuitive. Adding instruments, positioning sources (transponders, INS, LBL etx) and defining weighting and Kalman filter settings is possible.

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    SBE - single beam echo sounder

    Single beam echo sounders and other single source data suppliers can easily be interfaced in NaviPac, either via standard drivers or enhanced user-configurable drivers. Data will be available for display in both Helmsman’s Display and DataMon. Single source data can be shown as points clouds in the HMD – and you can automatically derive DTMs out of it.

    SBE single beam echo sounders

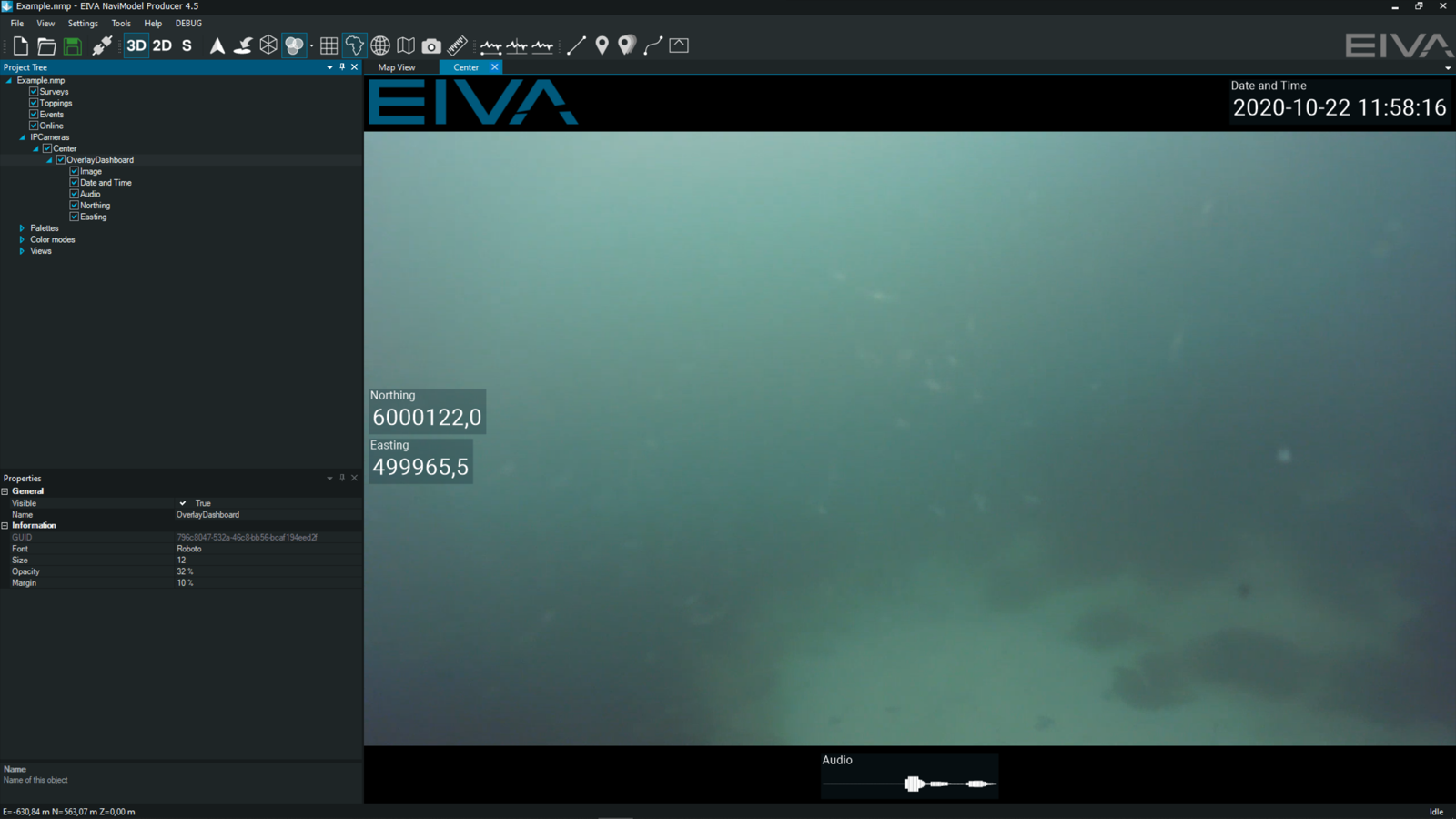

    DVR: IP video camera

    In NaviPac, you can easily display and record video camera feeds. This free alternative to other DVR systems ensures that you can stream your camera feed directly into NaviPac and that it is recorded in a format you can replay in NaviModel. Overlays which you use during acquisition are saved in separate, synced files, rather than burned in. This means the overlays can be there when you replay the video, or you can remove them.

    video camera IP DVR NaviPac NaviModel

    FLS - forward looking sonar (wedge and mosaic)

    NaviScan supports a series of forward looking sonars such as eg. Tritech, Didson and Norbit. The data will be interfaced and recorded in NaviScan and made available for display in HMD as both stand-alone wedge display and 3D wedge display in the Map views.

    FLS forward looking sonar (wedge and mosaic)

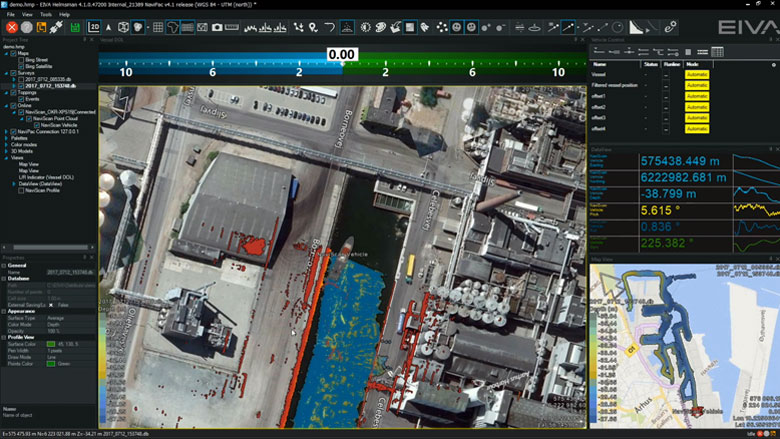

    MBE multi-beam echo sounder (soundings and DTM)

    Multi-beam echo sounder, laser and sidescan will be interfaced and recorded in NaviScan. Display and quality control is easily done in HMD by using raw point clouds, terrain models or data profiles. Using multiple windows allows for QC by looking at data density, model standard deviation etc. Built in semi-automatic cleaning tool enables instant delivery or preliminary DTM.

    MBE multi-beam echosounder (soundings and DTM)

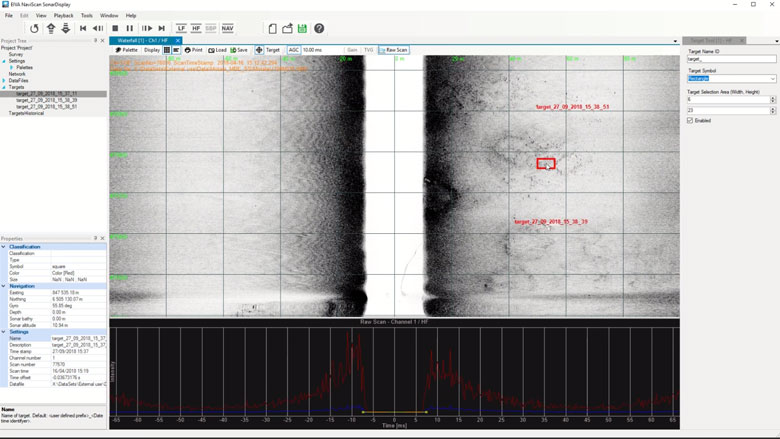

    SSS sidescan sonar

    Sidescan data is interfaced in NaviScan and recorded in the SBD data format. The data can be shown both in real-time and in replay in special waterfall data display. This data display will also enable target markings (eventing) and image management.

    SSS sidescan sonar
