NaviModel offers high-performance digital terrain models in 2D and 3D and high-tech tools for model analyses and manipulations.

This includes carrying out comparison over time by visualising the development between different datasets from the same site, acquired at different points in time – what we call 4D.

NaviModel comes in three variants:

With the NaviModel Producer variant, you get the complete software solution comprising all the features of NaviModel for data processing, cleaning, modelling and reporting.


'I find NaviModel an excellent tool for producing high quality images for my work and publications. I am impressed with the simple interface which makes working with point clouds and digital terrain models very straightforward.'
Dr. Innes McCartney BA (Hons), MA, MA, PhD.
Bournemouth University

You already have products in your My EIVA basket

This product cannot be added to your basket as you already have products in your My EIVA basket.

excl VAT, excl shipping fee
Get in touch
Delivery time:   A few minutes

As soon as your details are validated, you will receive a licence activation key for any purchased subscriptions by email and with any purchased permanent licence a physical dongle will be shipped to you.

Key features and benefits

  • NaviModel in action with our customers

    NaviModel in action with our customers

    Featuring our customers’ own experiences with NaviModel in real-world settings, these case studies deliver valuable insights about how and where it can be adopted, deployed and utilised.

    Learn more

    Check out how our customers use NaviModel for a wide variety of application, such as...



    Harbour inspection

    When performing harbour inspections, 'NaviModel is a modern, fantastic tool to work with’ according to Henrik Halvorsen, Styvehavn AS. ‘It can display many kinds of data in 3D and allows us to prepare and deliver state of the art survey data to our clients.'

    Learn how Styvehavn used NaviModel for a harbour inspection



    The Port of Moss visualised in NaviModel

    Shipwrecks

    NaviModel is often used for modelling shipwrecks, due to its powerful 3D modelling and visualisation capabilities, as well as precise positioning.

    Learn how NaviModel was used for studying WWII shipwrecks down to the millimetre

    In a project using NaviSuite to pan and document a shipwreck removal, our software ‘provided tools that guaranteed a difficult process was made easy and intuitive, enabling fast analysis of data just a few hours after it was collected' said Technical Director Thomaz Tessler, TESSEC Engineering and Maritime Services.

    Learn how NaviModel was used for planning and documenting a shipwreck removal

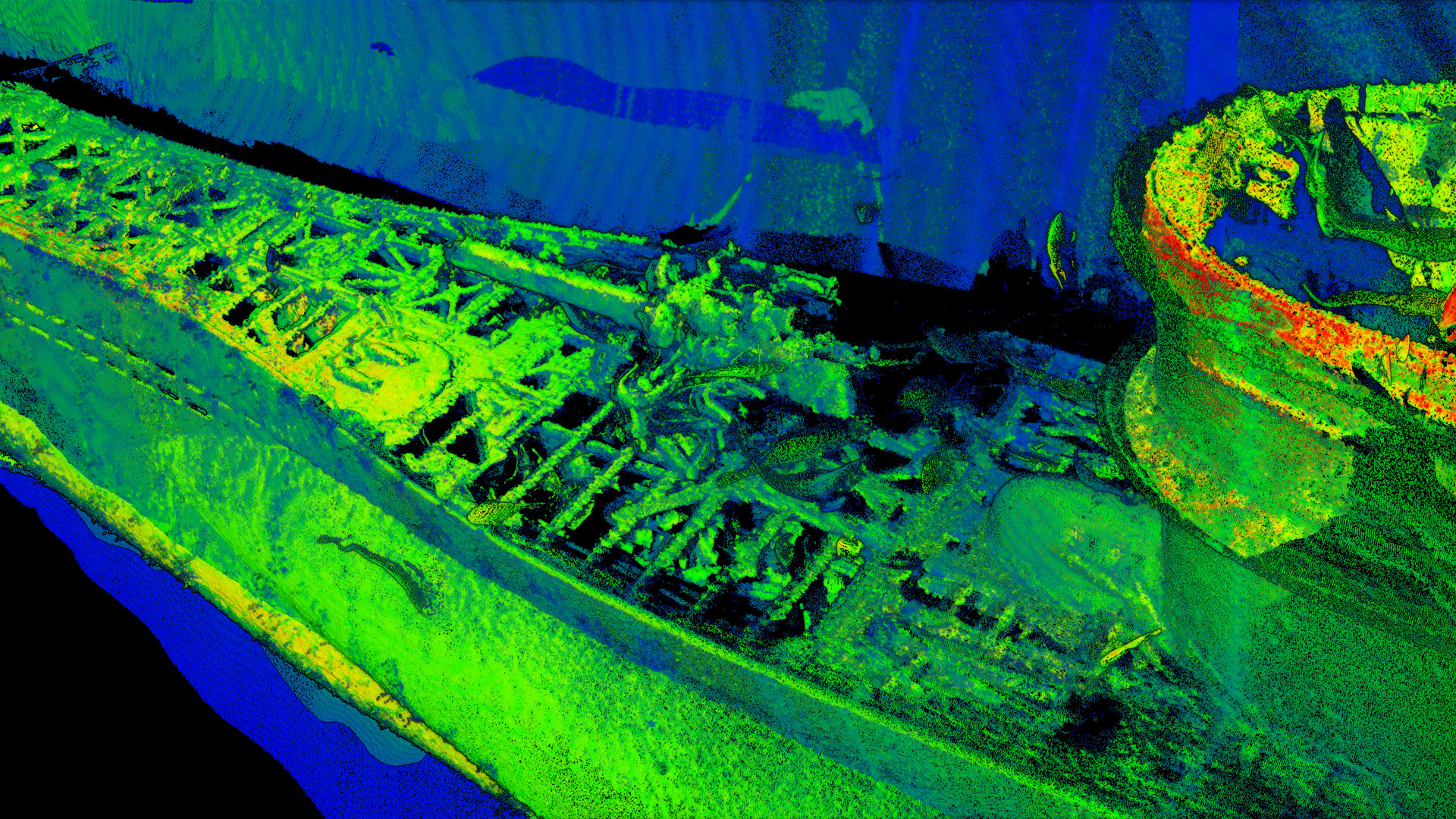

    A 3D model of a wreck generated with NaviModel Producer software

    Quality control (QC) toolbox

    NaviModel can also be used for quality controlling data. The QC tools in NaviModel can quality control survey data (DTMs), geodetic networks (such as LBL arrays), tidal prediction, catenary models, seismic data (p-formats) and many more data types. Several of our QC tools are available in both the NaviModel Analyser and Producer variants, while others can be purchased with a QC toolbox add-on.

    Learn more about how we developed the NaviSuite QC toolbox as a single software solution for all bp's QC needs



    Undertake acoustic network adjustment and QC in NaviModel

    Custom software tools

    If there is a feature you are missing, you can always reach out to us for custom software development.

    Learn how Clinton uses EIVA as their single software provider for hydrographic surveys

    Learn how EIVA developed a NaviModel tool to simulate trenching for cable lay operations



    Trencher tool developed as custom software fro Andrews Survey

  • General visualisation tools

    General visualisation tools

    NaviModel and NaviPac share the same 3D engine, and therefore the same powerful 3D visualisation features. Data can be visualised in 2D, 3D, side view or by time.

    Learn more

    General visualisation features

    NaviModel and NaviPac share the same 3D engine, and therefore the same powerful 3D visualisation features. Data can be visualised in 2D, 3D, side view or by time.

    3D seabed terrain

    Seabed terrain can be visualised in a 3D environment.

    3D seabed terrain

    Multiple Map Views

    Multiple Map Views are available.  Each individual Map View window can be configured separately to display only the information required.

    Background Maps

    Background Web Map Service (WMS) maps can be displayed.

    Background Maps

    Import 3D models

    3D models can be imported into NaviModel (drag and drop into the Map View window).

    Import 3D models

    Link 3D models to live objects

    3D models can be linked to any live objects (Vessel, ROV, Scanfish etc).

    Link 3D models to live objects

    2D, 3D and side-view displays

    2D, 3D or Side views allows the user to quickly change the view facilitating better data interpretation.

    3D, 2D and side-view displays

    Visibility Slider

    Visibility slider allows users to compare different DTM’s quickly.  This enables comparison over time or between different data processing methods.

    Visibility slider

    Control colours, lights, details

    DTM light and palette settings can be changed at any time.

    Control colours, lights, details

    Profile views

    The following profile views are available:

    • Cross Profile
    • Long Profile
    • Quick Profile
    • X & Y Axis Profile
    • View Profile
    Profile views

    Create fly-through videos

    Fly-through videos can be created for project or promotional presentations.

    Create fly-through videos
  • Sensor processing

    Sensor processing

    NaviEdit can be used to recalculate data very quickly and where our sensor processing takes place. Here we change offsets, C-O’s, mounting angles, apply tide, apply SVP, de-spike sensors, improve object positioning, Kalman filtering, remove swell etc.

    Learn more

    Sensor processing features

    NaviEdit can recalculate data very quickly and where sensor processing takes place. Here we change offsets, C-O’s, mounting angles, apply tide, apply SVP, de-spike sensors, improve object positioning, Kalman filtering, remove swell etc.

    Multibeam echosounder (MBE)

    MBE data can be both acquired and modelled in NaviSuite.

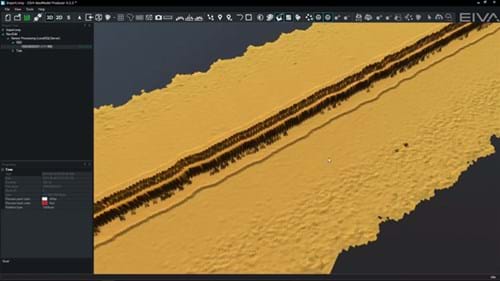

    MBE - multibeam echosounder (NaviEdit to NaviModel)

    Sub-bottom profiler (SBP)

    You are able to work with several SEG-Y files in NaviSuite at the same time. When loading the sub-bottom profiling data, the software extracts a rough track that is then taken through a two-step process of extracting a point every 100 metres, and then refined to 3 metres.

    SBP sub-bottom profiler
  • Sonar and subsea laser data cleaning tools

    Sonar and subsea laser data cleaning tools

    Clean point data with a plethora of tools: manual or automatic, real-time or post-processing.

    Learn more

    Sonar and subsea laser data cleaning

    Clean point data with a plethora of manual or automatic tools. Cleaning operations can be applied multiple times to a complete data set or user-defined areas.

    EIVA’s data cleaning tool EC-3D

    EC-3D supports many automatic and manual data cleaning methods which can be customised and combined for optimal effect. EC-3D is efficient at cleaning data, whether it be 3D or 2D, point clouds or DTMs.

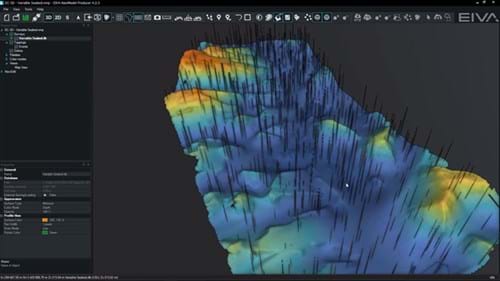

    EC-3D DTM

    Real-time DTM cleaning

    EC-3D cleaning filters can be applied to sonar data in order to clean data in real time as it is being acquired and displayed. The real-time DTM cleaning feature does not modify the acquired data – all the acquired sonar points are available for post-processing after the operation.

    EC-3D dtm cleaning real-time hydrographic

    EC-3D point cloud cleaning

    EC-3D can be used to clean point clouds.

    EC-3D can be used to clean point clouds.

    EC-3D features many data cleaning methods

    Rather than assuming one method will always work perfectly, with EC-3D, you can use a variety of different methods to identify noise in your data. The many data cleaning methods featured in EC-3D include…

    • Histogram spike shooting
    • Histogram plane cleaning
    • Distance to surface (DTM only)
    • Distance to average value
    • Distance to mean value
    • Distance to nearest point
    • Distance to multiple points (median Z)
    • Distance to multiple points (median)
    • Number of points in a sphere
    • Fraction of points in cylinder
    • Vertical cluster

    You can import and customise the parameters of individual cleaning methods.

    EC-3D Automated

    Combine cleaning methods

    You can run multiple cleaning methods simultaneously, combined in different ways. You can save and load your EC-3D method configurations, so you can use them again on several data sets.

    When combining cleaning methods, you can group them as Relative or Absolute. Absolute methods will clean points regardless of any other cleaning method. While Relative methods will clean points in voted-based manner. For example, ‘at least two out of four methods must agree on a point being marked as noise before it is removed’.

    EC-3D data cleaning votes relative methods

    Histogram Spike Shooting

    Histogram Spike Shooting can be used to reject or accept DTM points.

    Points are selected if they are inside a circle.

    Histogram automatically sets the rejection thresholds (can be manually over-ruled).

    Histogram Spike Shooting

    Histogram Plane Cleaning

    Histogram Plane Cleaning tool can be used to reject or accept DTM points.

    Points are selected if they are inside a corridor, polygon or an existing boundary.

    Histogram automatically sets the rejection thresholds (can be manually over-ruled).

    Histogram Plane Cleaning

    Reject & accept points

    You can see which points are being rejected or accepted both on a DTM and in a pie chart to visualise the distribution of accepted and rejected points.

    Reject & Accept Points
  • Point cloud tools

    Point cloud tools

    Create point clouds from sonar and laser systems or from historical XYZ files. Within NaviModel, there are many ways to visualise, edit and optimise point data.

    Learn more

    Point cloud features

    We can create point clouds from sonar and laser systems or from historical XYZ files. Within NaviModel, there are many ways to visualise, edit and optimise point data.

    Import XYZ files

    You can easily model historical data in NaviSuite Kuda and use it for example to plan your survey or compare your results with earlier observations. If you have data in a known format, such as generic ASCII XYZ files, these can be imported as DTMs, point clouds, or TIN models.

    Import XYZ files

    Point clouds with RGB and Intensity

    By default, point clouds can be visualised as a solid colour or as a depth palette. However, if source files contain RGB or Intensity values, we can choose to colour the point cloud with this information instead.

    Point clouds with RGB and Intensity

    EC-3D point cloud cleaning

    EC-3D can be used to clean point clouds.

    EC-3D can be used to clean point clouds.

    Manual cleaning

    A selection window or a polygon can be used to manually clean point clouds.

    Manual cleaning

    Import LAS files and display as RGB or Intensity

    LAS and LAZ files can be imported as DTMs or as point clouds, meaning you can use NaviSuite’s powerful modelling capabilities for validating data in this format. You can also export your model to this format.

    Point Cloud Registration (QuickStitch)

    If point clouds are misaligned, we can use Point Cloud Registration to align them. We accomplish this by first digitising common features, and then performing a least-squared adjustment that moves one point cloud to another.

    Point Cloud Registration (Quickstitch)
  • DTM tools

    DTM tools

    In NaviSuite Digital Terrain Models (DTMs) can be generated, manipulated, and edited with the help of various tools.

    Learn more

    DTM features

    In NaviSuite, Digital Terrain Models (DTMs) can be generated, manipulated, and edited with the help of various tools.

    Create DTM surface from points (sonar & laser)

    DTM surfaces and Point Clouds can be generated at any time from either sonar or laser data.

    Create DTM surface from points (sonar & laser)

    Create different DTM surfaces (mean, max, min, etc) and colour modes

    Different surface types are generated upon data import and can be accessed at any time.

    Light and Palette settings

    DTM light and palette settings can be changed at any time.

    Light and Palette settings

    Visibility Slider

    Visibility slider allows users to compare different DTMs quickly.

    This enables comparison over time or between different data processing methods.

    Visibility slider

    Difference models

    DTMs can be created from the differences between two other existing models.

    Difference models

    Volume calculation

    A volume calculation is the difference between a reference surface and a comparison surface.

    Surfaces can be from a DTM or a TIN model.

    Volume calculations can take place between the following models:

    • DTM vs DTM
    • TIN vs TIN
    • DTM vs TIN
    Volume calculation

    Density surface

    Density colour mode can be enabled to QC how many points are in each DTM cell.

    Density surface

    Custom surface

    It is possible to create custom surfaces based upon hard-coded variables or user-configurable equations.

    Custom surface

    Automatic gap detection

    This tool analyses DTMs to identify areas which have no coverage (i.e. contain gaps).

    Automatic gap detection

    Matchup

    Matchup tool can be used to correct for DTM artefacts caused by incorrect ROV XYZ position.

    Points are moved based upon differences between two existing lines (source and destination).

    Points are moved perpendicular to the destination line.

    Matchup

    Rectify

    Rectify tool can be used to correct for DTM artefacts caused by incorrect ROV XYZ position.

    Points are moved based upon differences between two existing lines (source and destination).

    Points are moved perpendicular and along length to the destination line.

    Rectify

    Level out

    Level out tool can be used to correct for small depth differences between surveys.

    Level-out

    Smooth surface

    Smooth surface tool smooths a DTM surface by an absolute distance or by the number of DTM cells.

    Smooth surface

    CUBE

    Combined Uncertainty and Bathymetric Estimator (CUBE) tool is available in NaviModel and is implemented alongside our other cleaning approaches.

    CUBE

    Find Rocks

    This tool analyses DTMs to identify rock events.

    Find rocks
  • Engineering/Construction Design

    Engineering/Construction Design

    Within NaviModel, we can design trench or rock-placement profiles or import existing engineering drawings from various sources (AutoCAD).

    Learn more

    Engineering/Construction Design features

    Within NaviModel, we can design trench or rock-placement profiles or import existing engineering drawings from various sources (AutoCAD).

    Find Rocks

    This tool analyses DTMs to identify rock events.

    Find rocks

    Trench design

    In NaviModel theoretical trench profiles can be designed and visualised inside a 3D environment.

    If available AutoCAD engineering drawings can also be used.

    Trench design

    Rock-placement design

    In NaviModel theoretical rock-placement profiles can be designed and visualised inside a 3D environment.

    If available AutoCAD engineering drawings can also be used.

    Rock-placement design
  • Line and track tools

    Line and track tools

    We have a large range of tools to create, modify, graph and export lines that are digitised within NaviModel. Digitised lines are multipurpose and are used both online and offline. Some examples of digitised line usage include controlling pipelines and seabed marker positions, creating boundaries, engineering designs and runlines.

    Learn more

    Line and track tool features

    We have a large range of tools to create, modify, graph and export lines that are digitised within NaviModel. Digitised lines are multipurpose and are used both online and offline.

    Modify lines

    Lines can be modified in many different ways.

    Line smooth

    If required, the entire length of the line can be smoothed in XYZ.

    Line smooth

    Local smooth

    Local smooth tool allows you to concentrate on small line sections that require remedial action.

    Local smooth

    Convert waypoints to lines

    Waypoints can be converted to lines via the ASCii Importer.

    Convert waypoints to lines

    Compare lines

    Whilst we can always compare lines visually in the Map View window, sometimes it is better to create graphs for comparison.

    Compare lines
  • Automatic data processing tool

    Automatic data processing tool

    Save time on data processing by automating your workflow – using NaviSuite Workflow Manager, designed to enable a previously unseen degree of automatic data processing of massive amounts of subsea sensor data.

    Learn more

    Automatic processing features

    The NaviSuite Workflow Manager tool is designed to enable a previously unseen degree of automatic data processing of massive amounts of subsea sensor data.

    AUV processing workflow

    The first version of the Workflow Manager utilises NaviEdit and NaviModel for a traditional survey data set processing of data from AUV dive. As soon as the data is available, it is automatically loaded into the flow and processed by cleaning data, merging reprocessed AUV track, building DTMs and making sanity checks. This is typically done using the Server version.

    AUV processing workflow

    NaviSuite Kuda processing workflow

    The Workflow Manager desktop version is very well suited for NaviSuite Kuda operations where each file will be processed right after recording, thus enabling reporting and quality control as you go. The Desktop version runs one task at the time – but it is more than fast enough to cope with survey speed.

    NaviSuite Kuda processing workflow

    Execute multiple parallel NaviEdit, NaviModel and 3rd party commands

    The more CPU (cores), memory and disk speed you have – the better you utilise the workflow engine. The optimal solution is running a bit fewer processes than the number of cores.

    Execute multiple parallel NaviEdit, NaviModel and 3rd party commands
  • Eventing

    Eventing

    The many eventing features include auto-calculation of event types and an easy-to-use event tablet view.

    Learn more

    Eventing features

    The many eventing features include auto-calculation of event types and an easy-to-use event tablet view.

    Configurable event types, hierarchy, and properties

    Client and company specific event collections can be tailored to the activity undertaken.

    During EIVA Days Denmark 2018, we presented a major expansion to the functionality of camera based scanning.

    Configurable event types, hierarchy and properties

    Create events

    Events can be created quickly and are automatically placed onto a DTM.

    Tablet for fast event creation

    Using the eventing tablet view allows for quicker event creation. With the eventing tablet, you can quickly add all events, or customise which events to add with just a few steps.

    Tablet for fast event creation

    Create freespan and burial events

    Pipe and seabed markers are used to create freespan and burial events.

    This means that events and seabed markers always tie-in.

    Create freespan and burial events

    Recalculate events

    Events can be recalculated at any time.

    Recalculate events

    Export events

    User configurable templates can be created to export events in the format required.

    Export events

    Export nearest image and videos

    Images and videos can be exported for each event or for selected events.

    Export nearest image and videos

    Create pipetracker gap events

    Pipetracker gap events are created from continuous sections of rejected pipetracker data.

    Create pipetracker gap events

    You can also automatically identify and generate DTM gap events for quality control.

    Create DTM gap events
  • Videos and images

    Videos and images

    Video and still images that contain time stamps can be combined with other data sources in NaviModel.

    Learn more

    Videos and images features

    Video and still images that contain time stamps can be combined with other data sources in NaviModel.

    Drape images on digitised pipe

    Video images can be wrapped around an existing pipe or digitised line in the Map View window.

    Drape images on digitised pipe

    Play and control video

    Digital video acquired in external systems can be played and controlled inside NaviModel.

    Play and control video

    Synchronise video with track

    In NaviModel the track contains the date and time and must be synchronised with the video time to enable videos to play.

    Normally the video time and track time are recorded in the same time zone. However sometimes this is not the case and we need the option to change the video / track time so that video will play.

    Synchronise video with track

    Adjust video hue, brightness, contrast and gamma levels

    Hue, brightness, contrast and gamma levels can be adjusted to improve badly lit videos.

    Adjust video hue, brightness, contrast and gamma levels

    Display video images (Waterfall)

    Video images can be displayed as a vertical waterfall.

    Display video images (Waterfall)
  • Pipeline tools

    Pipeline tools

    We have a great selection of manual and automatic tools, enabling users to quickly and easily identify the pipeline geometry from its surrounding environment. Pipe and seabed markers can be placed onto DTM surfaces or through data points.

    Learn more

    Pipeline tool features

    We have a great selection of manual and automatic tools, enabling users to quickly and easily identify the pipeline geometry from its surrounding environment. Pipe and seabed markers can be placed onto DTM surfaces or through data points.

    Digitisation of pipe

    Pipeline XYZ position can be manually detected by digitising the pipe marker.

    Digitisation of pipe

    Automatically detect pipe position

    Pipeline XYZ position can be automatically detected.

    Pipe-tracker integration and pipe-tracker statistical tools

    The following pipetracker systems are supported:

    • Teledyne
    • Innovatum
    • Orion

    Pipetracker systems assign quality flags to each pipetracker record.  In NaviEdit the system flags can be used to de-spike pipetracker data.

    In NaviModel the raw and result pipetracker data can be visualised.

    Pipetracker data can be flagged as accepted or rejected in NaviModel over-ruling NaviEdit quality flags.
    Pipe-tracker integration and pipe-tracker statistical tools

    Scan-based pipe location

    Scan Profile scans contain data points from matching port (red) and starboard (green) systems.

    Scan profiles are normally created from acquired Dual Head Scanning Sonar (DHSS) data.

    Once created, Scan Profiles can be used by the Profile Analyser.

    Scan-based pipe location

    Profile Analyser

    Profile Analyser can be used on Scan Profiles or Slice Profiles.

    Profile Analyser places pipe and seabed markers through data points.

    Profile Analyser can create the following markers:

    • Pipe marker
    • Seabed markers
    • Trench markers
    Profile Analyser

    KP Axis view

    KP Axis can be used to view and QC events.

    KP Axis view

    Automatic freespan detection

    Pipe and seabed markers are used to create freespan and burial events.

    This means that events and seabed markers always tie-in.

    Automatic freespan detection
  • Cable lay and planning

    Cable lay and planning

    NaviSuite Beka has advanced functions for both the planning phase and construction phase of cable lay operations.

    Learn more

    Cable lay and planning features

    NaviSuite Beka has advanced functions for both the planning phase and construction phase of cable lay operations.

    Cable route design with bending and slope constraints and cable route vessel placement verification

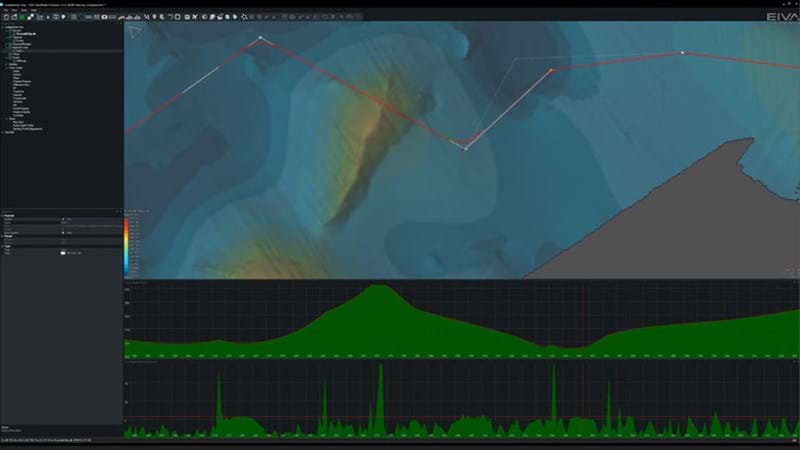

    NaviModel includes a general planning tool for cable and flexible pipe routes. Based on the initial route (imported or drawn), the cable route will be placed on the seabed using the cable characteristics. Operators can then modify the route and in real-time see free-span, side-slopes and curvature. When the final route has been accepted, the system calculates and simulates vessel track using standard catenary data models.

    Cable route design with bending and slope constraints/cable route vessel placement verification
  • Optional extra services and special offers

    Optional extra services and special offers

    EIVA offers a number of services for our NaviSuite software users.

    Learn more

    Optional extra services and special offers

    Get the most out of your software

    EIVA offers a number of services for our NaviSuite software users. These include:

    Also, we have a number of special offers:

  • References

    References

    NaviModel offers high-performance digital terrain models in 2D and 3D and high-tech tools for model analyses and manipulations.

    Learn about some of them

    NaviModel references

    TESSEC

    'Ultra-shallow water positioning for stationary scanners is fairly complex and unprecise, especially when operating in a noisy environment such as a busy access channel and shipyard area. When positioning data is unavailable, EIVA’s NaviSuite software provided tools that guaranteed a difficult process was made easy and intuitive, enabling real-time analysis of data collected just a few hours earlier.'
    Technical Director Thomaz Tessler
    TESSEC Engineering and Maritime Services




    AkerBP

    'A great thing about NaviModel is that you can drop big terrain models in no problem. In projects where we have data sets that range from 1 week to 20 years old they can all be dropped in, and form a patchwork of terrain models, which is really helpful and provides huge benefits’
    Operations Surveyor Matt Cowing
    AkerBP

    Maridive Offshore Projects

    'The EIVA NaviModel tools for cleaning bathymetric data have been and remain the most powerful and rapid tools available.'
    Mohamed Hashem, Offshore Survey Dep. Manager at Maridive Offshore Projects, NaviSuite user for 15 years




    Styvehavn AS

    'NaviSuite Kuda is really an important component for us to be able to deliver these inspection services. Particularly NaviModel, which is a modern, fantastic tool to work with. It can display many kinds of data in 3D and allows us to prepare and deliver state of the art survey data to our clients.'
    General Manager Henrik Halvorsen




    'NaviModel is my go-to solution both for planning and processing. It's stable, reliable, and lets you process huge amounts of data seamlessly (even on PCs that are not so sharp anymore).  It also reduces the time you spend processing.'

    Umberto Guardascione, hydrographic surveyor




    First Marine Solutions

    'When we were assessing what software package to go with, EIVA a/s was a clear choice. It is able to undertake any hydrographic survey operation, both traditionally or remotely. Utilising NaviModel for our client deliverables supports everything we are striving to achieve here at FMS Survey.'

    Survey and Positioning Manager Carl Lafferty

Variant comparison



NaviModel
Viewer

Download free of charge

NaviModel
Analyser

NaviModel
Producer

Open NaviModel project

xxx
View data in projectxxx
Modify settingsxxx
Video recording
(key frames etc)
xxx
Save project xx
Volume calculation xx
Distance measurementsxxx
Export to GIS xx
Generate digital terrain modelsxxx
Compare multiple projects/modelsx*xx
View eventsxxx
Compare events xx
View videoxxx
Generate cross profilesxxx
Point cloud stitching  x
MBE data cleaning  x
Automated data processing via Workflow Manager  x
Automated video eventing via NaviSuite Deep Learning  Add-on option
Automated MBE data cleaning EC-3D  x
3D pipe
- pipe and cable tracker
- pipe digitisation
- pipe markers
- pipe exporters
x*x*Add-on option
Side-scan sonar mosaickingx*x*x
Eventing, video eventing and mosaickingx*x*x
3D and CAD object integrationx*xx
3D subsea data (Pangeo Sub-Bottom Imager)x*xx
Sub-bottom SegY data viewer  x
Generate mesh  x
Integration of GIS, bitmaps, maps, etcx*xx
Real-time sensor integration, connect to SceneServer  x
Coverage assist xx
Channel design etcx*xx
Cable route planner  x
Edit digitised linesxxx
Open runlinesx*xx
Carry out patch testx x
Match-up terrain models  x
Rectify terrain models  x
Visibility sliderxxx
Connect to NaviEdit  x
Connect to CARISxxx
Connect to Fugro Starfix  x
* Feature restricted to viewing data that are part of a project.
