Benefit from the advanced features of the NaviSuite products that are bundled in the NaviSuite Ponto solution, dedicated to single beam hydrographic surveys. It aims to offer you all the necessary tools to carry out time-efficient operations, at a competitive price.

NaviSuite Ponto allows for navigation, survey planning and data acquisition/processing with single beam echo sounders.

Please note: For every licence purchased, you get a single permanent or soft licence with NaviPac Lite, NaviPac Config Lite, NaviEdit Lite and NaviModel Ponto (special version for this bundle variant).

You already have products in your My EIVA basket

This product cannot be added to your basket as you already have products in your My EIVA basket.

excl VAT, excl shipping fee
Get in touch
Delivery time:   A few minutes

As soon as your details are validated, you will receive a licence activation key for any purchased subscriptions by email and a physical dongle with any purchased permanent licences will be shipped to you.

Key features and benefits

  • Increased precision of data

    Increased precision of data

    Increase the precision level by adding the certified EIVA ATTU time-tagging unit as an optional extra.

    Learn more

    Increased precision of data

    ... through the EIVA ATTU time-tagging unit

    As NaviSuite Kuda supports standard vessel navigation equipment such as GPSs, motion reference units (MRUs) and INSs, you are ensured a high precision of your data – a very high precision, if desired, by adding the certified EIVA ATTU time-tagging unit as an optional extra to your NaviSuite Kuda setup. The EIVA ATTU offers a time-tagging accuracy better than 50 µSec, which is far superior to what can be obtained through the use of the standard clock of an ordinary computer.

    The EIVA ATTU time-tagging unit

    The EIVA ATTU time-tagging unit

  • Optional extra services and special offers

    Optional extra services and special offers

    EIVA offers a number of services for our NaviSuite software users.

    Learn more

    Optional extra services and special offers

    Get the most out of your software

    EIVA offers a number of services for our NaviSuite software users. These include:

    Also, we have a number of special offers:

  • General visualisation tools

    General visualisation tools

    NaviModel and NaviPac share the same 3D engine, and therefore the same powerful 3D visualisation features. Data can be visualised in 2D, 3D, side view or by time.

    Learn more

    General visualisation features

    NaviModel and NaviPac share the same 3D engine, and therefore the same powerful 3D visualisation features. Data can be visualised in 2D, 3D, side view or by time.

    3D seabed terrain

    Seabed terrain can be visualised in a 3D environment.

    3D seabed terrain

    Multiple Map Views

    Multiple Map Views are available.  Each individual Map View window can be configured separately to display only the information required.

    Background Maps

    Background Web Map Service (WMS) maps can be displayed.

    Background Maps

    Import 3D models

    3D models can be imported into NaviModel (drag and drop into the Map View window).

    Import 3D models

    Link 3D models to live objects

    3D models can be linked to any live objects (Vessel, ROV, Scanfish etc).

    Link 3D models to live objects

    2D, 3D and side-view displays

    2D, 3D or Side views allows the user to quickly change the view facilitating better data interpretation.

    3D, 2D and side-view displays

    Visibility Slider

    Visibility slider allows users to compare different DTM’s quickly.  This enables comparison over time or between different data processing methods.

    Visibility slider

    Control colours, lights, details

    DTM light and palette settings can be changed at any time.

    Control colours, lights, details

    Profile views

    The following profile views are available:

    • Cross Profile
    • Long Profile
    • Quick Profile
    • X & Y Axis Profile
    • View Profile
    Profile views

    Create fly-through videos

    Fly-through videos can be created for project or promotional presentations.

    Create fly-through videos
  • Navigation and routes

    Navigation and routes

    NaviPac is an integrated navigation and data acquisition software solution that includes surface and subsea navigation, route and waypoint planning, live tracking and piloting.

    Learn more

    Navigation and routes features

    Navigation and data acquisition are integrated in this software solution. Efficiently and easily navigate surface and subsea vessels using intuitive tools to plan routes and waypoints, track or pilot a vessel and more.

    Display live position of a vehicle

    NaviSuite supports display of vehicle data based on the NaviPac data feed. You can display the main vessel along with one subsea vehicle, such as an ROV or ROTV, on an unlimited number of local and remote displays. The data can be shown graphically in multiple map views.

    Live position of multiple objects

    AIS tracks

    NaviSuite supports integration with AIS receivers. The data can be shown in a dedicated AIS window and overlaid in the NaviPac window. You can perform, read and utilise vessel dimension information.

    AIS tracks

    Display north-up, heading-up, route-up

    Each Map View can be designed and controlled individually when it comes to content, overlays and layout. Map Views can be 2D, 3D or side-views, and orientation can be user defined, north-up, vehicle up or line up.

    Display north-up, heading-up, route-up

    Manual waypoint drawing

    NaviSuite supports a series of runline and waypoint formats including our own RLX/WPT format, ad generic ASCII readers. You can also draw lines and points directly in the Map View.

    Manual waypoint drawing

    Various runline patterns (parallel, cross, star)

    You can inherit multiple lines based on the base line defined, such as parallel or cross lines to get an optimal route plan.

    Various runline patterns (parallel, cross, star)

    Vehicle control panel for multiple vehicle runlines and display DOL

    Assignment of lines and waypoints are handled through the dedicated Vehicle Control view, as you may control multiple vehicles simultaneously. Each controlled vehicle will be available as distance offline indicator (DOL/DCC) and various runline information (along line, target ETA etc).

    Vehicle control panel for multiple vehicle runlines and display DOL

    Distance to waypoint

    Waypoints are handled in a similar manner to runlines, as assignment of the waypoint is done in the Vehicle Control View. Hereafter, an artificial runline is created from the vehicle to the point and NaviPac monitors the range/bearing to the destination. and can a,.o. feed that into autopilots and DP systems.

    Distance to waypoint

    Multi-object live range/bearing

    In NaviSuite, you may pair live vessels and monitor the range/bearings between them for online display as live data and range information on Map Views.

    Multi-object live range/bearing

    Auto-pilot (NMEA) control

    When using runlines and waypoints you may connect NaviPac to autopilot systems using e.g., standard NMEA formats and pass cross-track error and destination waypoints on to the equipment.

    Auto-pilot (NMEA) control

    DataUnits

    NaviSuite supports use of other data units in addition to metric. The unit is selected in the project settings and all definition fields are then assumed to be in the selected data unit.
    NaviSuite will follow the selected data unit, but you may, by using a simple keystroke, toggle between metric and data unit if required.
    Data recording will still be metric to guarantee data integrity, but data outputs can be selected freely.

    DataUnits
  • Sensor interfacing and recording

    Sensor interfacing and recording

    Many different sensors can be interfaced and integrated in both NaviScan and NaviPac.

    Learn more

    Sensor interfacing and recording features

    Many different sensors can be interfaced and integrated in both NaviScan and NaviPac.

    Surface positioning and motion (GPS, Gyro, IMU)

    Setting up an entire vessel based project in NaviPac is easy performed using intuitive graphical definition tools. The video covers basic project definition, geodetics and vessel navigation setup.

    Surface positioning and motion (GPS, Gyro, IMU)

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    Setting up remote and subsea vehicles is done in a similar manner to the main vessel – easy and intuitive. Adding instruments, positioning sources (transponders, INS, LBL etx) and defining weighting and Kalman filter settings is possible.

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    SBE - single beam echo sounder

    Single beam echo sounders and other single source data suppliers can easily be interfaced in NaviPac, either via standard drivers or enhanced user-configurable drivers. Data will be available for display in both Helmsman’s Display and DataMon. Single source data can be shown as points clouds in the HMD – and you can automatically derive DTMs out of it.

    SBE single beam echo sounders

    FLS - forward looking sonar (wedge and mosaic)

    NaviScan supports a series of forward looking sonars such as eg. Tritech, Didson and Norbit. The data will be interfaced and recorded in NaviScan and made available for display in HMD as both stand-alone wedge display and 3D wedge display in the Map views.

    FLS forward looking sonar (wedge and mosaic)

    SSS sidescan sonar

    Sidescan data is interfaced in NaviScan and recorded in the SBD data format. The data can be shown both in real-time and in replay in special waterfall data display. This data display will also enable target markings (eventing) and image management.

    SSS sidescan sonar
  • Sensor processing

    Sensor processing

    NaviEdit can be used to recalculate data very quickly and where our sensor processing takes place. Here we change offsets, C-O’s, mounting angles, apply tide, apply SVP, de-spike sensors, improve object positioning, Kalman filtering, remove swell etc.

    Learn more

    Sensor processing features

    NaviSuite can recalculate data very quickly and where sensor processing takes place. Here we change offsets, C-O’s, mounting angles, apply tide, apply SVP, de-spike sensors, improve object positioning, Kalman filtering, remove swell etc.

    Surface positioning and motion (GPS, Gyro, IMU)

    NaviEdit Header Editor allows the user to check the vessel setup.

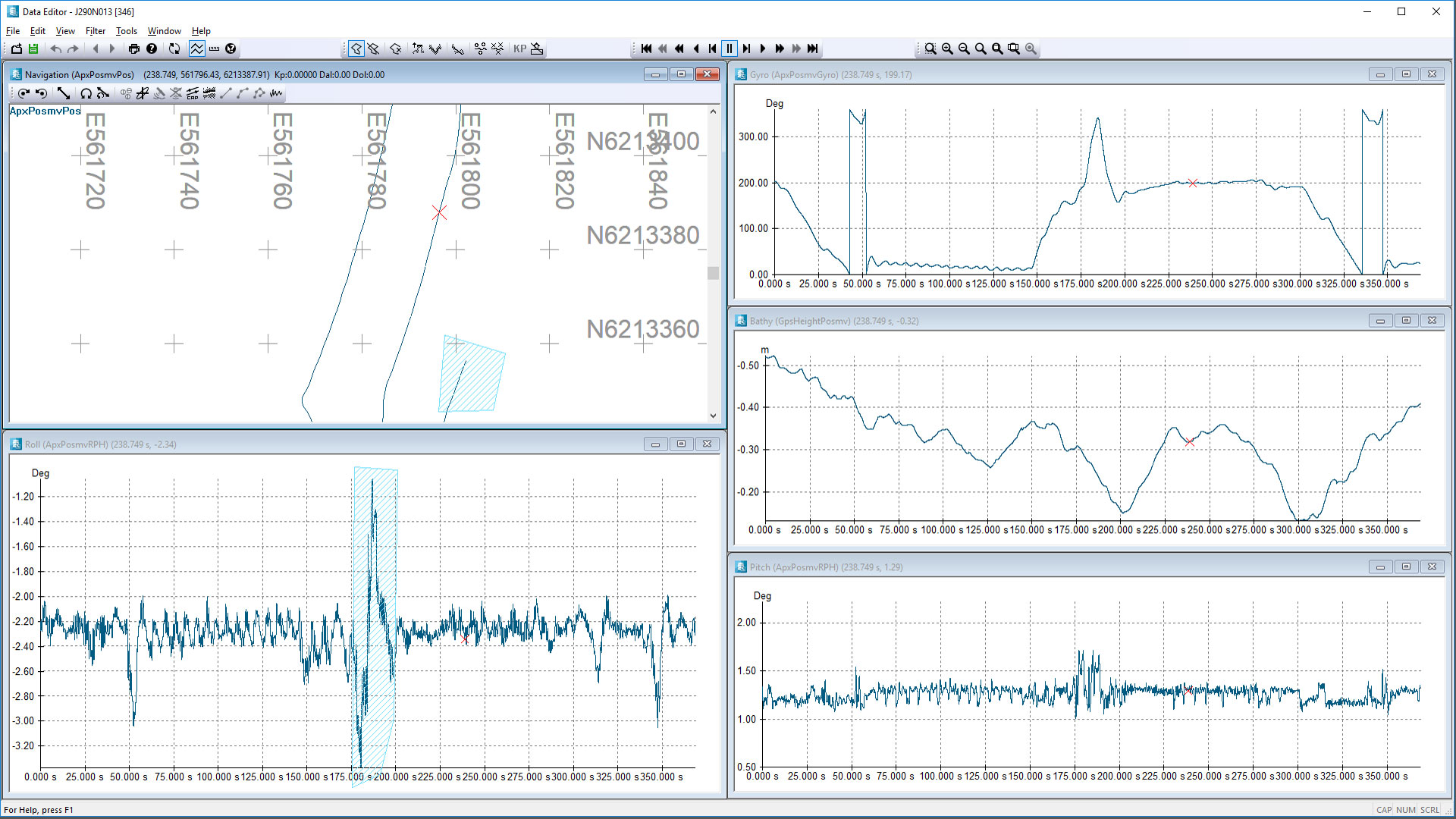

    NaviEdit Data Editor allows the user to view and QC sensor data via a series of graphical displays.

    Surface positioning and motion (GPS, Gyro, IMU)

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    You can check an ROV setup. View and QC sensor data via a series of graphical displays.

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    Tide corrections

    Predicted or observed tides can be imported into NaviSuite using user-defined import templates.

    Tide corrections

    SVP corrections

    CTD or SVP can be imported into NaviSuite using user-defined import templates.

    SVP corrections

    Sub-bottom profiler (SBP)

    You are able to work with several SEG-Y files in NaviSuite at the same time. When loading the sub-bottom profiling data, the software extracts a rough track that is then taken through a two-step process of extracting a point every 100 metres, and then refined to 3 metres.

    SBP sub-bottom profiler

    Change offsets, C-O's and mounting angles

    Sometimes incorrect measured offsets, C-O’s or mounting angles are entered into the online acquisition system. NaviSuite enables you to correct these errors.

    Change offsets, C-O's and mounting angles

    Raybending corrections

    Sometimes Sound Velocity values are incorrect and we need a tool to perform a local correction. In NaviSuite, we can visualise the Sound Velocity corrections before we apply them.

    Raybending corrections

    Sensor editing (import and manual editing)

    If required, you can run the following actions:

    • De-spike
    • Interpolate
    • Delete
    • Translate
    • Scale
    • Rotate
    • Smooth
    Sensor editing (import and manual editing)
  • Sonar cleaning

    Sonar cleaning

    Point data derived from sonar or laser systems can be cleaned, QC’d and edited using a plethora of manual or automatic tools. Cleaning operations can be applied multiple times to a complete data set or user-defined areas. For each cleaning operation, quality flags are assigned to every data point, so you never lose access to the original raw data.

    Learn more

    Sonar cleaning features

    Point data derived from sonar or laser systems can be cleaned, QC’d and edited using a plethora of manual or automatic tools. Cleaning operations can be applied multiple times to a complete data set or user-defined areas.

    EC-3D DTM


    EC-3D supports several cleaning methods and is efficient at cleaning both 3D and 2D data.

    It can be used to clean seabed DTMs.

    EC-3D DTM

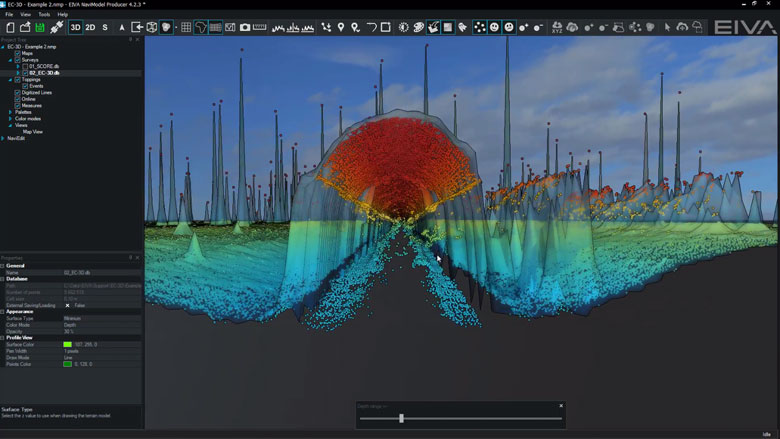

    EC-3D Pipeline

    EC-3D can be used to clean pipeline DTMs.

    EC-3D Pipeline

    EC-3D point cloud cleaning

    EC-3D can be used to clean point clouds.

    EC-3D can be used to clean point clouds.

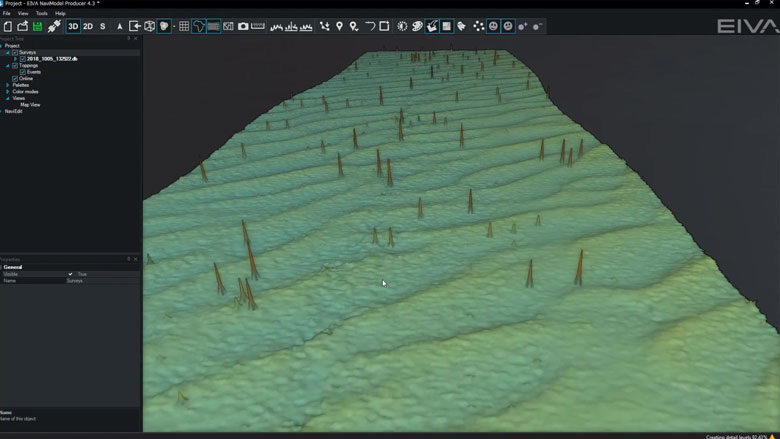

    EC-3D Automated

    EC-3D can be used to automatically clean point clouds or DTMs.

    EC-3D Automated

    Histogram Spike Shooting

    Histogram Spike Shooting can be used to reject or accept DTM points.

    Points are selected if they are inside a circle.

    Histogram automatically sets the rejection thresholds (can be manually over-ruled).

    Histogram Spike Shooting

    Histogram Plane Cleaning

    Histogram Plane Cleaning tool can be used to reject or accept DTM points.

    Points are selected if they are inside a corridor, polygon or an existing boundary.

    Histogram automatically sets the rejection thresholds (can be manually over-ruled).

    Histogram Plane Cleaning

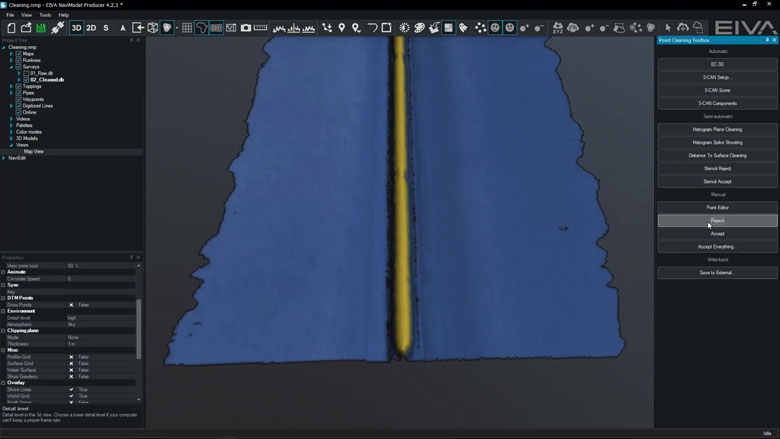

    Reject & Accept Points

    These tools can be used to reject or accept DTM points.

    Points are selected if they are inside a corridor, polygon or an existing boundary.

    Reject & Accept Points

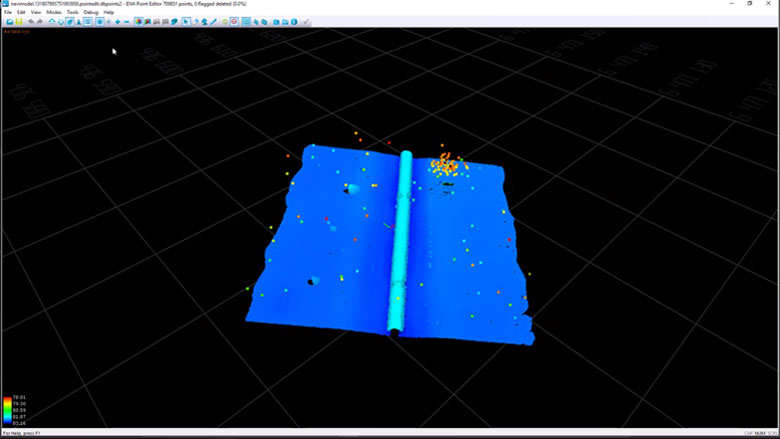

    Point Editor

    Point Editor can be used to manually reject or accept DTM points using an eraser (square select) or a region (polygon select). This tool will soon be replaced with a newer version within NaviModel.

    Point Editor
  • Point cloud tools

    Point cloud tools

    Create point clouds from sonar and laser systems or from historical XYZ files. Within NaviModel, there are many ways to visualise, edit and optimise point data.

    Learn more

    Point cloud features

    We can create point clouds from sonar and laser systems or from historical XYZ files. Within NaviModel, there are many ways to visualise, edit and optimise point data.

    Import XYZ files

    You can easily model historical data in NaviSuite Kuda and use it for example to plan your survey or compare your results with earlier observations. If you have data in a known format, such as generic ASCII XYZ files, these can be imported as DTMs, point clouds, or TIN models.

    Import XYZ files

    Point clouds with RGB and Intensity

    By default, point clouds can be visualised as a solid colour or as a depth palette. However, if source files contain RGB or Intensity values, we can choose to colour the point cloud with this information instead.

    Point clouds with RGB and Intensity

    EC-3D point cloud cleaning

    EC-3D can be used to clean point clouds.

    EC-3D can be used to clean point clouds.

    Manual cleaning

    A selection window or a polygon can be used to manually clean point clouds.

    Manual cleaning

    Import LAS files and display as RGB or Intensity

    LAS and LAZ files can be imported as DTMs or as point clouds, meaning you can use NaviSuite’s powerful modelling capabilities for validating data in this format. You can also export your model to this format.

    Point Cloud Registration (QuickStitch)

    If point clouds are misaligned, we can use Point Cloud Registration to align them. We accomplish this by first digitising common features, and then performing a least-squared adjustment that moves one point cloud to another.

    Point Cloud Registration (Quickstitch)

    Large Point Clouds

    Large Point Cloud Viewer supports point clouds of virtually unlimited size.

    Large Point Clouds
  • DTM tools

    DTM tools

    In NaviSuite Digital Terrain Models (DTMs) can be generated, manipulated, and edited with the help of various tools.

    Learn more

    DTM features

    In NaviSuite, Digital Terrain Models (DTMs) can be generated, manipulated, and edited with the help of various tools.

    Create DTM surface from points (sonar & laser)

    DTM surfaces and Point Clouds can be generated at any time from either sonar or laser data.

    Create DTM surface from points (sonar & laser)

    Create different DTM surfaces (mean, max, min, etc) and colour modes

    Different surface types are generated upon data import and can be accessed at any time.

    Light and Palette settings

    DTM light and palette settings can be changed at any time.

    Light and Palette settings

    Visibility Slider

    Visibility slider allows users to compare different DTMs quickly.

    This enables comparison over time or between different data processing methods.

    Visibility slider

    Difference models

    DTMs can be created from the differences between two other existing models.

    Difference models

    Volume calculation

    A volume calculation is the difference between a reference surface and a comparison surface.

    Surfaces can be from a DTM or a TIN model.

    Volume calculations can take place between the following models:

    • DTM vs DTM
    • TIN vs TIN
    • DTM vs TIN
    Volume calculation

    Density surface

    Density colour mode can be enabled to QC how many points are in each DTM cell.

    Density surface

    Custom surface

    It is possible to create custom surfaces based upon hard-coded variables or user-configurable equations.

    Custom surface

    Automatic gap detection

    This tool analyses DTMs to identify areas which have no coverage (i.e. contain gaps).

    Automatic gap detection

    Matchup

    Matchup tool can be used to correct for DTM artefacts caused by incorrect ROV XYZ position.

    Points are moved based upon differences between two existing lines (source and destination).

    Points are moved perpendicular to the destination line.

    Matchup

    Rectify

    Rectify tool can be used to correct for DTM artefacts caused by incorrect ROV XYZ position.

    Points are moved based upon differences between two existing lines (source and destination).

    Points are moved perpendicular and along length to the destination line.

    Rectify

    Level out

    Level out tool can be used to correct for small depth differences between surveys.

    Level-out

    Smooth surface

    Smooth surface tool smooths a DTM surface by an absolute distance or by the number of DTM cells.

    Smooth surface

    CUBE

    Combined Uncertainty and Bathymetric Estimator (CUBE) tool is available in NaviModel and is implemented alongside our other cleaning approaches.

    CUBE

    Find Rocks

    This tool analyses DTMs to identify rock events.

    Find rocks
  • Line and track tools

    Line and track tools

    We have a large range of tools to create, modify, graph and export lines that are digitised within NaviModel. Digitised lines are multipurpose and are used both online and offline. Some examples of digitised line usage include controlling pipelines and seabed marker positions, creating boundaries, engineering designs and runlines.

    Learn more

    Line and track tool features

    We have a large range of tools to create, modify, graph and export lines that are digitised within NaviModel. Digitised lines are multipurpose and are used both online and offline.

    Modify lines

    Lines can be modified in many different ways.

    Line smooth

    If required, the entire length of the line can be smoothed in XYZ.

    Line smooth

    Local smooth

    Local smooth tool allows you to concentrate on small line sections that require remedial action.

    Local smooth

    Convert waypoints to lines

    Waypoints can be converted to lines via the ASCii Importer.

    Convert waypoints to lines

    Compare lines

    Whilst we can always compare lines visually in the Map View window, sometimes it is better to create graphs for comparison.

    Compare lines
  • Automatic data processing tool

    Automatic data processing tool

    Save time on data processing by automating your workflow – using NaviSuite Workflow Manager, designed to enable a previously unseen degree of automatic data processing of massive amounts of subsea sensor data.

    Learn more

    Automatic processing features

    The NaviSuite Workflow Manager tool is designed to enable a previously unseen degree of automatic data processing of massive amounts of subsea sensor data.

    AUV processing workflow

    The first version of the Workflow Manager utilises NaviEdit and NaviModel for a traditional survey data set processing of data from AUV dive. As soon as the data is available, it is automatically loaded into the flow and processed by cleaning data, merging reprocessed AUV track, building DTMs and making sanity checks. This is typically done using the Server version.

    AUV processing workflow

    NaviSuite Kuda processing workflow

    The Workflow Manager desktop version is very well suited for NaviSuite Kuda operations where each file will be processed right after recording, thus enabling reporting and quality control as you go. The Desktop version runs one task at the time – but it is more than fast enough to cope with survey speed.

    NaviSuite Kuda processing workflow

    Execute multiple parallel NaviEdit, NaviModel and 3rd party commands

    The more CPU (cores), memory and disk speed you have – the better you utilise the workflow engine. The optimal solution is running a bit fewer processes than the number of cores.

    Execute multiple parallel NaviEdit, NaviModel and 3rd party commands
  • Eventing

    Eventing

    The many eventing features include auto-calculation of event types and an easy-to-use event tablet view.

    Learn more

    Eventing features

    The many eventing features include auto-calculation of event types and an easy-to-use event tablet view.

    Configurable event types, hierarchy, and properties

    Client and company specific event collections can be tailored to the activity undertaken.

    During EIVA Days Denmark 2018, we presented a major expansion to the functionality of camera based scanning.

    Configurable event types, hierarchy and properties

    Create events

    Events can be created quickly and are automatically placed onto a DTM.

    Tablet for fast event creation

    Using the eventing tablet view allows for quicker event creation. With the eventing tablet, you can quickly add all events, or customise which events to add with just a few steps.

    Tablet for fast event creation

    Create freespan and burial events

    Pipe and seabed markers are used to create freespan and burial events.

    This means that events and seabed markers always tie-in.

    Create freespan and burial events

    Recalculate events

    Events can be recalculated at any time.

    Recalculate events

    Export events

    User configurable templates can be created to export events in the format required.

    Export events

    Export nearest image and videos

    Images and videos can be exported for each event or for selected events.

    Export nearest image and videos

    Create pipetracker gap events

    Pipetracker gap events are created from continuous sections of rejected pipetracker data.

    Create pipetracker gap events
  • Videos and image display tools

    Videos and image display tools

    Combine data sources in the intuitive interface of NaviModel, including videos and still images that contain time stamps.

    Learn more

    Videos and images features

    Video and still images that contain time stamps can be combined with other data sources in NaviModel.

    Play and control video

    Digital video acquired in external systems can be played and controlled inside NaviModel.

    Play and control video

    Synchronise video with track

    In NaviModel the track contains the date and time and must be synchronised with the video time to enable videos to play.

    Normally the video time and track time are recorded in the same time zone. However sometimes this is not the case and we need the option to change the video / track time so that video will play.

    Synchronise video with track

    Adjust video hue, brightness, contrast and gamma levels

    Hue, brightness, contrast and gamma levels can be adjusted to improve badly lit videos.

    Adjust video hue, brightness, contrast and gamma levels
EIVA LIVE - Dive into EIVA's software and hardware solutions for the maritime industry

Want to attend free webinars?

Our upcoming webinars showcase solutions such as an autopilot and software for autonomous hydrographic surveys, as well as new automated ROV inspection modes. The ongoing EIVA LIVE webinar series keeps you up to date on our latest software and hardware developments – with the possibility to dive deeper and ask our experts questions.
