NaviSuite Kuda Core + Processing

Supplier:
EIVA
Product no :
NS.KUCOP

Unmatched capabilities at affordable prices for hydrographic surveys

The NaviSuite Kuda software is dedicated to USV- and vessel-based hydrographic surveys, offering you all the necessary tools to carry out cost- and time-efficient bathymetric survey operations. With a variety of variants of this software bundle available, you can pick the one best tailored to your needs and budget.

The software provides high-performing features focusing on simplicity, automation and autonomy, while also enabling you to carry out remote operations

Depending on the variant, these features can include automatic generation of runlines; vessel/USV autopilot control; registration of objects/observations of interest; automatic data cleaning during acquisition and post-processing; volume and difference calculation; as well as automatic, remote/onboard data processing. The end-result is extensive deliverables and visualisations with high-quality bathymetric data.

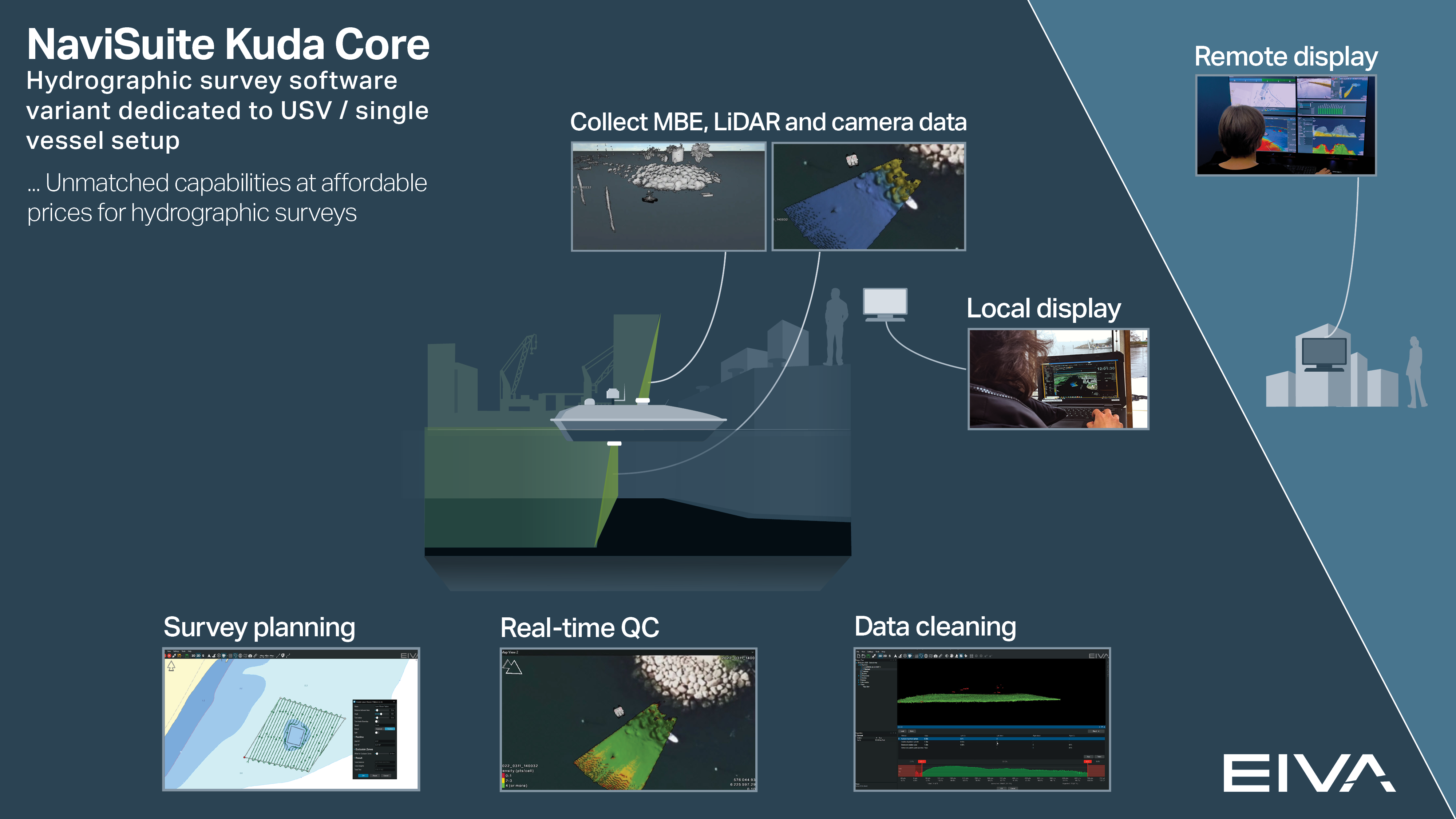

The NaviSuite Kuda software bundle includes four variants. The NaviSuite Kuda Core + Processing variant is dedicated to USV / single vessel setups and allows for…
  • Navigation, survey planning as well as data acquisition and processing with multi-beam echo sounders (incl backscatter), LiDARs and cameras
  • One local and one remote display
  • Easy-to-use user interface bringing all relevant tools to your monitor, including patch test and online cleaning
Scroll down to check out an overview of what you get with the different variants in the product comparison table.

Please note: When you purchase this product, you will receive a licence with NaviSuite Kuda Core and NaviSuite Kuda Core Config; and a licence with NaviEdit Kuda Core and NaviModel Kuda Core (incl EC-3D and Workflow Manager – Desktop).

You already have products in your My EIVA basket

This product cannot be added to your basket as you already have products in your My EIVA basket.

excl VAT, excl shipping fee
Get in touch
Delivery time:   A few minutes

As soon as your details are validated, you will receive a licence activation key for any purchased subscriptions by email and a physical dongle with any purchased permanent licences will be shipped to you.

Key features and benefits

  • Cutting a long hydrographic survey story short: What you get

    Cutting a long hydrographic survey story short: What you get

    Diving further into the details of how the NaviSuite Kuda software will streamline your USV- and vessel-based hydrographic surveys.

    Learn more

    Cutting a long hydrographic survey story short: What you get...

    Diving further into the details of how the NaviSuite Kuda software will streamline your USV- and vessel-based hydrographic surveys:

    Choose the bundle variant that matches your survey spread and your budget
    … ranging from the NaviSuite Kuda Core entry-level variants for USV / single vessel setups to NaviSuite Kuda Pro for more complex and extensive hydrographic survey operations

    Easy configuration
    … through an intuitive user interface bringing all relevant features to your monitor, including a patch test tool

    Automatic data cleaning
    …. through a variety of cleaning methods, allowing for customisable configuration, also during acquisition

    Automatic data processing (only available in the + Processing variants)
    …. by enabling you to set up an automatic workflow, letting the software do the hard work even for massive amounts of data

    Bring autonomy onboard your hydrographic operations
    … through support of autopilot route planning and control, as well as real-time optimisation of survey area coverage

    Let your team join your hydrographic operations remotely
    … through the possibility of remote supervision, control and data processing

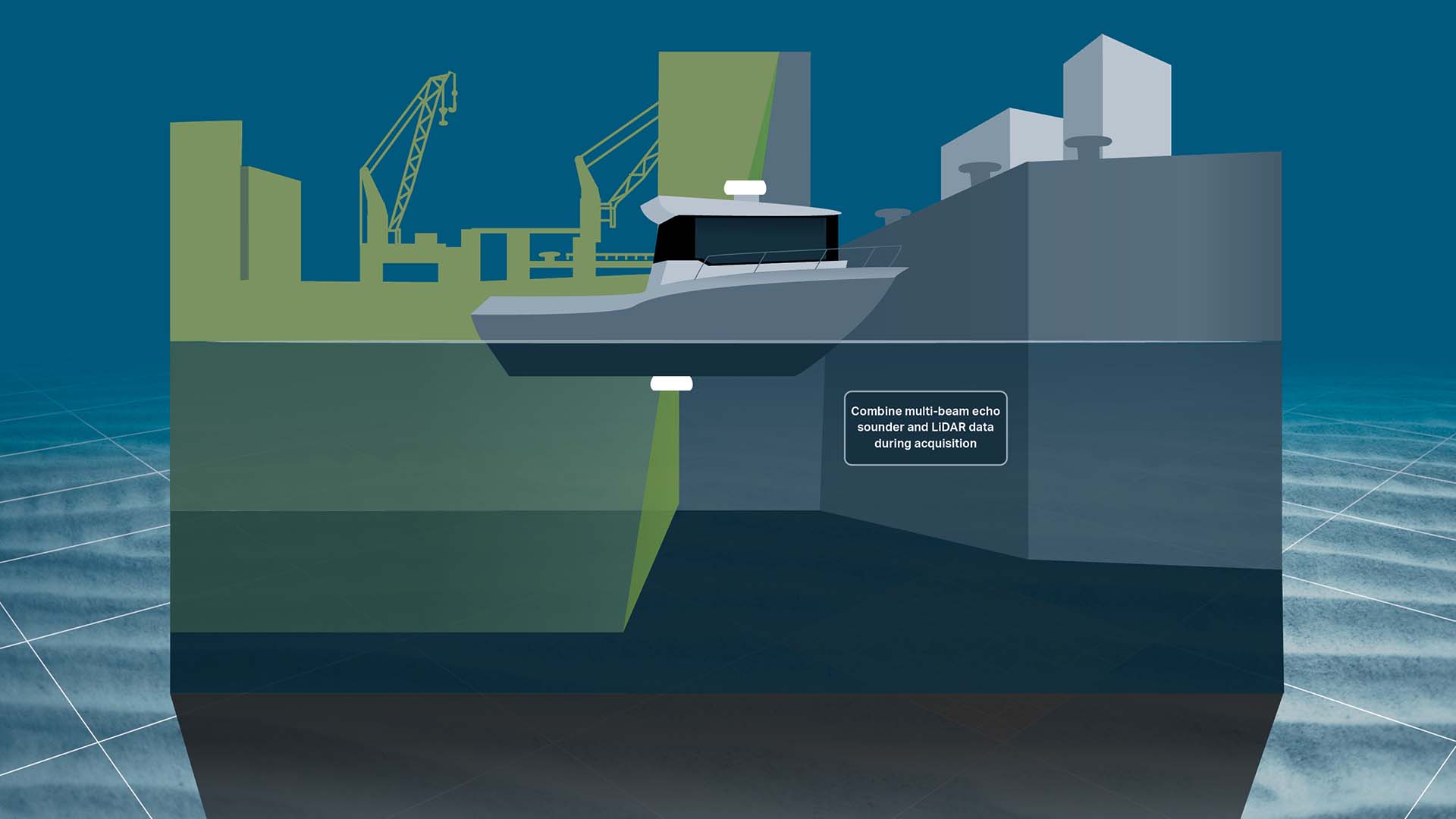

    Combination of several hydrographic survey data types
    … through interfacing to high-tech sonars, LiDARs and cameras, thereby reducing cost of survey and the risk of errors

    High-performance bathymetric data acquisition and processing in real time
    … as the size of data sets is only limited by disc capacity and it is possible to make terrain models on the fly, thereby allowing for better bathymetric survey data quality and fast reporting

    Easy registration of objects/observations of interest and survey logging
    … though a dedicated tool available during both acquisition and processing

    Increased precision of data
    … through interfacing to standard vessel navigation equipment and the possibility to purchase the EIVA ATTU time-tagging unit as an optional extra

    Taking your hydrographic surveys to the next level

    NaviSuite Kuda is the optimal solution for time-efficient, high-quality bathymetric surveys, such as harbour and waterway surveys, as well as construction inspections.

    By bundling the NaviSuite features relevant to hydrographic survey operations into a dedicated single-user solution, you get an affordable toolbox without compromising on the quality of its contents or its capacity.

    As NaviSuite Kuda is part of the NaviSuite family, you can easily upgrade your solution should your needs change in terms of licences or features. In other words, you can go from a single-user setup to a large network installation with multiple operators and remote displays without changing software, and even expand on the list of services offered to your end-clients – while keeping training costs to a minimum.

    Set test sails during your next hydrographic survey operation – Get a free 30-day trial package

    EIVA offers all bathymetric survey professionals who are new to the EIVA NaviSuite software world a 30-day free trial package on the NaviSuite Kuda software, no strings attached.

  • Covers all relevant instruments for hydrographic surveys

    Covers all relevant instruments for hydrographic surveys

    NaviSuite Kuda interfaces with a long list of high-tech sonar equipment, LiDARs and cameras.

    Learn more

    Covers all relevant instruments for hydrographic surveys

    NaviSuite Kuda interfaces with a long list of high-tech sonar equipment, LiDARs and cameras

    Moreover, the EIVA crew encompasses experienced engineers specialising in software and sensor technology. This means that you get a software solution developed by a highly qualified team of experts who know how to ensure that you benefit the most from the technologies included in your hydrographic survey spread.

    Eliminate the need for manufacturer-developed software

    In addition to cameras and LiDARs, the list of sonar types which NaviSuite Kuda interfaces with includes multi-beam echo sounders (supported by all NaviSuite Kuda variants), sidescan sonars, sub-bottom profiler and magnetometers. More simple solutions such as single beam echo sounders are also covered by the more than 500 drivers included in the bundle (supported by the NaviSuite Kuda Pro variants).

    The software allows for support of multiple sensor heads at the same time (limited to dual head in the NaviSuite Kuda Core variants) during your hydrographic survey operations and tracking of a towed or remotely operated vehicle via USBL (available in the NaviSuite Kuda Pro variants).

    NaviSuite Kuda allsow for AIS connections and interfaces to standard navigation equipment (GPS, MRU, INS, etc), allows for S-57 generation (optional extra) and supports SevenCs charts, raster maps such as GeoTIFF files from, for example, satellite images, 2D/3D CAD and GIS objects. In addition, you can export your results to GISs and videos in NaviSuite Kuda + Processing variants, as well as load saved projects into the free NaviModel Viewer.

    Consequently, the need for manufacturer-developed software is eliminated, and you only have to invest in a single software solution for your hydrographic surveys. Moreover, as you are not working with several different solutions and data formats, the risk of errors is vastly reduced.

    … Then apply the raw data throughout the workflow of your hydrographic surveys

    In NaviSuite Kuda, the acquired data can be applied as raw data and combined throughout your acquisition and processing workflow. This means that you save time and are able to create a single end report with all relevant hydrographic/bathymetric data included.

    Optional extra unit: Increase precision of data

    As NaviSuite Kuda supports standard vessel navigation equipment such as GPSs, motion reference units (MRUs) and INSs, you are ensured a high precision of your data – a very high precision, if desired, by adding the certified EIVA ATTU time-tagging unit as an optional extra to your NaviSuite Kuda setup. The EIVA ATTU offers a time-tagging accuracy better than 50 µSec, which is far superior to what can be obtained through the use of the standard clock of an ordinary computer.

  • Optional extra services and special offers

    Optional extra services and special offers

    EIVA offers a number of services for our NaviSuite software users.

    Learn more

    Optional extra services and special offers

    Get the most out of your software

    EIVA offers a number of services for our NaviSuite software users. These include:

    Also, we have a number of special offers:

  • References

    References

    NaviSuite Kuda is used by hydrographic specialists throughout the world.

    Learn about some of them

    NaviSuite Kuda references

    Clinton

    'Clinton will use NaviSuite for all our projects during 2016 and onward. The strategy to use NaviSuite for shallow hydrographic surveys has created a smooth processing workflow and increased competence for our personnel by using only one standardised software flow. The clients will benefit from higher quality and more cost-effective operations in the coming projects.'

    Anders Wikmar, Survey Manager

    Styvehavn AS

    'NaviSuite Kuda is really an important component for us to be able to deliver these inspection services. Particularly NaviModel, which is a modern, fantastic tool to work with. It can display many kinds of data in 3D and allows us to prepare and deliver state of the art survey data to our clients.'
    General Manager Henrik Halvorsen

    'Thank you EIVA for developing fantastic, powerful software tools. Given the fantastic technology we possess, from a high-end multi-beam echo sounder system to complex and powerful EIVA software, there is so much we can do, so much we can improve to end up with even greater products for our clients.'
    General Manager Henrik Halvorsen

    SensorSurvey

    'Having flexible survey software is essential for a small survey company like SensorSurvey. For us, it’s important to be able to interface whatever survey equipment – be it multi-beam, LiDAR, side-scan or seismic – simultaneously, and to be able to take this data and produce professional documentation to our clients’ satisfaction. NaviSuite Kuda allows us to do just that.'

    Flemming A. Christensen, Owner and General Manager

    1 operator plus 4 hours of mobilisation and surveying equal extensive and detailed survey results in NaviSuite Kuda

    In August 2016, EIVA participated at a Renishaw demo day which included preparing and conducting a LiDAR/MBE harbour survey with NaviSuite Kuda. The demo proved the capabilities and cost-effectiveness of the solution as illustrated in this video. Get all the details

  • General visualisation tools

    General visualisation tools

    Perform advanced data interpretation with powerful and easy-to-use tools for visualising models in 2D, 3D, side view or by time.

    Learn more

    General visualisation features

    Take a peek at NaviSuite’s powerful visualisation features – data can be visualised in 2D, 3D, side view or by time.

    3D seabed terrain

    Visualise seabed terrain in the powerful 3D environment of NaviSuite, which provides many easy-to-use tools to effectively display data of interest. You can model the seabed terrain in colour modes representing information of the data modelled such as depth, slope, intensity, backscatter, standard deviation and ETC. These different colour modes can be displayed alongside each other in different views of your model, as well as with added contour lines (see an example in the video below).

    Smoothly navigate survey results in NaviSuite’s high-performing 3D environment. NaviSuite uses a highly effective LOD method for visualising models, allowing the software to ensure optimal data presentation by making the most of your graphics card.

    3D seabed terrain

    Multiple Map Views

    You can display different views simultaneously, so you can keep track of different information visually. Map Views can for example be a map showing your location, 3D visualisations viewed from different angles and visualisations of data from different sensors. Each individual Map View window can be configured separately, so you can make a Map View displaying virtually any information you require.

    Background Maps

    You can import existing third-party maps for example for line planning, navigation and procession quality control. Maps which can be displayed in NaviSuite include background maps from Web Map Service (WMS), geocoded images (for example geotiff), CAD drawings (for example DXF or DWG) and MicroStation drawings.

    Background Maps

    Import 3D models

    3D models can be imported into NaviSuite (drag and drop into the Map View window) and displayed in this high-performance solution. This means that you can add 3D models of permanent structures on the seabed, such as foundations for offshore wind turbines, as well as templates for structures yet to be built. Not only that, NaviSuite also allows you to use a 3D model to display a dynamically positioned object, such as your vessel.

    Import 3D models

    Link a 3D models to the vessel

    Ensure quality control by getting a better view of the true scale of your model. NaviSuite allows the operator to attach real 3D models of vessels and vehicles to the 3D seabed display. The models can for example be in 3DS, STEP and OBJ mesh formats.

    Link 3D models to live objects

    2D, 3D and side-view displays

    NaviSuite facilitates better data interpretation by making it easy for the user to quickly change the view displayed. Display options are 2D, 3D and side-view, as shown in the tool bar. Orientation can be user-defined, north up, vehicle up or line up.

    3D, 2D and side-view displays

    Visibility Slider

    The visibility slider allows users to compare different DTMs quickly.  This enables comparison over time or between different data processing methods, in 2D and 3D.

    Visibility slider

    Control colours, lights and details

    Effectively visualise information of interest by adjusting the light and palette settings on your DTM at any time. You can for example adjust brightness and shade settings, as well as use a variety of colour palettes, from grey scale to rainbow. Get a peek at the options in the following video.

    Control colours, lights, details

    Profile views

    The following profile views are available:

    • Cross Profile
    • Long Profile
    • Quick Profile
    • X & Y Axis Profile
    • View Profile
    Profile views

    Create fly-through videos

    Fly-through videos can be created for project or promotional presentations.

    Create fly-through videos
  • Autonomy tools

    Autonomy tools

    Perform autonomous operations with tools to automate your survey every step of the way – from survey route planning to remote controlled, autopilot operations.

    Learn more

    Features enabling autonomous operations

    NaviSuite Kuda enables autonomous operations with tools to automate your survey every step of the way – from survey route planning to remote controlled, autopilot operations. Dive into how…

    Automatic survey route planning tools

    Ensure efficient coverage during surveys with tools for survey route planning. These intuitive tools help ensure your survey is performed optimally – through highly customisable and automated route planning.

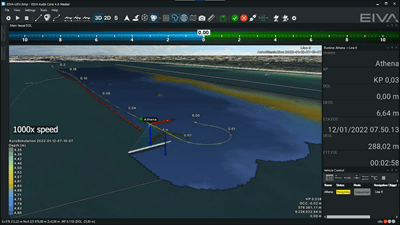

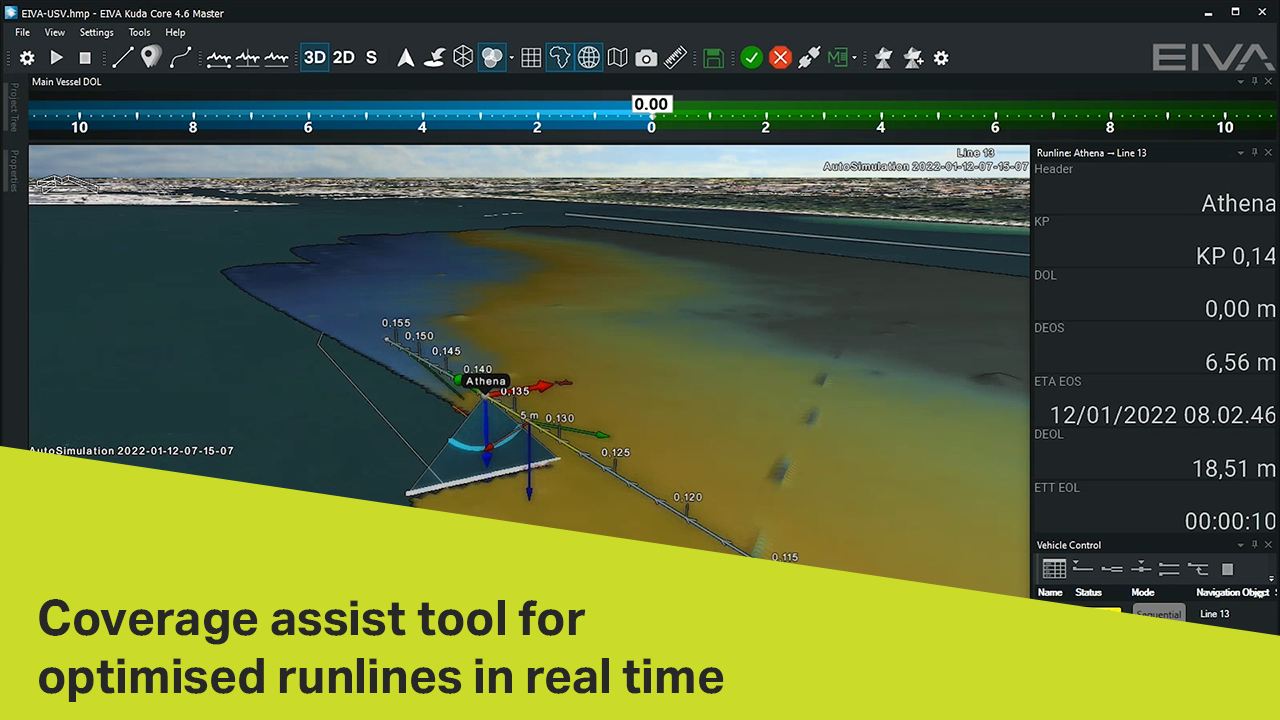

    Onboard automatic route planning during surveys

    Conditions such as the weather can influence your coverage during a survey. In order to adapt to such factors, you can use the Coverage Assist tool, which plans runlines in real-time during the survey. Each time it creates a runline, it considers the previous surveyed line, as well as the optimal route for turning. This saves you time as it makes decisions onboard the vessel in real-time.

    Autopilot route planning by defining a boundary

    The vehicle route can be automatically created before a survey, based on a boundary. If your vessel has an NMEA autopilot, you can export route plans from NaviSuite to the onboard piloting system.

    You can design the lawn mower type pattern depending on the desired spacing and orientation. You can also create an exclusion zone within the boundary.

    Remote control from anywhere in the world

    NaviSuite software enables you to operate control systems from anywhere in the world. For example, L3HARRIS performed a harbour survey with a USV in the UK while the data control was streamed to Brazil.

    Remote control even at low bandwidth

    One of the challenges to remote control is low data bandwidth. With NaviSuite you can overcome this in several ways…

    Live data compression

    You can compress survey data in many ways to ensure uninterrupted signal. NaviSuite compression tools work on multi-beam echosounder, sidescan, laser and forward-looking sonar data.

    The settings you can adjust include Along, which allows you to skip scans. As well as Across, which reduces the points across the scan, and analyses points with respect to depth change to then keep more points where there are areas of change.

    Pre-plan autonomous underwater vehicle (AUV) operations

    NaviSuite lets you remotely control an AUV without requiring constant connection. You can send small mission updates to your AUV, requiring only one good link moment to input your instructions – for example to go at a certain depth, pitch and heading. This capability means that no matter if the connection fails, the AUV will follow the directions you input in your latest mission update.



  • Sensor processing tools

    Sensor processing tools

    NaviSuite Kuda can recalculate data very quickly and where sensor processing takes place. Here we change offsets, C-O’s, mounting angles, apply tide, apply SVP, de-spike sensors, improve object positioning, Kalman filtering, remove swell etc.

    Learn more

    Sensor processing features

    NaviSuite can recalculate data very quickly and where sensor processing takes place. Here we change offsets, C-O’s, mounting angles, apply tide, apply SVP, de-spike sensors, improve object positioning, Kalman filtering, remove swell etc.

    Multibeam echosounder (MBE)

    MBE data can be both acquired and modelled in NaviSuite.

    MBE - multibeam echosounder (NaviEdit to NaviModel)

    Tide corrections

    Predicted or observed tides can be imported into NaviSuite using user-defined import templates.

    Tide corrections

    SVP corrections

    CTD or SVP can be imported into NaviSuite using user-defined import templates.

    SVP corrections

    Change offsets, C-O's and mounting angles

    Sometimes incorrect measured offsets, C-O’s or mounting angles are entered into the online acquisition system. NaviSuite enables you to correct these errors.

    Change offsets, C-O's and mounting angles

    Raybending corrections

    Sometimes Sound Velocity values are incorrect and we need a tool to perform a local correction. In NaviSuite, we can visualise the Sound Velocity corrections before we apply them.

    Raybending corrections

    Sensor editing (import and manual editing)

    If required, you can run the following actions:

    • De-spike
    • Interpolate
    • Delete
    • Translate
    • Scale
    • Rotate
    • Smooth
    Sensor editing (import and manual editing)
  • Sonar and subsea laser data cleaning tools

    Sonar and subsea laser data cleaning tools

    Clean point data with a plethora of tools: manual or automatic, real-time or post-processing.

    Learn more

    Sonar and subsea laser data cleaning

    Clean point data with a plethora of manual or automatic tools. Cleaning operations can be applied multiple times to a complete data set or user-defined areas.

    EIVA’s data cleaning tool EC-3D

    EC-3D supports many automatic and manual data cleaning methods which can be customised and combined for optimal effect. EC-3D is efficient at cleaning data, whether it be 3D or 2D, point clouds or DTMs.

    EC-3D DTM

    Real-time DTM cleaning

    EC-3D cleaning filters can be applied to sonar data in order to clean data in real time as it is being acquired and displayed. The real-time DTM cleaning feature does not modify the acquired data – all the acquired sonar points are available for post-processing after the operation.

    EC-3D dtm cleaning real-time hydrographic

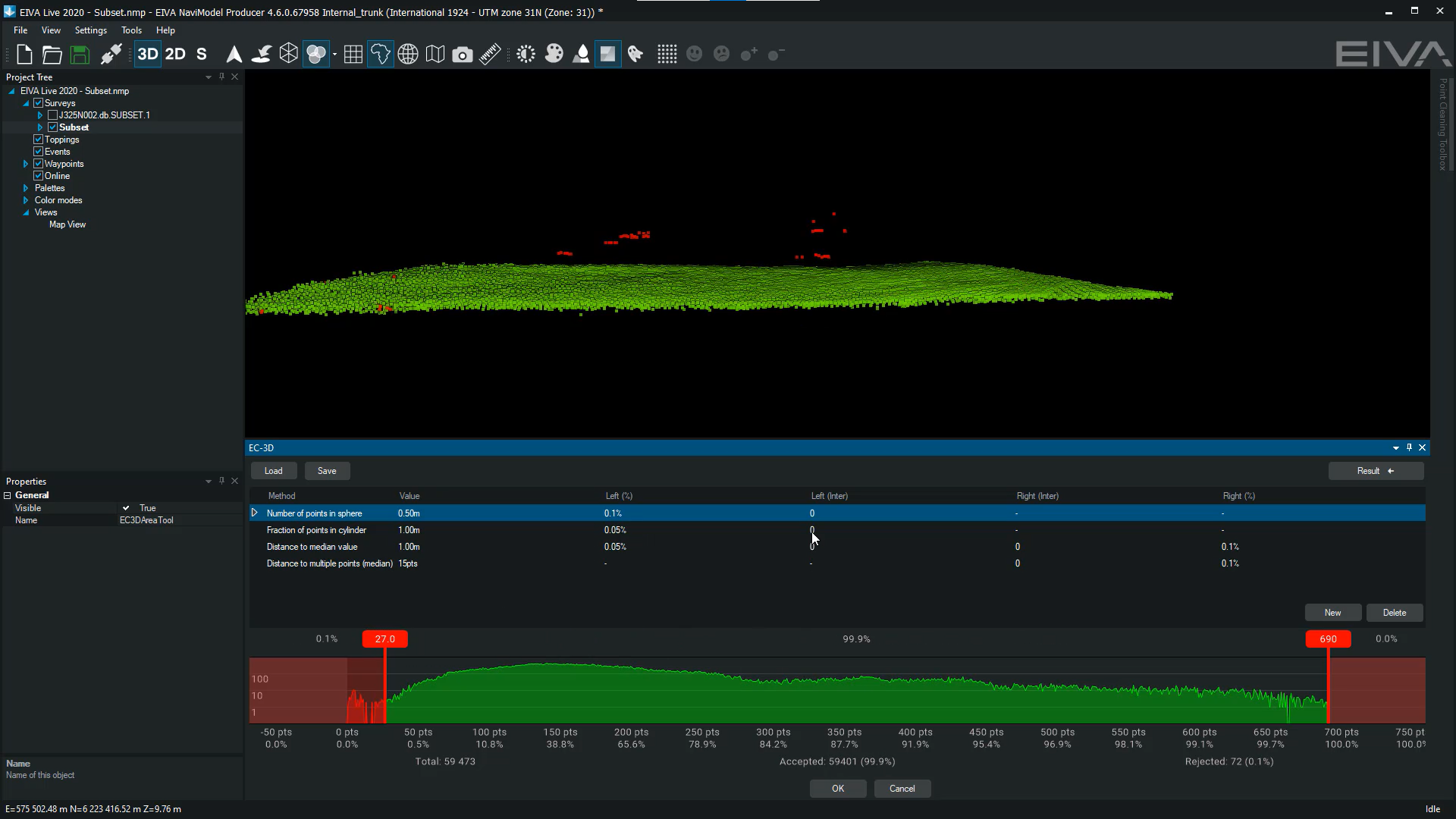

    EC-3D point cloud cleaning

    EC-3D can be used to clean point clouds.

    EC-3D can be used to clean point clouds.

    EC-3D automatic data cleaning

    EC-3D can be used to automatically clean point clouds or DTMs.

    EC-3D Automated

    EC-3D features many data cleaning methods

    Rather than assuming one method will always work perfectly, with EC-3D, you can use a variety of different methods to identify noise in your data. The many data cleaning methods featured in EC-3D include…

    • Histogram Spike Shooting
    • Histogram Plane Cleaning
    • Distance from surface (DTM only)
    • Distance to nearest neighbour
    • Number of neighbours in a sphere
    • Mean distance to X number of neighbours
    • Grouping of adjacent points based on proximity

    You can import and customise the parameters of individual cleaning methods.

    EC-3D Automated

    Combine cleaning methods

    You can run multiple cleaning methods simultaneously, combined in different ways. You can save and load your EC-3D method configurations, so you can use them again on several data sets.

    When combining cleaning methods, you can group them as Relative or Absolute. Absolute methods will clean points regardless of any other cleaning method. While Relative methods will clean points in voted-based manner. For example, ‘at least two out of four methods must agree on a point being marked as noise before it is removed’.

    EC-3D data cleaning votes relative methods

    Histogram Spike Shooting

    Histogram Spike Shooting can be used to reject or accept DTM points.

    Points are selected if they are inside a circle.

    Histogram automatically sets the rejection thresholds (can be manually over-ruled).

    Histogram Spike Shooting

    Histogram Plane Cleaning

    Histogram Plane Cleaning tool can be used to reject or accept DTM points.

    Points are selected if they are inside a corridor, polygon or an existing boundary.

    Histogram automatically sets the rejection thresholds (can be manually over-ruled).

    Histogram Plane Cleaning

    Reject & accept points

    You can see which points are being rejected or accepted both on a DTM and in a pie chart to visualise the distribution of accepted and rejected points.

    Reject & Accept Points
  • Point cloud tools

    Point cloud tools

    Create, visualise, edit and optimise point clouds from sonar and laser systems or from historical XYZ files.

    Learn more

    Point cloud features

    Within NaviSuite Kuda, there are many ways to visualise, edit and optimise point cloud data – so you can present beautiful visualisations of your survey. You can create point clouds from sonar and laser systems or from historical XYZ files.

    Import XYZ files to plan and compare

    You can easily model historical data in NaviSuite Kuda and use it for example to plan your survey or compare your results with earlier observations. If you have data in a known format, such as generic ASCII XYZ files, these can be imported as DTMs, point clouds, or TIN models.

    Import XYZ files

    Point clouds with RGB or intensity values

    By default, point clouds can be visualised as a solid colour or as a depth palette. However, if source files contain RGB or intensity values, you can choose to colour the point cloud with this information instead.

    Point clouds with RGB and Intensity

    EC-3D automated point cloud cleaning

    EC-3D can be used to clean point clouds.

    EC-3D can be used to clean point clouds

    Manual cleaning

    A selection window or a polygon can be used to manually clean point clouds.

    Manual cleaning

    Import LAS files and display

    LAS and LAZ files can be imported as DTMs or as point clouds, meaning you can use NaviSuite’s powerful modelling capabilities for validating data in this format. You can also export your model to this format.

    Large Point Clouds

    Large Point Cloud Viewer supports point clouds of virtually unlimited size.

    Large Point Clouds
  • DTM tools

    DTM tools

    In NaviSuite Digital Terrain Models (DTMs) can be generated, manipulated, and edited with the help of various tools.

    Learn more

    DTM features

    In NaviSuite, Digital Terrain Models (DTMs) can be generated, manipulated, and edited with the help of various tools.

    Create DTM surface from points (sonar & laser)

    DTM surfaces and Point Clouds can be generated at any time from either sonar or laser data.

    Create DTM surface from points (sonar & laser)

    Create different DTM surfaces (mean, max, min, etc) and colour modes

    Different surface types are generated upon data import and can be accessed at any time.

    Light and Palette settings

    DTM light and palette settings can be changed at any time.

    Light and Palette settings

    Visibility Slider

    Visibility slider allows users to compare different DTMs quickly.

    This enables comparison over time or between different data processing methods.

    Visibility slider

    Difference models

    DTMs can be created from the differences between two other existing models.

    Difference models

    Volume calculation

    A volume calculation is the difference between a reference surface and a comparison surface.

    Surfaces can be from a DTM or a TIN model.

    Volume calculations can take place between the following models:

    • DTM vs DTM
    • TIN vs TIN
    • DTM vs TIN
    Volume calculation

    Density surface

    Density colour mode can be enabled to QC how many points are in each DTM cell.

    Density surface

    Custom surface

    It is possible to create custom surfaces based upon hard-coded variables or user-configurable equations.

    Custom surface

    Automatic gap detection

    This tool analyses DTMs to identify areas which have no coverage (i.e. contain gaps).

    Automatic gap detection

    Matchup

    Matchup tool can be used to correct for DTM artefacts caused by incorrect ROV XYZ position.

    Points are moved based upon differences between two existing lines (source and destination).

    Points are moved perpendicular to the destination line.

    Matchup

    Rectify

    Rectify tool can be used to correct for DTM artefacts caused by incorrect ROV XYZ position.

    Points are moved based upon differences between two existing lines (source and destination).

    Points are moved perpendicular and along length to the destination line.

    Rectify

    Level out

    Level out tool can be used to correct for small depth differences between surveys.

    Level-out

    Smooth surface

    Smooth surface tool smooths a DTM surface by an absolute distance or by the number of DTM cells.

    Smooth surface

    CUBE

    Combined Uncertainty and Bathymetric Estimator (CUBE) tool is available in NaviModel and is implemented alongside our other cleaning approaches.

    CUBE

    Find Rocks

    This tool analyses DTMs to identify rock events.

    Find rocks
  • Line and waypoint tools

    Line and waypoint tools

    Create, modify, graph and export digitized lines and waypoints, for example to control seabed marker positions, create boundaries and plan survey runlines.

    Learn more

    Line and waypoint features

    Digitised lines and waypoints can be used for many purposes, including to control seabed marker positions, create boundaries and plan survey runlines.

    NaviSuite Kuda supports a series of runline and waypoint formats including our own RLX/WPT format and generic ASCII readers. You can also draw, modify, graph and export lines and waypoints directly in the Map View using a large range of tools both online and offline.

    Modify lines and points

    NaviSuite makes it easy to modify digitised lines and waypoints in many different ways. You can for example move a line or points by an offset in x,y and z directions or move them to a fixed point.

    Line smooth

    If required, the entire length of the line can be smoothed in XYZ.

    Line smooth

    Local smooth

    The local smooth tool allows you to concentrate on small line sections that require remedial action.

    Local smooth

    Convert waypoints to lines

    Waypoints can be converted to lines via the ASCii Importer.

    Convert waypoints to lines

    Compare lines

    Whilst we can always compare lines visually in the Map View window, sometimes it is better to create graphs for comparison. This is easily done in NaviSuite.

    Compare lines

    Various runline patterns (parallel, cross, star)

    You can inherit multiple lines based on the base line defined, such as parallel or cross lines to get an optimal route plan.

    Distance to waypoint

    NaviSuite Kuda can use a waypoint to monitor the range/bearing from your vessel to the destination. The software can feed that distance into autopilots and DP systems, enabling remote and autonomous operations.

  • Automatic data processing tool

    Automatic data processing tool

    Save time on data processing by automating your workflow – using NaviSuite Workflow Manager, designed to enable a previously unseen degree of automatic data processing of massive amounts of subsea sensor data.

    Learn more

    Automatic processing features

    The NaviSuite Workflow Manager tool is designed to enable a previously unseen degree of automatic data processing of massive amounts of subsea sensor data.

    AUV processing workflow

    The first version of the Workflow Manager utilises NaviEdit and NaviModel for a traditional survey data set processing of data from AUV dive. As soon as the data is available, it is automatically loaded into the flow and processed by cleaning data, merging reprocessed AUV track, building DTMs and making sanity checks. This is typically done using the Server version.

    AUV processing workflow

    NaviSuite Kuda processing workflow

    The Workflow Manager desktop version is very well suited for NaviSuite Kuda operations where each file will be processed right after recording, thus enabling reporting and quality control as you go. The Desktop version runs one task at the time – but it is more than fast enough to cope with survey speed.

    NaviSuite Kuda processing workflow

    Execute multiple parallel NaviEdit, NaviModel and 3rd party commands

    The more CPU (cores), memory and disk speed you have – the better you utilise the workflow engine. The optimal solution is running a bit fewer processes than the number of cores.

    Execute multiple parallel NaviEdit, NaviModel and 3rd party commands
  • Videos and image display tools

    Videos and image display tools

    Combine data sources in the intuitive interface of NaviModel, including videos and still images that contain time stamps.

    Learn more

    Videos and images features

    Video and still images that contain time stamps can be combined with other data sources in NaviModel.

    Play and control video

    Digital video acquired in external systems can be played and controlled inside NaviModel.

    Play and control video

    Synchronise video with track

    In NaviModel the track contains the date and time and must be synchronised with the video time to enable videos to play.

    Normally the video time and track time are recorded in the same time zone. However sometimes this is not the case and we need the option to change the video / track time so that video will play.

    Synchronise video with track

    Adjust video hue, brightness, contrast and gamma levels

    Hue, brightness, contrast and gamma levels can be adjusted to improve badly lit videos.

    Adjust video hue, brightness, contrast and gamma levels
  • Optional extra services and special offers

    Optional extra services and special offers

    EIVA offers a number of services for our NaviSuite software users.

    Learn more

    Optional extra services and special offers

    Get the most out of your software

    EIVA offers a number of services for our NaviSuite software users. These include:

    Also, we have a number of special offers:

Product comparison



  NaviSuite Kuda Core NaviSuite Kuda Core + Processing NaviSuite Kuda Pro NaviSuite Kuda Pro + Processing NaviModel Analyser (End-user visualisation)
Instrument support Multi-beam echo sounder (incl backscatter), LiDAR, camera  Multi-beam echo sounder (incl backscatter), LiDAR, camera All, including sidescan sonar, sub-bottom profiler, magnetometer All, including sidescan sonar, sub-bottom profiler, magnetometer
Multi-beam echo sounder patch test  x x x x

Automatic cleaning of multi-beam echo sounder/LiDAR data (EC-3D)

x x x x
Automatic generation of runlines (Coverage Assist) x x x x
Autopilot control of vessel/USV x x x x
Remote control from command centre x x x x
Local and remote 3D display with support for CAD, GIS drawings, maps, etc One local, one remote One local, one remote Unlimited displays Unlimited displays

Local visualisation and comparison

Tracking of subsea vehicle (ROTV, ROV, etc) via USBL, LBL and similar     One subsea object One subsea object
Unlimited data size, only limited by disc capacity x x x x x
Data downsampling for remote quality control x x x x
DTM and point cloud generation from and editing of multi-beam echo sounder x x x x
Point cloud generation from LiDAR and data editing x x x x
Simultaneous visualisation of multiple DTM views of data (eg depth, density, gaps, noise, standard deviation etc) x x x x
Visualisation and reporting of DTM gaps x x x x x
Registration of objects/observations of interest and survey logging (Eventing) x x x x x
Support of redundant setup of sensors  x x x x
Sensor correction  x x x x
Automatic data processing (Workflow Manager – Desktop), incl for USV onboard and remote data processing    x   x
Backscatter mosaicking   x x* x*
Sidescan mosaicking       x
Volume, difference and distance analysis   x   x x
Export to GIS and videos   x   x x
Raw sensor data editing   x   x
Choose between multiple tide correction sources (GPS, tidal stations, predicted)   x   x
GPS height processing   x   x
Calculation and visualisation of TVU/TPU   x   x
Advanced Kalman filters for positioning improvement     x x
Interface of more than one multi-beam echo sounder at a time Limited to dual head Limited to dual head Unlimited Unlimited
Support fo geodesy via EPSG or locally defined geodetic models x x x x x
Runline and waypoint navigation x x x x x
Data logging from vessel navigation equipment (GPS, MRU, INS, etc) x x x x
Data logging from dynamic subsea object navigation equipment (USBL, LBL, DVL, etc)     x x
AIS connection     x x

* Real-time backscatter mosaick is limited functionality

EIVA LIVE - Dive into EIVA's software and hardware solutions for the maritime industry

Have you heard of our EIVA LIVE webinar series?

We strive to stay at the forefront of the industry by constantly developing our products according to our customers' needs. This webinar series allow you to be kept up to date on which solutions we have developed lately.
