NaviSuite Mobula Pro + Processing (VideoRay)

Supplier:
EIVA
Product no :
NS.MODFPR

Advanced software for efficient ROV piloting and high-quality data deliverables

NaviSuite Mobula is a plug-and-play ROV control and inspection software, allowing operators to plan and perform inspections efficiently – and enabling automation. With a variety of variants of this software bundle available, you can pick the one best tailored to your needs and budget.

The software provides high-performing features focusing on automated steering and inspection, as well as delivering advanced, high-quality data visualisations

Depending on the variant, these features can include assisted and automated steering modes; real-time quality control tools; real-time data displays and overlays; 3D model visualisations; observation logging; as well as automatic data cleaning. The end-result is extensive deliverables with high-quality inspection data.

The NaviSuite Mobula software bundle includes three variants. The NaviSuite Mobula Pro + Processing variant supports ROV inspections all the way from steering to data delivery and allows for…

  • Excellent ROV control through joystick steering in six degrees of freedom, as well as automatic and assisted steering with modes that include going to a selected waypoint, moving a defined distance and direction, scanning quay walls, orbiting a target, as well as holding a position
  • Data acquisition with a variety of sensors including multi-beam echo sounder, scanning/mechanical imaging sonar, multi-beam imagining sonar, scanning/profiling echo sounder and laser scanner (multi-head), as well as support for positioning with GPS, DVL, INS and USBL
  • Configurable user interface and simultaneous data displays increasing situational awareness
  • Data processing including 3D modelling and automatic data cleaning
  • Comprehensive data deliverables, such as 2D/3D/4D models, videos and observation logs

Scroll down to check out an overview of what you get with the different variants in the product comparison table. For info on other ROV platforms supported, check out an overview of our ROV software.

Please note: When you purchase this product, you will receive a licence with NaviSuite Mobula Pro and NaviSuite Mobula Pro Config; and a licence with NaviEdit Mobula Pro and NaviModel Mobula Pro (incl EC-3D and Workflow Manager – Desktop).

You already have products in your My EIVA basket

This product cannot be added to your basket as you already have products in your My EIVA basket.

excl VAT, excl shipping fee
Get in touch
Delivery time:   A few minutes

As soon as your details are validated, you will receive a licence activation key for any purchased subscriptions by email and a physical dongle with any purchased permanent licences will be shipped to you.

Key features and benefits

  • Cutting a long inspection story short: What you get...

    Cutting a long inspection story short: What you get...

    Dive further into the details of how NaviSuite Mobula will optimise and automate your ROV inspections.

    Learn more

    What you get...

    Choose the bundle variant that matches your vehicle setup and your budget
    … ranging from variants dedicated to the essentials of performing inspections – all the way to NaviSuite Mobula Pro + Processing for advanced positioning setups, data fusion and reporting results with comprehensive data deliverables such as 3D models

    Improved situational awareness
    … through a highly configurable user interface that is easy to tailor to your needs, bringing all relevant features to your monitor – including simultaneous views of 2D, 3D and 4D model visualisations, as well as real-time quality control tools

    Dive once and bring back all you need
    … through data fusion capabilities allowing you to acquire and visualise data from the many supported sensors simultaneously

    Bring autonomy onboard your ROV
    … through assisted steering modes that make use of the wide range of positioning sensors supported and strong thruster control – these modes include going to a selected waypoint, moving a defined distance and direction, for example when scanning quay walls, orbiting a target, as well as holding a position

    Increased precision of data
    … through seamless interfacing between hardware and software

    Report results easily and clearly
    … with comprehensive data deliverables such as fly-by videos, which are integrated with an easy to use observation log tool – additionally, with the + Processing variant, you can generate 3D visualisations which your end-client can work in using the free NaviModel Viewer or the more advanced solution NaviModel Analyser.

    Overview at any time
    … by combining all the data collect in one streamlined solution, you can replay your video recordings while showing where your ROV was at the exact time it was recording that video – if you are using the + Processing variant, this position can even be shown on the 3D model generated from your inspection

    Automatic data processing (only available in the + Processing variant)
    …. by enabling you to set up an automatic workflow in Workflow Manager, letting the software do the hard work even for massive amounts of data – with processing tools such as EIVA’s automatic data cleaning tool EC-3D which you can even run in real time during acquisition, so your 3D model can be automatically cleaned and ready to deliver by the time you’ve retrieved your ROV

    Taking your ROV inspections to the next level

    NaviSuite Kuda is the optimal solution for efficient ROV operations yielding high-quality data deliverables. This could for example be inspections of offshore wind turbine foundations, harbours and subsea assets, as well as UXO surveys and habitat mapping.

    This NaviSuite solution dedicated to ROV inspections draws on the powerful features of the NaviSuite software family. It provides cutting-edge software technology enabling automated operations – all at an affordable price.

    Take a test dive – Get a free 30-day trial package

    EIVA offers all new users the opportunity to experience the benefits of NaviSuite Mobula first hand onboard your ROV with a free trial of the NaviSuite Mobula software, no strings attached. Feel free to reach out if you are interested.

    Other ROV models can join the NaviSuite family

    Note that while NaviSuite Mobula is available as a plug-and-play solution for Blue  Robotics BlueROV2 and VideoRay Defender ROVs, it can be integrated with any ROV – requiring just a little coding by the EIVA crew.

  • ROV steering

    ROV steering

    NaviSuite Mobula allows users to control various ROV models. Templates can be selected to help with setup for different scenarios and users can steer the ROV while utilising video feeds, eventing and sonar for inspections.

    Learn more

    ROV steering features

    NaviSuite Mobula allows users to control various ROV models. Templates can be selected to help with setup for different scenarios and users can steer the ROV while utilising video feeds, eventing and sonar for inspections.

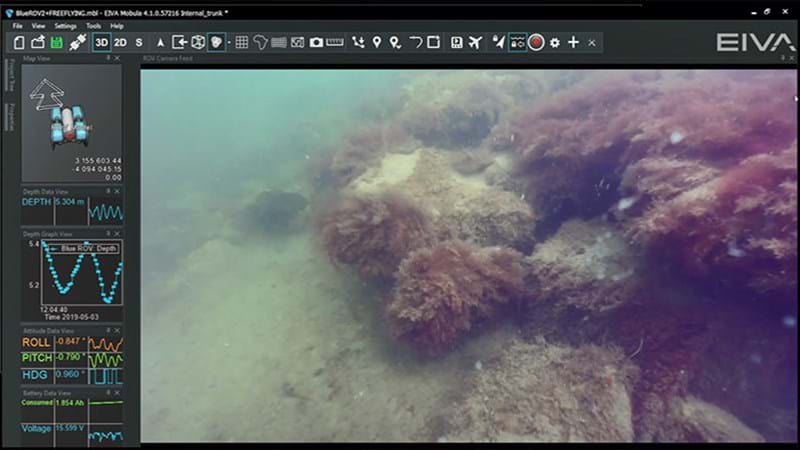

    ROV joystick steering

    ROVs can be controlled using joystick with NaviSuite Mobula.

    ROV joystick steering

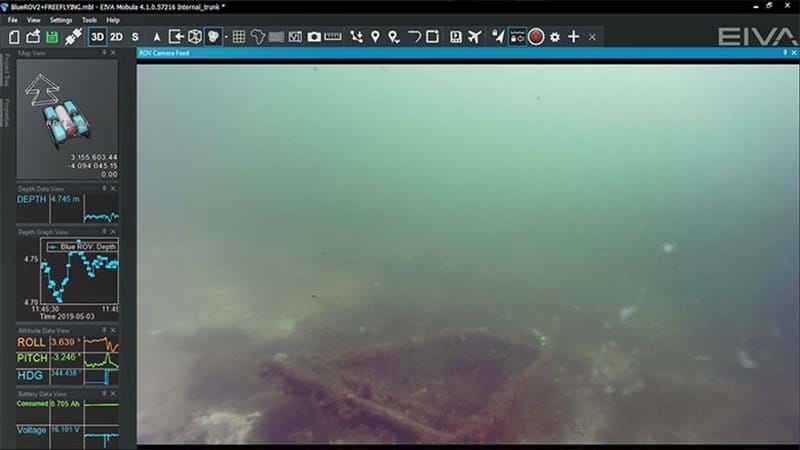

    Auto-depth and auto-heading

    Depth and heading are automatically calculated.

    Auto-depth and auto-heading
  • General visualisation

    General visualisation

    NaviModel and NaviPac share the same 3D engine, and therefore the same powerful 3D visualisation features. Data can be visualised in 2D, 3D, side view or by time.

    Learn more

    General visualisation features

    NaviModel and NaviPac share the same 3D engine, and therefore the same powerful 3D visualisation features. Data can be visualised in 2D, 3D, side view or by time.

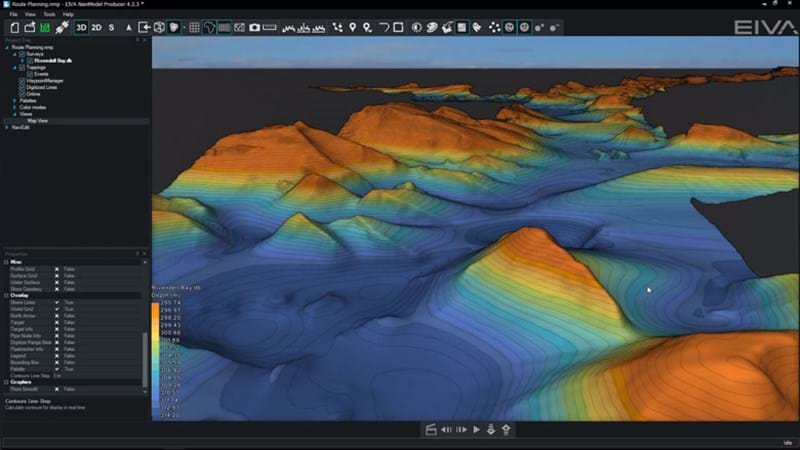

    3D seabed terrain

    Seabed terrain can be visualised in a 3D environment.

    3D seabed terrain

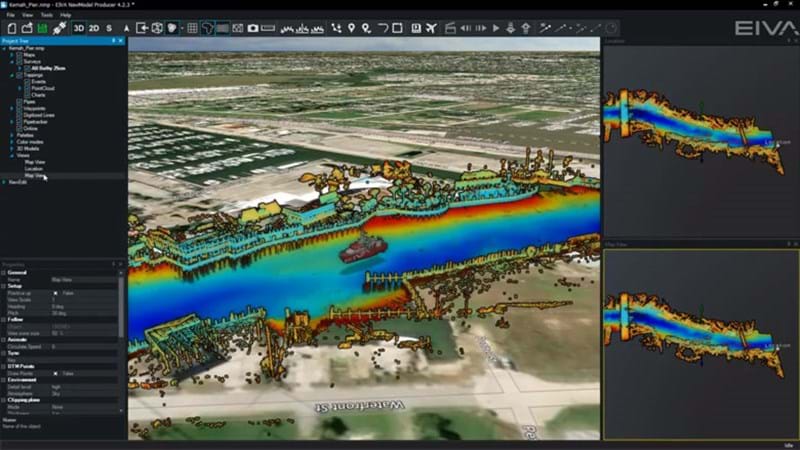

    Multiple Map Views

    Multiple Map Views are available.  Each individual Map View window can be configured separately to display only the information required.

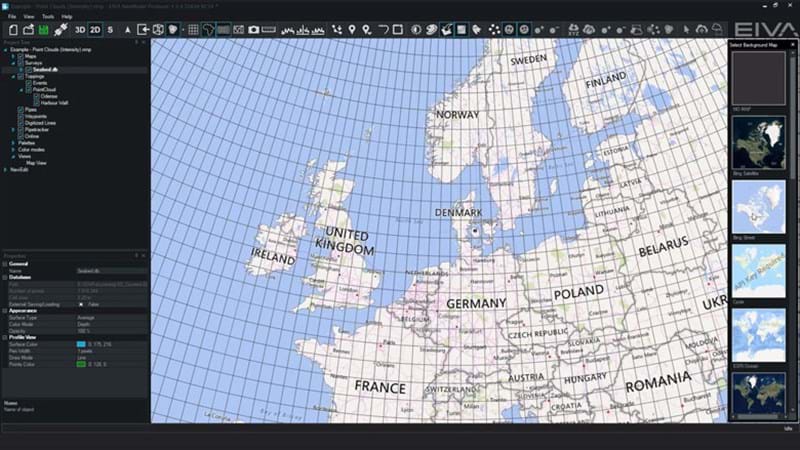

    Background Maps

    Background Web Map Service (WMS) maps can be displayed.

    Background Maps

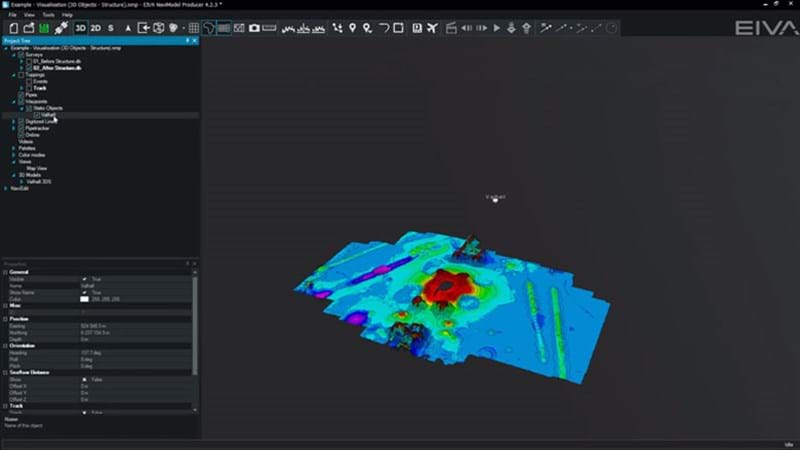

    Import 3D models

    3D models can be imported into NaviModel (drag and drop into the Map View window).

    Import 3D models

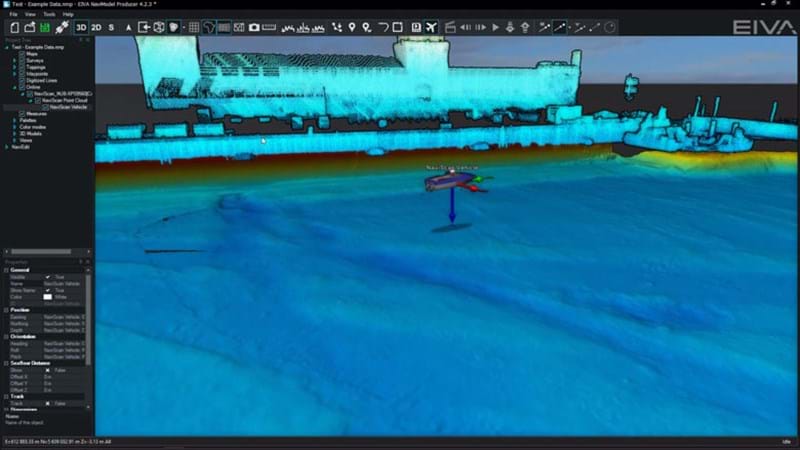

    Link 3D models to live objects

    3D models can be linked to any live objects (Vessel, ROV, Scanfish etc).

    Link 3D models to live objects

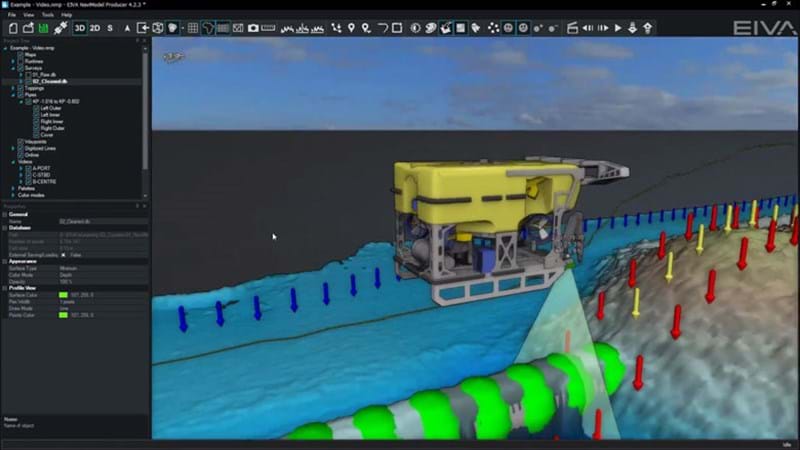

    2D, 3D and side-view displays

    2D, 3D or Side views allows the user to quickly change the view facilitating better data interpretation.

    3D, 2D and side-view displays

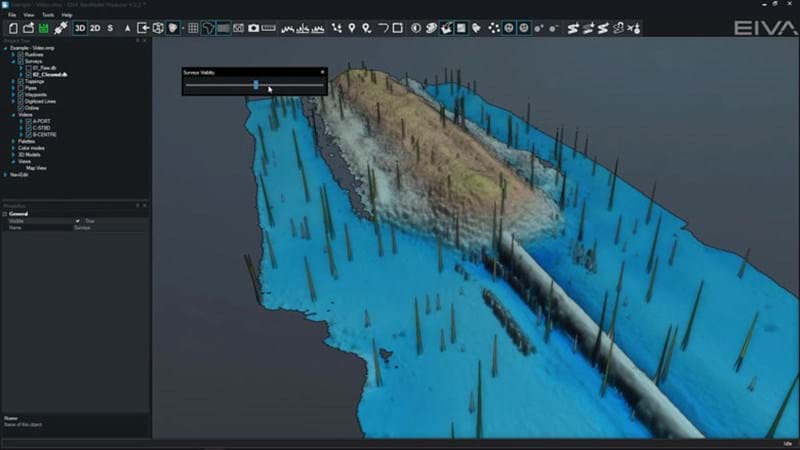

    Visibility Slider

    Visibility slider allows users to compare different DTM’s quickly.  This enables comparison over time or between different data processing methods.

    Visibility slider

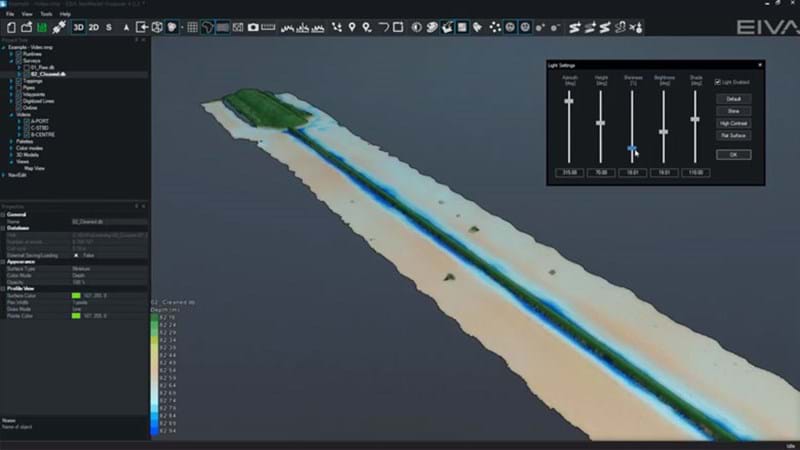

    Control colours, lights, details

    DTM light and palette settings can be changed at any time.

    Control colours, lights, details

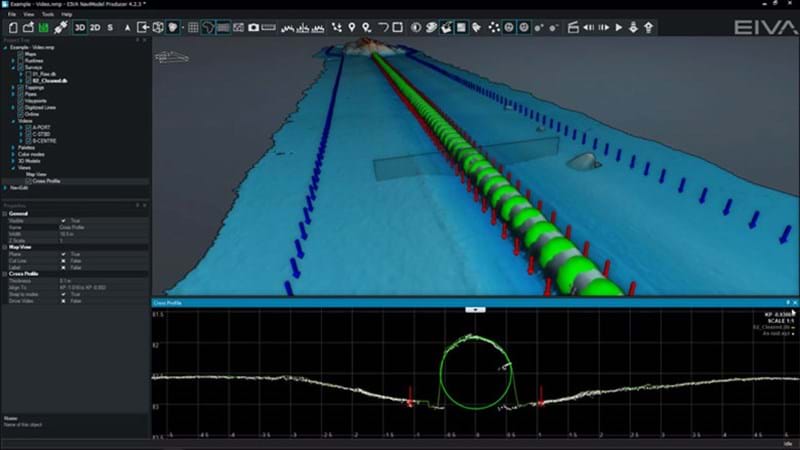

    Profile views

    The following profile views are available:

    • Cross Profile
    • Long Profile
    • Quick Profile
    • X & Y Axis Profile
    • View Profile
    Profile views

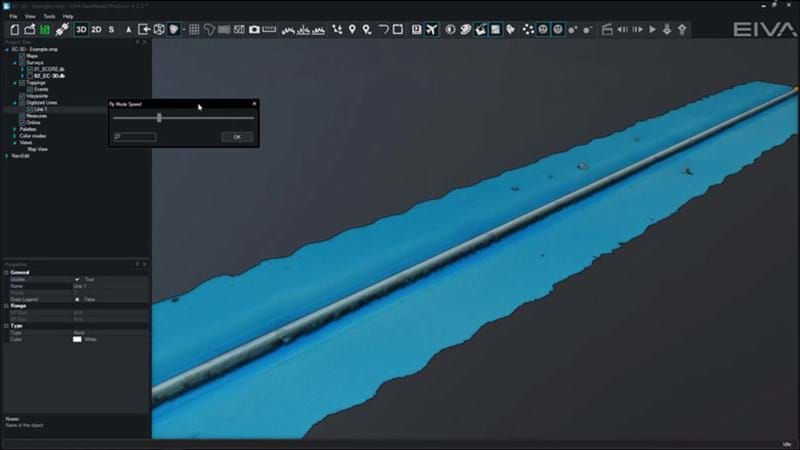

    Create fly-through videos

    Fly-through videos can be created for project or promotional presentations.

    Create fly-through videos
  • Sensor interfacing and recording

    Sensor interfacing and recording

    Many different sensors can be interfaced and integrated in both NaviScan and NaviPac.

    Learn more

    Sensor interfacing and recording features

    Many different sensors can be interfaced and integrated in both NaviScan and NaviPac.

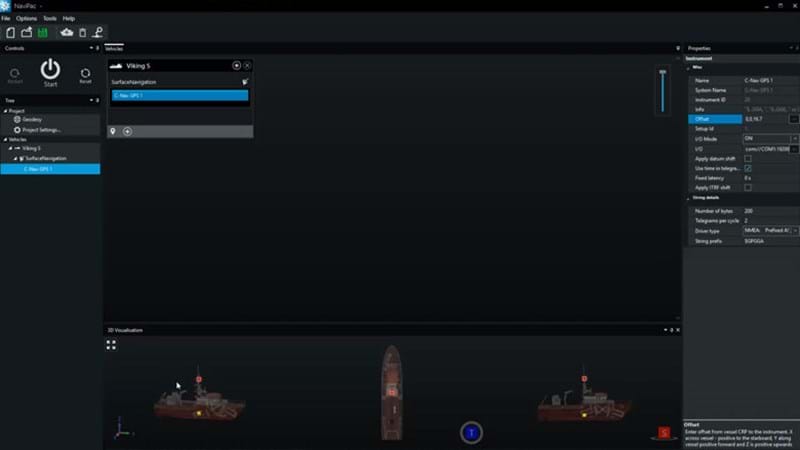

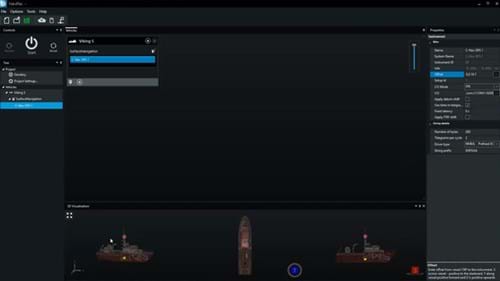

    Surface positioning and motion (GPS, Gyro, IMU)

    Setting up an entire vessel based project in NaviPac is easy performed using intuitive graphical definition tools. The video covers basic project definition, geodetics and vessel navigation setup.

    Surface positioning and motion (GPS, Gyro, IMU)

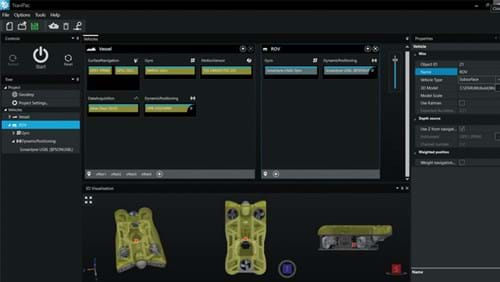

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

    Setting up remote and subsea vehicles is done in a similar manner to the main vessel – easy and intuitive. Adding instruments, positioning sources (transponders, INS, LBL etx) and defining weighting and Kalman filter settings is possible.

    Subsurface positioning (USBL, DVL, INS, Gyro, IMU)

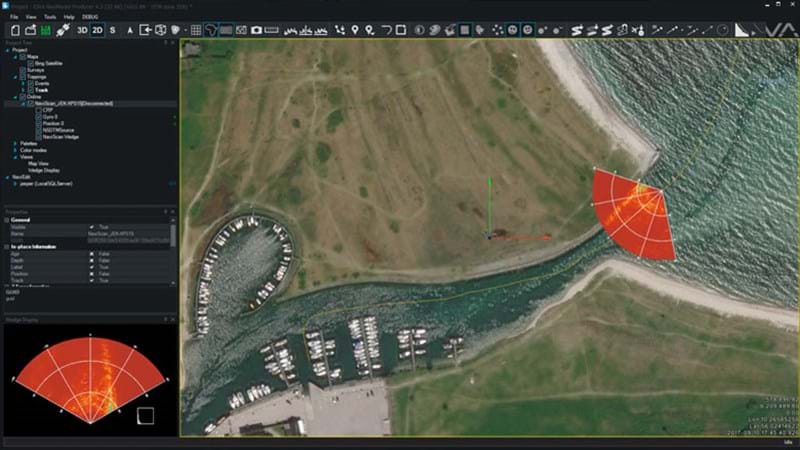

    FLS - forward looking sonar (wedge and mosaic)

    NaviScan supports a series of forward looking sonars such as eg. Tritech, Didson and Norbit. The data will be interfaced and recorded in NaviScan and made available for display in HMD as both stand-alone wedge display and 3D wedge display in the Map views.

    FLS forward looking sonar (wedge and mosaic)

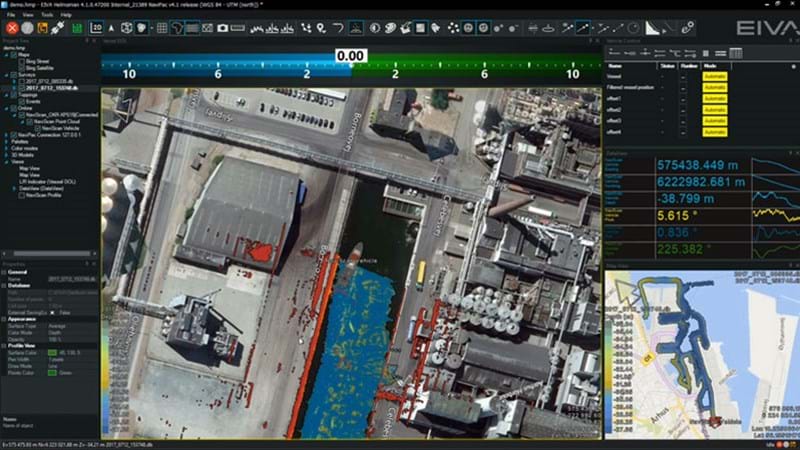

    MBE multi-beam echo sounder (soundings and DTM)

    Multi-beam echo sounder, laser and sidescan will be interfaced and recorded in NaviScan. Display and quality control is easily done in HMD by using raw point clouds, terrain models or data profiles. Using multiple windows allows for QC by looking at data density, model standard deviation etc. Built in semi-automatic cleaning tool enables instant delivery or preliminary DTM.

    MBE multi-beam echosounder (soundings and DTM)
  • Eventing

    Eventing

    The many eventing features include auto-calculation of event types and an easy-to-use event tablet view.

    Learn more

    Eventing features

    The many eventing features include auto-calculation of event types and an easy-to-use event tablet view.

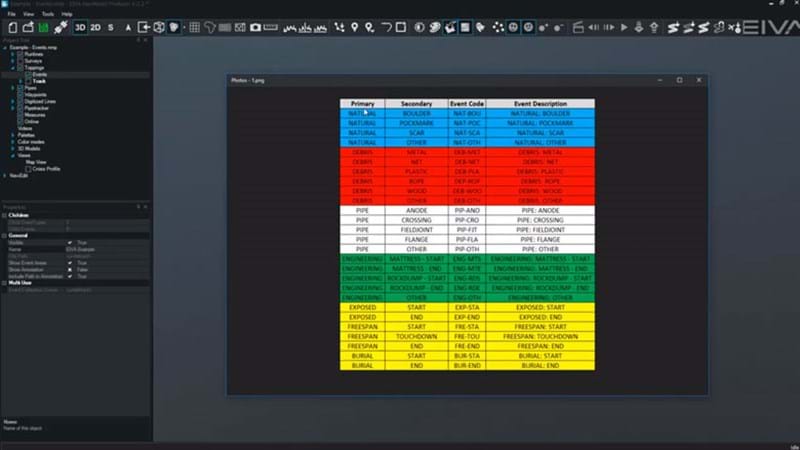

    Configurable event types, hierarchy, and properties

    Client and company specific event collections can be tailored to the activity undertaken.

    During EIVA Days Denmark 2018, we presented a major expansion to the functionality of camera based scanning.

    Configurable event types, hierarchy and properties

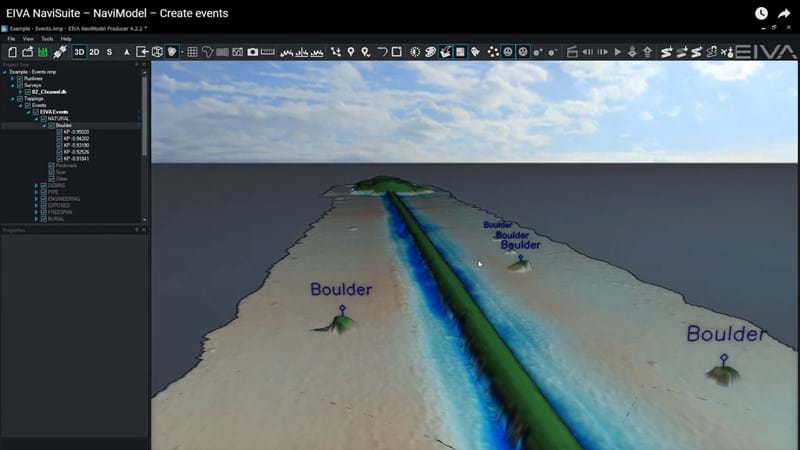

    Create events

    Events can be created quickly and are automatically placed onto a DTM.

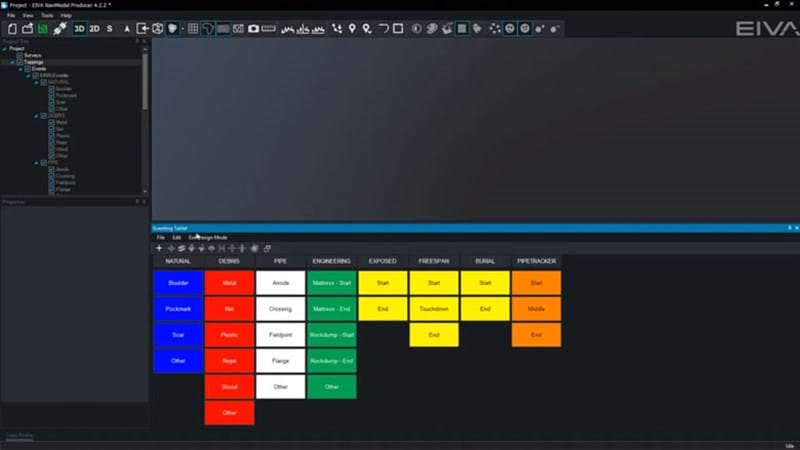

    Tablet for fast event creation

    Using the eventing tablet view allows for quicker event creation. With the eventing tablet, you can quickly add all events, or customise which events to add with just a few steps.

    Tablet for fast event creation

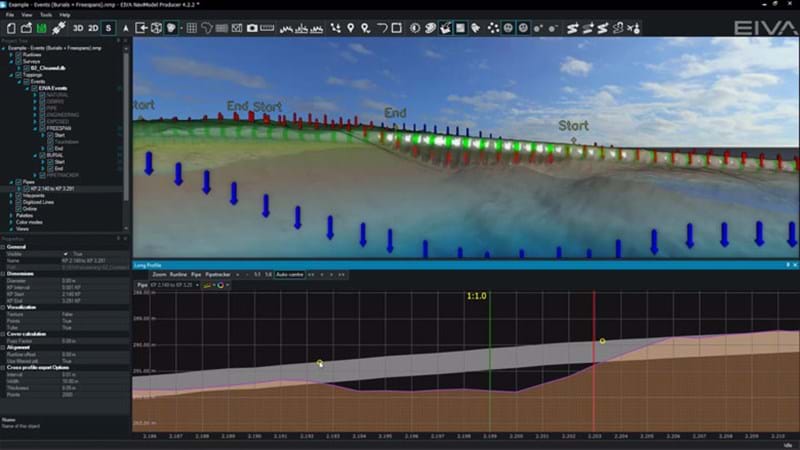

    Create freespan and burial events

    Pipe and seabed markers are used to create freespan and burial events.

    This means that events and seabed markers always tie-in.

    Create freespan and burial events

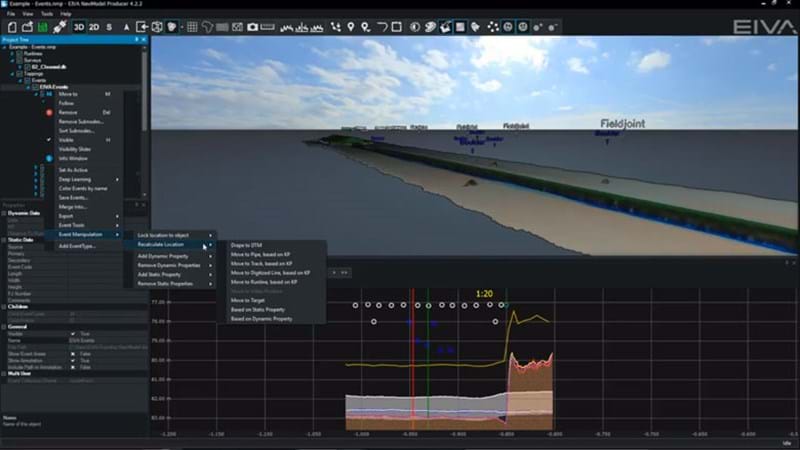

    Recalculate events

    Events can be recalculated at any time.

    Recalculate events

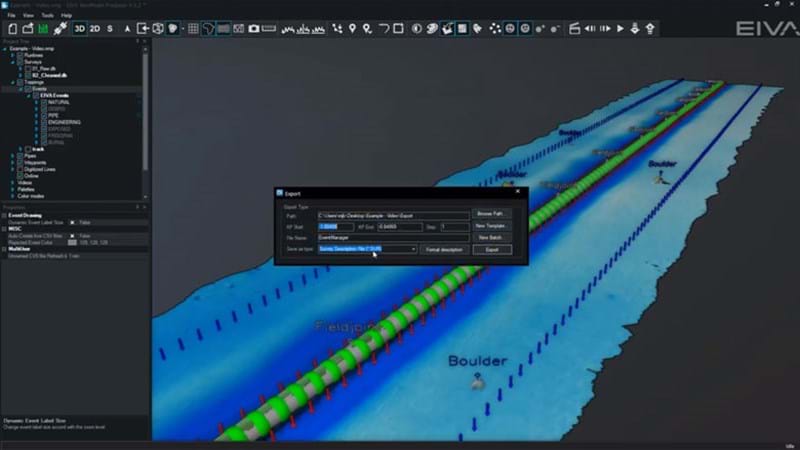

    Export events

    User configurable templates can be created to export events in the format required.

    Export events

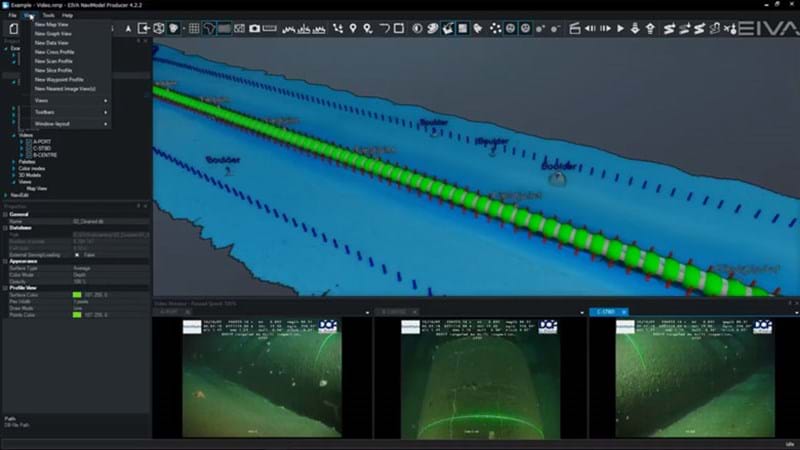

    Export nearest image and videos

    Images and videos can be exported for each event or for selected events.

    Export nearest image and videos

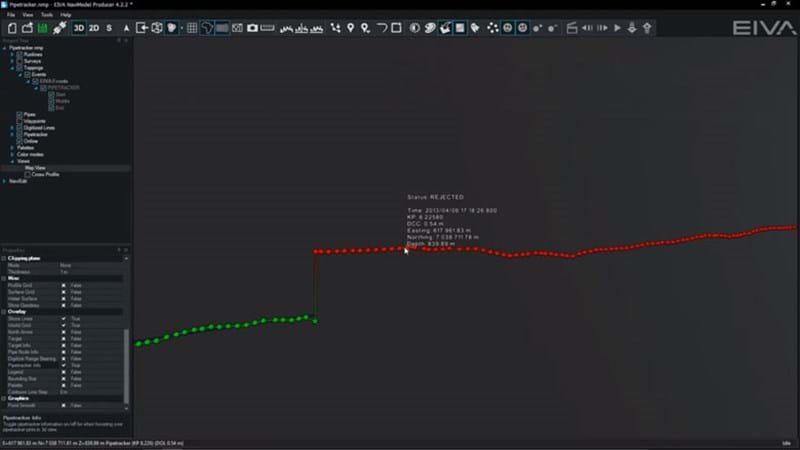

    Create pipetracker gap events

    Pipetracker gap events are created from continuous sections of rejected pipetracker data.

    Create pipetracker gap events
  • Videos and images

    Videos and images

    Video and still images that contain time stamps can be combined with other data sources in NaviModel.

    Learn more

    Videos and images features

    Video and still images that contain time stamps can be combined with other data sources in NaviModel.

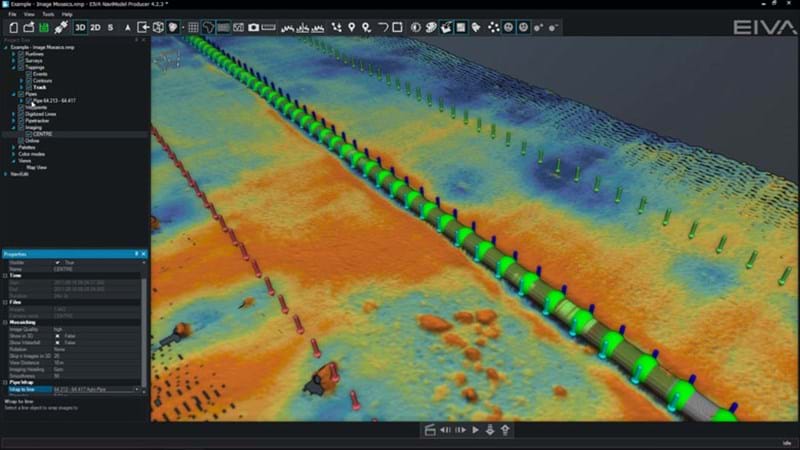

    Drape images on digitised pipe

    Video images can be wrapped around an existing pipe or digitised line in the Map View window.

    Drape images on digitised pipe

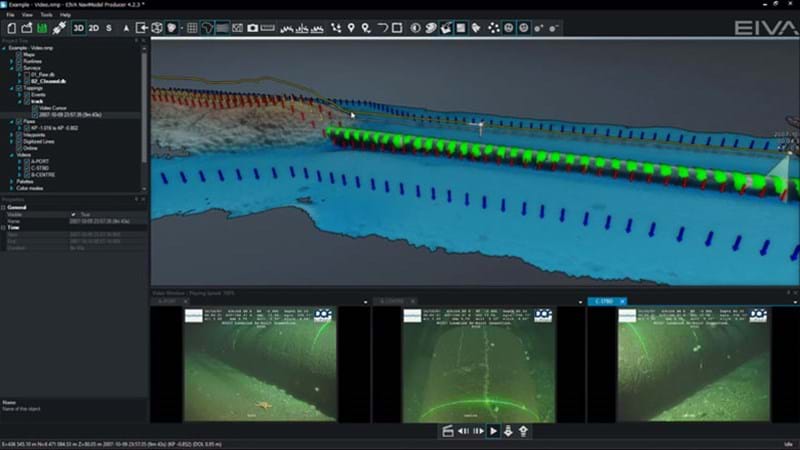

    Play and control video

    Digital video acquired in external systems can be played and controlled inside NaviModel.

    Play and control video

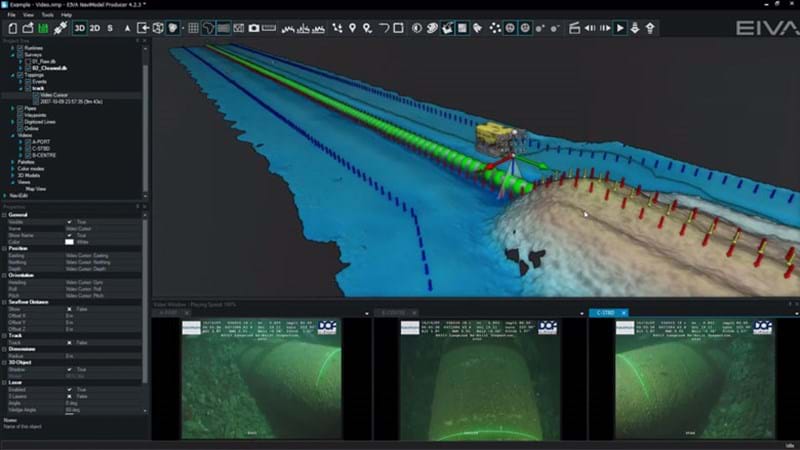

    Synchronise video with track

    In NaviModel the track contains the date and time and must be synchronised with the video time to enable videos to play.

    Normally the video time and track time are recorded in the same time zone. However sometimes this is not the case and we need the option to change the video / track time so that video will play.

    Synchronise video with track

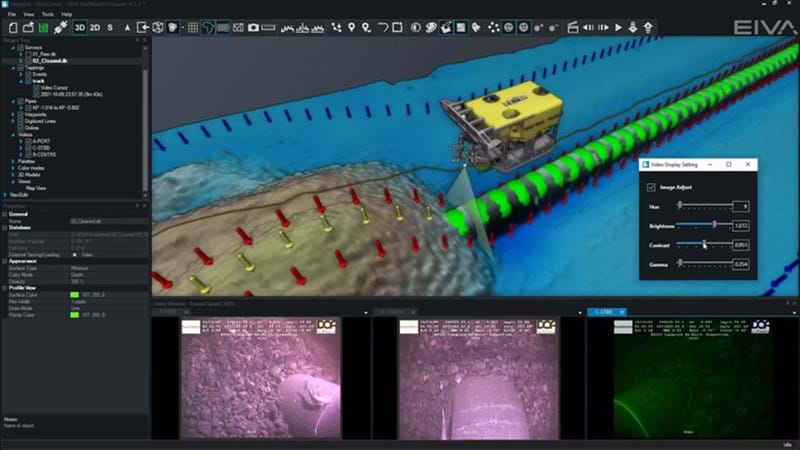

    Adjust video hue, brightness, contrast and gamma levels

    Hue, brightness, contrast and gamma levels can be adjusted to improve badly lit videos.

    Adjust video hue, brightness, contrast and gamma levels

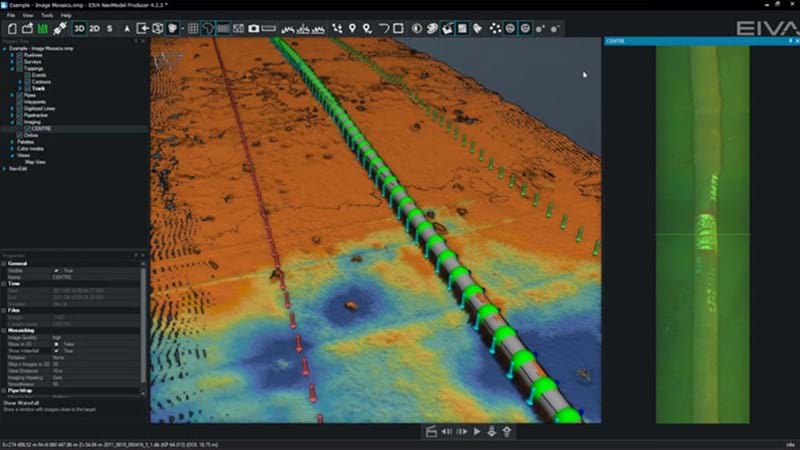

    Display video images (Waterfall)

    Video images can be displayed as a vertical waterfall.

    Display video images (Waterfall)
  • Optional extra services and special offers

    Optional extra services and special offers

    EIVA offers a number of services for our NaviSuite software users.

    Learn more

    Optional extra services and special offers

    Get the most out of your software

    EIVA offers a number of services for our NaviSuite software users. These include:

    Also, we have a number of special offers:

Product comparison

  NaviSuite Mobula Core
(Only available for Blue Robotics)*
NaviSuite Mobula Sonar NaviSuite Mobula Pro* NaviSuite Mobula Pro + Processing*
Manual steering
  • Manual joystick control 6DOF
  • Reverse
x x x x
Assisted steering
  • Auto holds (heading, depth, pitch, roll)
  • Trims (up/down, fore/aft, stbd/port)
x x x x
Automated steering
  • Station keeping near seafloor
  • Displace to a position in XYZ directions
  • Displace to a bearing and distance
  • Click and go to a waypoint
  • Orbit to circle around a target (clockwise/counter clockwise)
  x x x
Frame configuration
Supports custom thrusters’ configuration (Blue Robotics only)
x x x x
Instrument support for positioning and navigation
ROV attitude and heading sensor
x x x x
GPS + DVL interfacing
Improved navigation and underwater positioning, enabling automated flight modes
x x x x
GPS + INS interfacing
High accuracy navigation and underwater positioning, enabling advanced flight modes
  x x x
GPS + DVL/INS + USBL interfacing
High accuracy navigation and underwater positioning, enabling advanced flight modes
    x x
Scanning/mechanical imaging sonar interfacing
Visualisation of static sonar wedge display and dynamic wedge display on a map view for obstacle avoidance and navigation
Ping360 x x x
Multi-beam imaging sonar interfacing
Visualisation of static sonar (forward-looking sonar) wedge display and dynamic wedge display on a map view for obstacle avoidance and navigation
  x x x
Scanning/profiling echo sounder interfacing
Point cloud generation and visualisation of profile in real time
    x x
Multi-beam echo sounder and laser scanner interfacing
  • Multi-beam echo sounder for bathymetry
  • Laser scanner for bathymetry and high-resolution point clouds
  • DTM and point cloud generation to visualise data from multi-beam echo sounder and laser scanner
    x x
Multi-sonar interface
Data acquisition and processing of more than one type of sonar/sensor
    x x
Configurable user interface
User-defined screen layout for setups with single and multiple screens
x x x x
3D navigation and positioning
Loading background maps from webserver interface Bing/Google and Web Map Server maps, geocoded images, ACAD and vector drawings
x x x x
Logging of observations
User-defined presets for registration of observations of interest
x x x x
Video recording
  • Built-in DVR with video time stamp and file size control
  • Supports single and multiple camera setups
x x x x
Overlays
Ability to add text, numeric data, scale, widgets, and pictures as overlays to video feed, map and wedge display
x x x x
Tooling and ancillary devices
Control of lights, camera tilt and grabber
x x x x
Share inspection results (datasets)
Save entire inspection datasets and share results to end-clients who have NaviModel Viewer or Analyser
      x
Data processing
  • Navigation track processing
  • Automatic data processing via Workflow Manager
  • Point cloud cleaning and 3D modelling (EC-3D)
  • Generate end-client data deliverables (NaviEdit Mobula Pro and NaviModel Mobula Pro)
      x

* Currently not available for purchase in the webshop. Reach out to request a quote.



EIVA LIVE - Dive into EIVA's software and hardware solutions for the maritime industry

Want to attend free webinars?

The ongoing EIVA LIVE webinar series keeps you up to date on our latest software and hardware developments – with the possibility to dive deeper and ask our experts questions. Past webinars have showcased solutions such as our autopilot and software for autonomous hydrographic surveys, as well as new automated ROV inspection modes.
