NaviSuite Perio – Software

Supplier:
EIVA
Product no :
NS.PE

Virtual navigation aiding

NaviSuite Perio allows you to accurately deploy multiple virtual buoys (up to 250 via a single transmitter) for AIS navigation aids at a fraction of the cost of physical buoys.

NaviSuite Perio offers a unique approach to navigational aiding, by enabling you to deploy a high number of any buoy type as virtual buoys so they appear correctly on AIS displays on nearby vessels. This is an alternative or a supplement to the deployment of physical buoys.

Typical uses include:

  • Marking the deepest part of the sailing channel for extra large vessels approaching
  • Marking temporary construction areas, cable lay areas, etc
  • Marking subsea equipment such as towed seismic equipment or the EIVA ScanFish

Required hardware

When purchasing the NaviSuite Perio software, one of the following hardware add-on packages must be purchased as well:

Details on what each package includes are provided below.

Please note: This product is only available as annual subscription.

You already have products in your My EIVA basket

This product cannot be added to your basket as you already have products in your My EIVA basket.

excl VAT, excl shipping fee
Get in touch
Delivery time:   A few minutes

As soon as your details are validated, you will receive a licence activation key for any purchased subscriptions by email and with any purchased permanent licence a physical dongle will be shipped to you.

Key features and benefits

  • Cutting a long navigation story short: What you get

    Cutting a long navigation story short: What you get

    Ensure vastly cost reductions on buoy deployment – virtual buoys stay in the right place, can easily be moved, don’t require service and are free to deploy and recover.

    Learn more

    Cutting a long navigation story short: What you get

    Ensure vastly cost reductions on buoy deployment – virtual buoys stay in the right place, can easily be moved, don’t require service and are free to deploy and recover

    The NaviSuite Perio software allows for:

    • 3D visualisation of seabed, navigation charts, buoys, etc
    • Placement of buoys via the software on exact location based on latest seabed survey
    • Support of all AIS AtoN buoy types
    • Built-in quality control – NaviSuite Perio will listen for the buoy data and verify that it is received as it is sent
    • Easy control of transmission being on/off

    We use the AIS AtoN (Aid to Navigation) standard that allows for transmission of virtual object positions – in our case 250 or more buoys positioned in the software.

    The hardware items of a complete system solution as a minimum encompass AIS transponder, AIS antenna, antenna cable, mounting bracket, etc, thereby allowing for transmission of the buoys' positions from shore.

  • General visualisation tools

    General visualisation tools

    NaviSuite’s powerful visualisation features allow you to visualise maps and buoys in an intuitive interface.

    Learn more

    General visualisation features

    NaviSuite’s powerful visualisation features allow you to visualise maps and buoys in an intuitive interface.

    Multiple Map Views

    You can display different views simultaneously, so you can keep track of different information visually. Map Views can for example be a map showing your location, 3D visualisations viewed from different angles and visualisations of data from different sensors. Each individual Map View window can be configured separately, so you can make a Map View displaying virtually any information you require.

    Background Maps

    You can import existing third-party maps for example for line planning, navigation and procession quality control. Maps which can be displayed in NaviSuite include background maps from Web Map Service (WMS), geocoded images (for example geotiff), CAD drawings (for example DXF or DWG) and MicroStation drawings.

    Background Maps

    2D, 3D and side-view displays

    NaviSuite facilitates better data interpretation by making it easy for the user to quickly change the view displayed. Display options are 2D, 3D and side-view, as shown in the tool bar. Orientation can be user-defined, north up, vehicle up or line up.

    3D, 2D and side-view displays
  • Navigation and routes

    Navigation and routes

    NaviPac is an integrated navigation and data acquisition software solution that includes surface and subsea navigation, route and waypoint planning, live tracking and piloting.

    Learn more

    Navigation and routes features

    Navigation and data acquisition are integrated in this software solution. Efficiently and easily navigate surface and subsea vessels using intuitive tools to plan routes and waypoints, track or pilot a vessel and more.

    Display live position of a vehicle

    NaviSuite supports display of vehicle data based on the NaviPac data feed. You can display the main vessel along with one subsea vehicle, such as an ROV or ROTV, on an unlimited number of local and remote displays. The data can be shown graphically in multiple map views.

    Live position of multiple objects

    AIS tracks

    NaviSuite supports integration with AIS receivers. The data can be shown in a dedicated AIS window and overlaid in the NaviPac window. You can perform, read and utilise vessel dimension information.

    AIS tracks

    Display north-up, heading-up, route-up

    Each Map View can be designed and controlled individually when it comes to content, overlays and layout. Map Views can be 2D, 3D or side-views, and orientation can be user defined, north-up, vehicle up or line up.

    Display north-up, heading-up, route-up

    Distance to waypoint

    Waypoints are handled in a similar manner to runlines, as assignment of the waypoint is done in the Vehicle Control View. Hereafter, an artificial runline is created from the vehicle to the point and NaviPac monitors the range/bearing to the destination. and can a,.o. feed that into autopilots and DP systems.

    Distance to waypoint
  • NaviSuite Perio – virtual buoys

    NaviSuite Perio – virtual buoys

    NaviSuite Perio provides the possibility of replacing marker buoys with virtual buoys that are managed via a software user interface.

    Learn more

    NaviSuite Perio – virtual buoys features

    NaviSuite Perio provides the possibility of replacing marker buoys with virtual buoys that are managed via a software user interface.

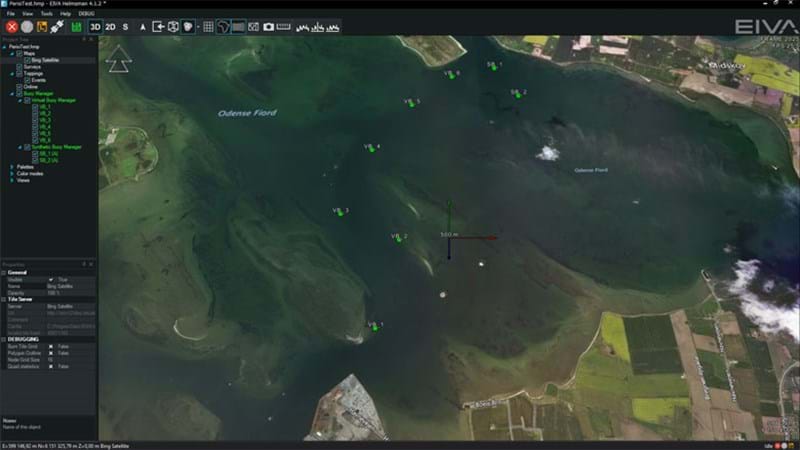

    Define buoy location

    Planning of the buoy location is done in the NaviPac Helmsman’s Display (or NaviModel), where you place the buoys graphically on top of charts, drawings or terrain models – or import/enter location as grid or geographical coordinates.

    Define buoy location

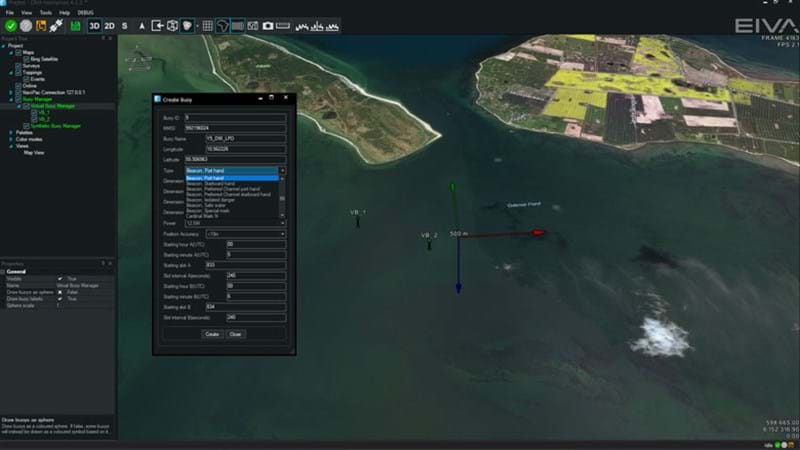

    Define buoy type (AtoN types)

    NaviSuite Perio supports the standard 31 types of buoys. Based on the selected type the operator defines additional parameters as well, including dimension, direction around them, communication control etc.

    Define buoy type (AtoN types)

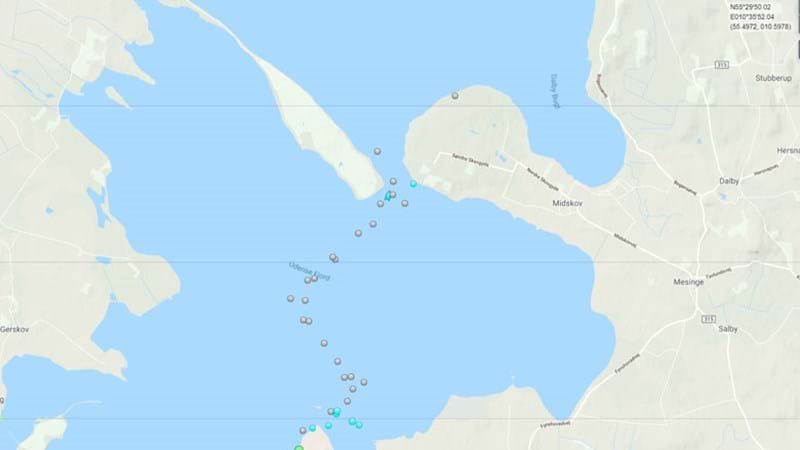

    Broadcast buoys as AIS AtoN

    NaviSuite Perio will send out AIS signals via radio using the standard communication protocol. This means that any vessel or land station with an AIS receiver will be able to receive and use the information no matter which solution they have. Image courtesy of Marine Traffic.

    Broadcast buoys as AIS AtoN

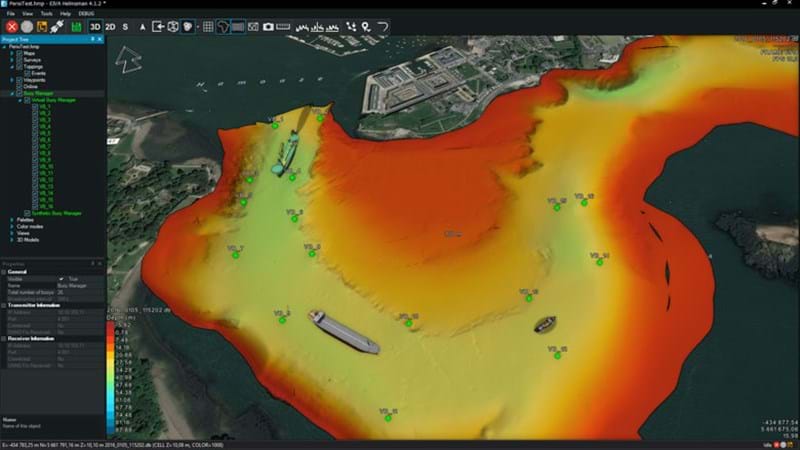

    Show buoys in 3D in HD

    If using NaviPac onboard the receiving vessel, you may display the buoys in the standard NaviPac 4 Helmsman’s Display together with NaviPac vehicles, live AIS tracking vessels and the charts and terrain data in 2D/3D.

    Show buoys in 3D in HD

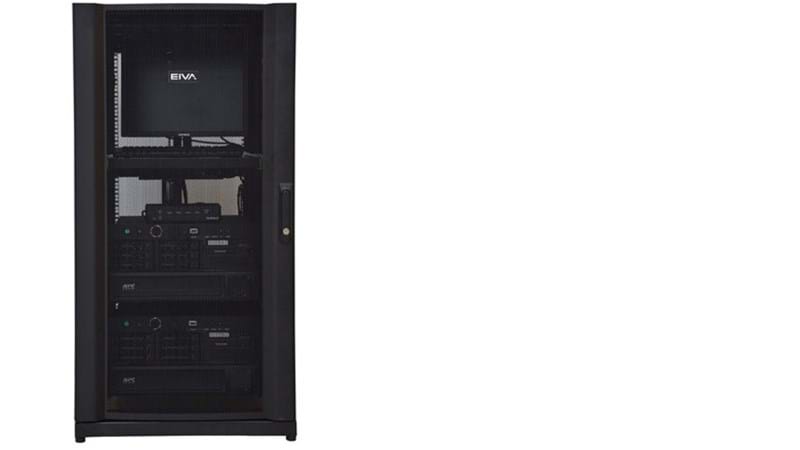

    NaviSuite Perio rack

    NaviSuite Perio can be supplied as a single or redundant system with all included from computer, software, radio and connection to antennas.

    NaviSuite Perio rack
  • Optional extra services and special offers

    Optional extra services and special offers

    EIVA offers a number of services for our NaviSuite software users.

    Learn more

    Optional extra services and special offers

    Get the most out of your software

    EIVA offers a number of services for our NaviSuite software users. These include:

    Also, we have a number of special offers:

Product comparison

When purchasing an annual subscription of the NaviSuite Perio software, one of the following hardware add-on packages must be purchased as well:

 NaviSuite Perio
 – Transceiver and antenna

NaviSuite Perio

 – Single computer
NaviSuite Perio
 – Single rack
NaviSuite Perio
 – Single rack and spares​
NaviSuite Perio software licenceNot includedNot includedNot includedNot included

EIVA AIS transceiver

xxxx2
AIS antennaxxxx2
GPS antennaxxxx2
100 m antenna cable and standard mounting bracketsxxx x2
Small form factor desktop computer, keyboard, mouse, FullHD display x
EIVA software installed and configured xxx
Rack with built-in display, keyboard, etc  xx
Industry rack computer  x x2
UPS rack unit  xx


Please note that computer, power and mounting of antenna are not included

Please note that power and mounting of antenna are not included

Please note that power and mounting of antenna are not included

Please note that power and mounting of antenna are not included
