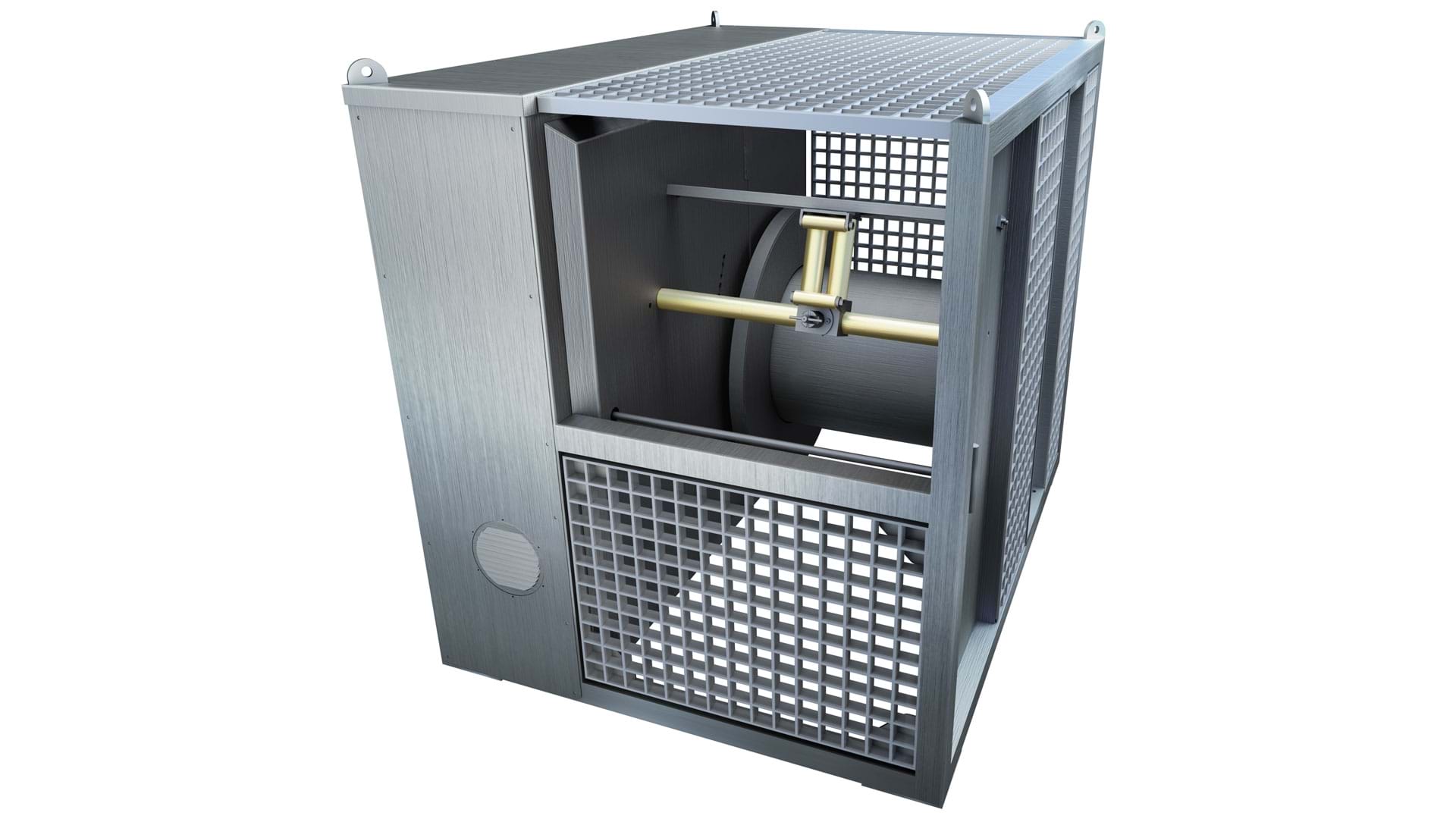

High-quality and cost-effective electrical winch for deployment of oceanographic and hydrographic equipment

Whether you are looking to tow sonars, magnetometers, etc, or to vertically deploy equipment such as ADCPs, CTDs and the like, the OceanEnviroTM product range will fit your exact needs.

The OceanEnviroTM has a product range which offers you six different high-quality and cost-effective winches, so by choosing the exact size and features you want, you save both money and deck space. In addition to the 2.5 model you see here, the following OceanEnviro models are available:

You already have products in your My EIVA basket

This product cannot be added to your basket as you already have products in your My EIVA basket.

56,595.00excl VAT, excl shipping fee
Get in touch
Delivery time: To be confirmed upon order

Key features and benefits

  • Cost-effective solution tailored to your needs

    Cost-effective solution tailored to your needs

    By choosing the exact size and features you want, you save both money and deck space.

    Learn more

    Cost-effective solution tailored to your needs

    The OceanEnviroTM product range offers you maximum tow cable lengths ranging from 600 metres to 3,400 metres, drum diameters from 250 millimetres to 490 millimetres, and motor power from 1.5 kilowatts to 10.4 kilowatts – just to mention a few of the options available through the six models.

    The combination of an electronic level wind and a slip ring unit for the tow cable makes for better winch performance and minimum wear and tear. The frame and plate components protecting the winch are made of AISI 316 marine stainless steel, which vastly reduces the risk of corrosion. This means that by choosing an OceanEnviroTM winch you get a cost-effective solution.

    Product with proven track record

    The OceanEnviroTM is the new generation of winches manufactured by Sepro Technology AS. The product range is the result of a partnership between winch specialist Sepro Technology AS and EIVA, whose combined expertise selling hundreds of winches guarantees you a proven product, optimised with the newest technology.



  • Looking for a complete solution?

    Looking for a complete solution?

    With our wide range of optional extras, we can offer you all the components of a complete winch solution for oceanographic and hydrographic surveys, from A-frames to sheaves and tow cable to a service kit.

    Learn more

    Looking for a complete solution?

    With our wide range of optional extras, we can offer you all the components of a complete winch solution for oceanographic and hydrographic surveys, from A-frames to sheaves and tow cable to a service kit.

    By combining the standard components of the OceanEnviroTM solution with a wide range of optional extras, we offer you all the components of a complete winch solution for your next oceanographic or hydrographic survey task.

    Standard components

    • Electrical level wind with speed/metre counter
    • PLC control
    • Remote control, 4" touch screen, incl 10 m deck cable
    • Electrical slip ring
    • AISI 316 marine stainless steel frame and plate components
    • Fibre security grating
    • Truck lift pockets (OceanEnviroTM 10.4 and 10.4 LV only)
    • Crane lift points
    • Tarpaulin for storage


    Optional extras

    • Tow cable
    • Tow cable termination
    • Longer deck cable for remote control
    • Sheave
    • A-frame
    • Active winch control via ethernet communication
    • External output of cable length via ethernet communication
    • Service kit with wear parts


    Services available

    • Spooling of cable onto winch
    • Moulding and mounting of cable termination



Specifications

Safety
The electrical installations and security grating are CE-approved.
 Standard
Overall dimensions
Depth1,110 mm





Height

988 mm

Width

1,050 mm
Drum diameter400 mm
Flange diameter700 mm
Drum length443 mm
Performance High speed
Pull on first layer3.5 kN1.75 kN
Pull on top layer2.2 kN1.1 kN
Speed on first layer 0–36 m/min0–71 m/min
Speed on top layer0–56 m/min0–111 m/min
Motor size2.2/2.5 kW
Power consumption440 V – 60 Hz – 11 Amp
Weight approx415 kg
Construction structural materialAISI 316
Prepared for Focal model 180Yes
Remote control IP 564" Siemens touch screen
Level windElectrical
Cable status infoIncl in the remote control package
Other
Tarpaulin for storageYes/No
Cable diameter [mm]Max cable length [m] without shells (max 13 layers)Efficient working length [m] without shells* Max efficient cable length [m] with shells**
6.4***1,2501,1502,450
8.21,0501,0001,500
11.4700650
* First layer locked to maintain good spooling ability
** The amount of cable is exceeding safe working load
*** Smaller wire diameter than 10 mm will result in reduced safe working load
