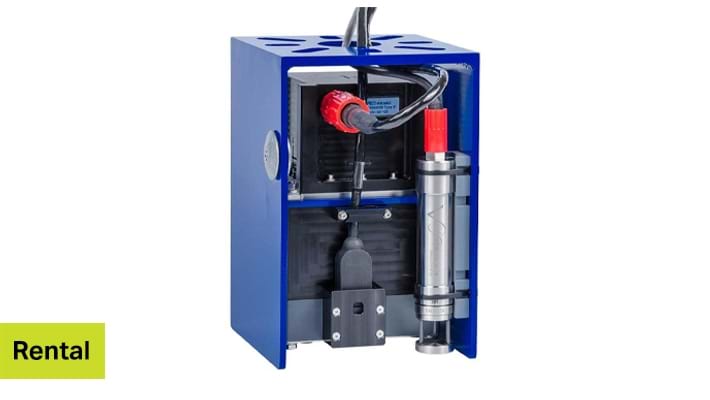

Wideband multi-beam echo sounder system with I2NS Type III (OEM Applanix SurfMaster GNSS/INS technology).

The Sonic 2020 from R2Sonic is the most compact high-performance wideband shallow water multi-beam echo sounder, suitable for a wide variety of general mapping applications.

The Sonic 2020 provides user-selectable operating frequencies between 200 kHz and 400 kHz and the additional UHR option 700 kHz.

Features

• Ultra-compact and low-cost
• Wideband 200 kHz – 400 kHz
• UHR 700 kHz
• Beam widths 1.8˚ x 1.8˚ @ 450kHz, 1˚ x 1˚ @ 700kHz
• 1024 independent soundings per ping
• Selectable swath 10° to 130°
• Sounding depth up to 200 m+
• Embedded processor/controller
• Full coverage up to 11 knots
• Low weight, volume and power consumption

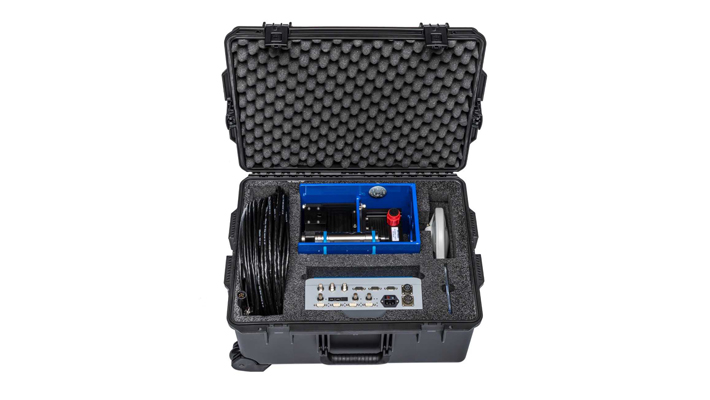

• All components in a single portable transport case
• Valeport miniSVP (sound velocity probe) installed
