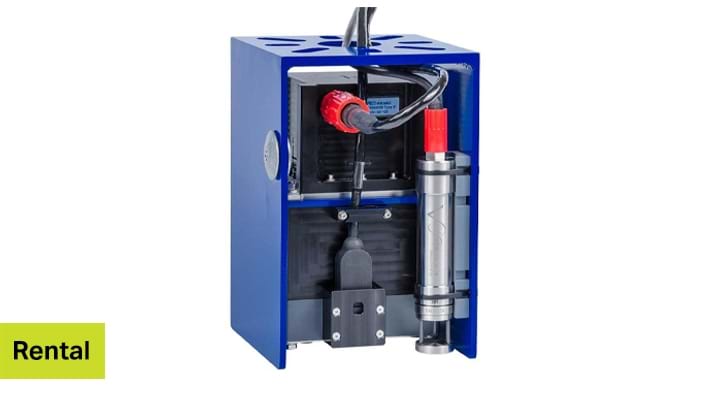

Wideband multi-beam echo sounder system with I2NS Type III (OEM Applanix SurfMaster GNSS/INS technology).

The Sonic 2020 from R2Sonic is the most compact high-performance wideband shallow water multi-beam echo sounder, suitable for a wide variety of general mapping applications.

The Sonic 2020 provides user-selectable operating frequencies between 200 kHz and 400 kHz and the additional UHR option 700 kHz.

Features

  • Ultra-compact and low-cost
  • Wideband 200 kHz – 400 kHz
  • UHR 700 kHz
  • Beam widths 1.8˚ x 1.8˚ @ 450kHz, 1˚ x 1˚ @ 700kHz
  • 1024 independent soundings per ping
  • Selectable swath 10° to 130°
  • Sounding depth up to 200 m+
  • Embedded processor/controller
  • Full coverage up to 11 knots
  • Low weight, volume and power consumption

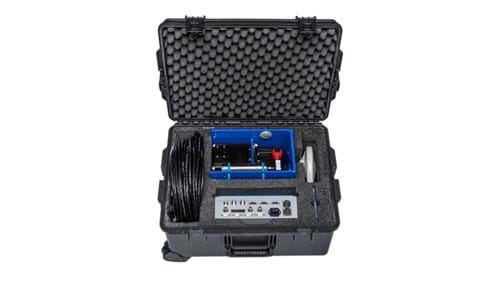

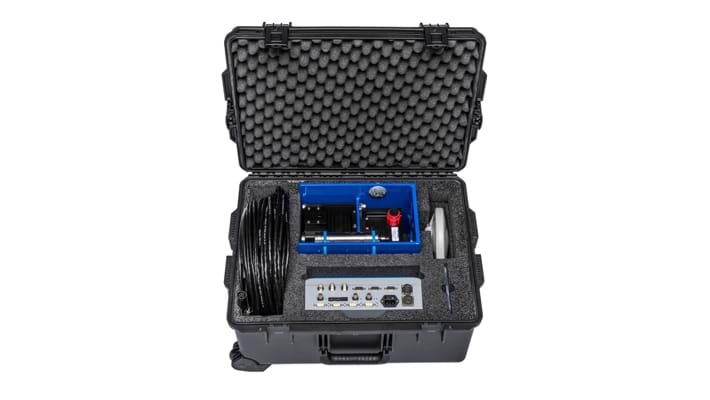

  • All components in a single portable transport case
  • Valeport miniSVP (sound velocity probe) installed
