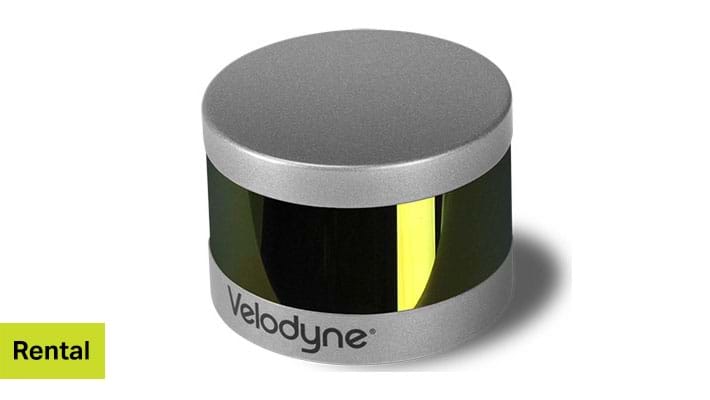

The Velodyne VLP-16 is a small, advanced and cost-effective 3D LiDAR sensor. It allows for real-time, 360°, 3D distance and calibrated reflectivity measurements.
It weighs only 860 grams and has a compact footprint of ~Ø 103 millimetres x 72 millimetres. The lack of visible rotating parts means that it is highly resilient in challenging environments.
The VLP-16's dual return capability makes it the ideal choice for surveys carried out with UAVs and other mobile platforms.
Features
- Low power consumption (~8 W)
- Design that protects the sensor
- Dual returns
- 16 channels
- 100-metre range
- 300,000 points per second
- 360° horizontal field of view
- ± 15° vertical field of view
Please note: The Velodyne VLP-16 is installed on one of our small USVs and is not available for stand-alone rental. For more info on the USVs in the EIVA rental pool, please contact rental@eiva.com.
