  • Trimble SPS585 GNSS Smart antennas  - Base and heading unit
  • Trimble SPS585 GNSS Smart antennas  - Base and heading unit

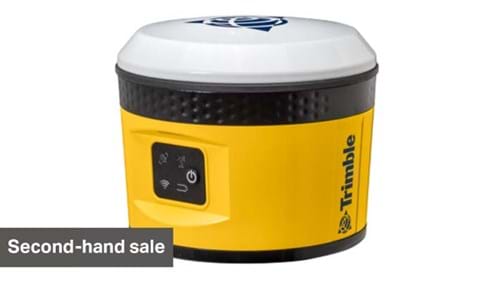

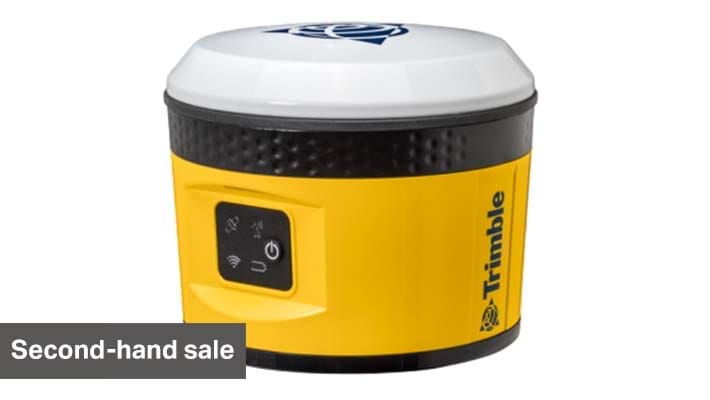

The SPS585 GNSS smart antenna incorporates a GNSS antenna, receiver, Wi-Fi Access Point, and battery in a rugged light-weight magnetic-mounted unit that is ideally suited for vehicle and polemounted applications. LEDs enable you to monitor position tolerance, correction status, Wi-Fi, Bluetooth wireless technology, and power. Wi-Fi and Bluetooth wireless technology provides cablefree communications between the receiver and the device (such as a tablet, smartphone, or laptop).

You can use the SPS585 GNSS smart antenna as part of an RTK GNSS system with the Trimble SCS900 Site Controller and the Trimble SitePulse™ software.


The SPS585 GNSS smart antenna has the following features:

  • 10 cm (0.34 ft) horizontal and vertical precision when using RTK or RTX corrections
  • Supported by version 1.0 of the SitePulse™ field software and version 3.41 of the SCS900 software
  • CenterPoint® RTX ready; just purchase a subscription
  • Small, lightweight design – 0.73 kg (1.62 lb) (GNSS receiver, GNSS antenna, and battery)
  • Integrated magnets for mounting on a vehicle roof or pole top mounting bracket.
  • USB power cable and chargers included
  • Fully functional out-of-the-box, with dual-frequency GNSS tracking (GPS, GLONASS, BeiDou, and Galileo)
  • Trimble xFill™ RTK service is already installed.
  • 220-channel GNSS tracking (all available constellations)
  • Internal, rechargeable, smart Lithium-ion battery provides more than four hrs GPS rover operation per charge
  • Bluetooth wireless technology for cable-free, no-hassle operation with the SCS900 or SitePulse field software
  • Simple keypad with on/off key and LED indicators for power, corrections, communications, and position
  • 5 Hz update rate
  • Operates within a VRS network or IBSS for conventional base station-free rover capability

Integrated Bluetooth and Wi-Fi l Two SBAS channels l RoHS compliant
