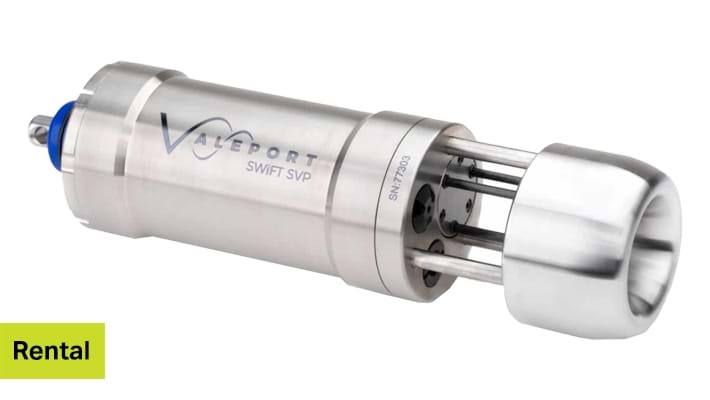

Valeport SWiFT SVP

Supplier:
Valeport
Product no :
V.037.SwiftSVP-R

Designed for coastal, harbour and inland hydrographic survey use, the SWiFT sound velocity profiler (SVP) makes a seamless workflow a reality in a compact, robust and portable package. Rated to 500 m as standard with 0.01% FS accuracy, it has integral GPS to geo-locate every profile.

This new compact unit features high accuracy SV, Pressure and Temperature, as well as integral GPS, rechargeable battery and LED status indications for GPS, battery and communications.

Data can be easily and quickly downloaded and reviewed wirelessly, via Bluetooth®, using Valeport’s new Ocean software for Windows and ConnectPathway Edition for iOS and Android. Data can then be instantly shared in industry-standard data formats through email and cloud services.

Battery endurance is up to a week with easy charging via USB. A USB cable and Bluetooth adapter are provided.

Specifications

Sound velocity
Range 1,375 – 1,900 m/s
Resolution 0.001 m/s
Accuracy ±0.02 m/s
Pressure
Range 50 Bar
Resolution 0.001% FS
Accuracy ±0.01% FS
Temperature
Range -5°C to +35°C
Resolution 0.001°C
Accurancy  ±0.01°C

Calculated parameters and accuracies

Calculations based on Valeport’s proprietary DASH formula
Conductivity ±0.05 mS/cm
Salinity

±0.05 PSU

Density ±0.05 kg/m³

Physical


Materials Titanium, stainless steel deployment weight
Depth rating 500 m
Dimensions ø78 mm x Length 264 mm
Weight 2.0 kg (in air) / 0.9 kg (in water) |3.0 kg (in air) / 1.8 kg (in water) with deployment weight
Communications

(set up and data offload)

Bluetooth v4 (low energy)

USB Serial

Electrical


Battery Internal rechargeable Li-ion battery pack
Battery life Up to 5 days operations
Charging USB typically, 1 hour fast charge will give 12 hours operation
