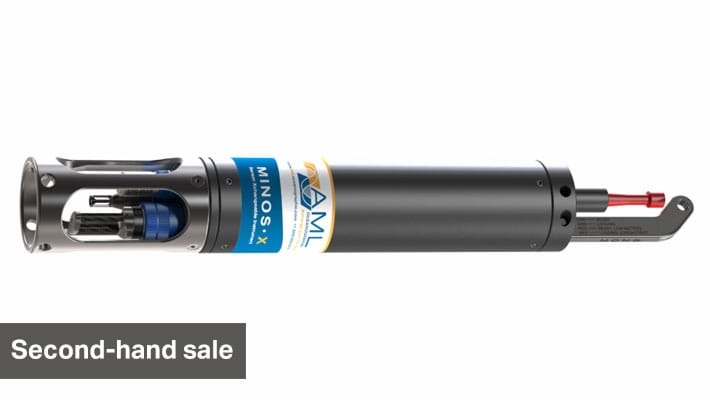

Minos•X CTD/SVP sensor, 1,000 m Delrin housing

Second-hand sale
Product no :

Minos•X from AML is a small vertical profiler that allows you to change the instrument’s sensor load in the field and on demand. With Minos•X, your SVPT can become a CTD – shallow pressure sensors can be swapped for deep pressure sensors – and temperature range can be extended or tightened as needed. One single profiler meets multiple deployment requirements. Xchange™ sensors must be ordered separately.

This version of Minos•X includes a pressure housing made of Delrin, with a maximum depth of 1,000 metres. Actual usage depth will be limited by the lower of the maximum depth ratings of the Minos•X housing (1,000 metres) and the sensor that is chosen by the purchaser.

Half the size of a Plus•X instrument, Minos•X is designed for vertical profiling in tight spaces like launches or boats. The instrument includes a shackle, sensor cage, built-in rechargeable battery and LED status indicator to simplify deployment preparation. High-speed 25-Hz sampling ensures excellent data resolution. Minos•X can be ordered with up to two additional analogue channels or one additional digital channel, for use with remote sensors.

Like all other X•Series instruments, Minos•X uses Xchange™ field-swappable sensors, now available for conductivity, sound velocity, temperature, pressure, dissolved oxygen and turbidity. This means that sensor heads can be shared with other instruments, regardless of instrument size or type. Total flexibility of instrument model, sensor type, and sensor range ensures that the right instrument is always available.

Field-swappable sensors also streamline recalibration – instead of sending the entire instrument back to a recalibration centre, calibrated sensor heads can be sent to the instrument. Changing sensors is easy – simply unscrew one sensor head and replace it with another.


  • Field-swappable sensor heads
  • Data logger / self-powered
  • In situ deployments
  • Vertical profiling (shallow), vertical profiling (deep)
  • Maximum deployment depth varies depending on housing material and sensor payload


  • Greater return on investment – each instrument can multi-task as CTD or SVTP, at multiple pressure ranges, assuring greater usage
  • Right instrument always ready – calibrated sensors are shared amongst all X•Series instruments, ensuring that the right instrument is always field-ready
  • Reduced downtime – recalibrated sensors sent to the instrument means the instrument never leaves the field for recalibration
  • Reduction in transport and logistics costs – instruments can be recalibrated without return to a calibration centre
  • Greater system redundancy – mobility of sensor heads and modularity of instruments minimizes the risk of downtime on the vessel
  • Streamlined management – less time spent administering instrument recalibration and certification requirements
