  • VideoRay Mission Specialist Defender
  • VideoRay Mission Specialist Defender

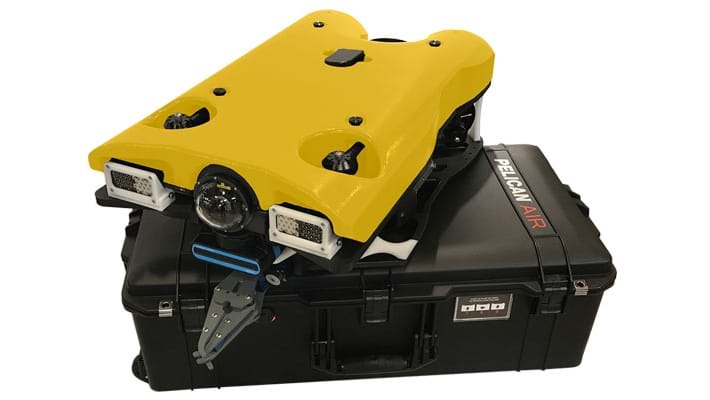

The VideoRay Mission Specialist Defender ROV (remotely operated vehicle) utilises a system of interchangeable, modular components that communicate through a single, intelligent network. The highly flexible and customisable platform of the VideoRay Mission Specialist Defender can be easily adapted to target specific missions.

The VideoRay Mission Specialist Defender provides you with a flexible system that can replace vehicles much larger and more expensive to purchase, deploy and maintain.

Features

  • 6 degrees of freedom including auto attitude (eg depth, heading, pitch and roll)
  • High lifting capability with payload up to 23 kg
  • The modular design allows thruster, cameras, sensors and tooling to be added, removed or replaced easily
  • The ROV only weighs 18 kg in air
  • LED lighting

Specifications

  • Depth rating: up to 1,000 m (3,281 ft)
  • ROV dimensions: 75.16 x 39.37 x 26.67 cm
  • Total system weight: 29.4 kg (65 lb)  – Sub and panel
  • 4 vectored horizontal thrusters
    • Forward: 26.7 kg (59 lb)
    • Reverse: 15 kg (33 lb)
    • Lateral: 8.6 kg (19 lb)
  • 3 vertical thrusters
    • Up: 23.1 kg (50.9 lb)
    • Down: 12.9 kg (28.4 lb)
